Auxiliary Air Valve (Idle Speed)
Auxiliary Air Valve (Idle Speed)

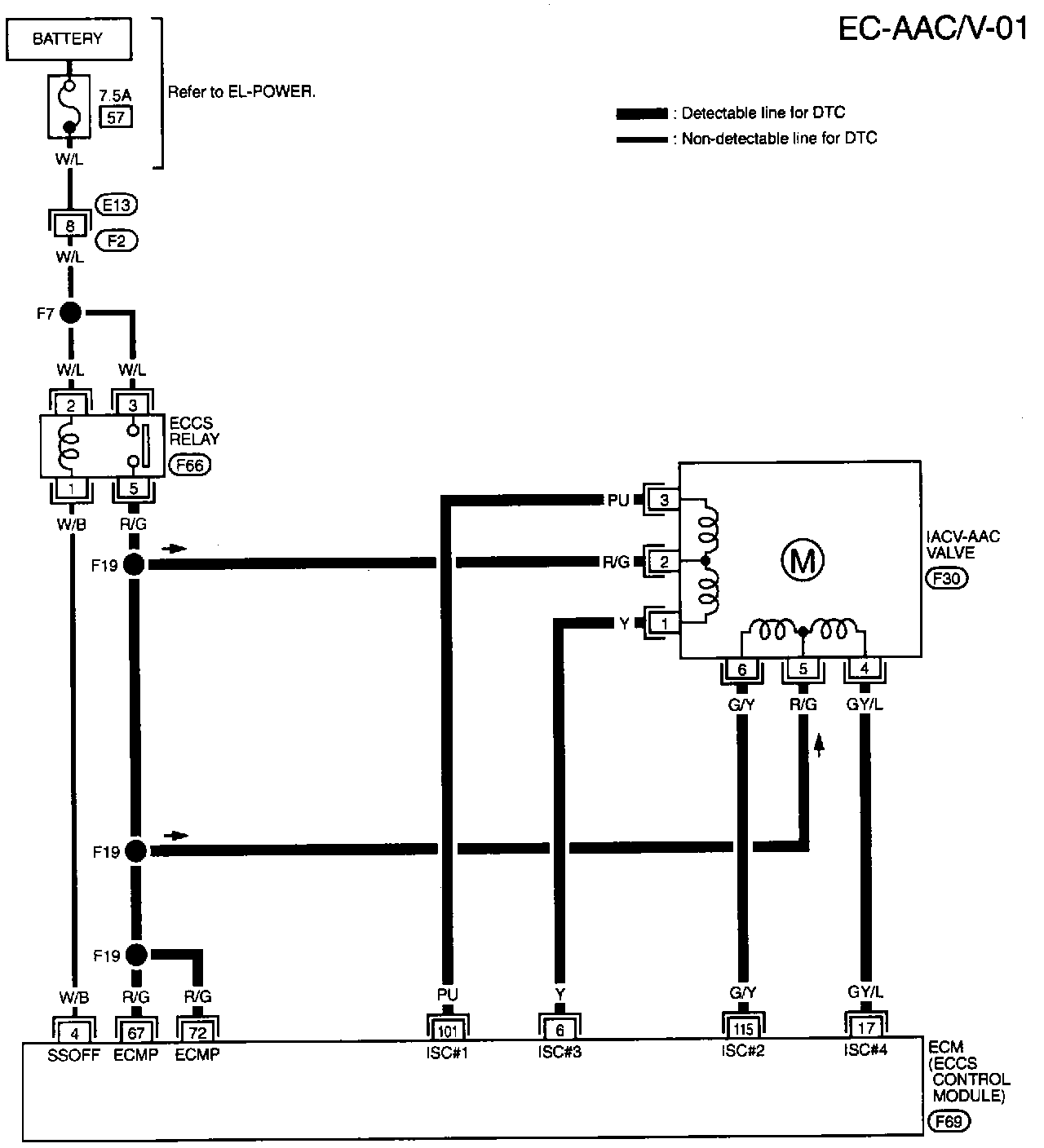

EC-AAC/V-01 Idle Air Control Valve (IACV)-Auxiliary Air Control (AAC) Valve (DTC: P0505):
