Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1997
>>
Q45 V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Power Steering Pressure Switch
Power Steering Pressure Switch

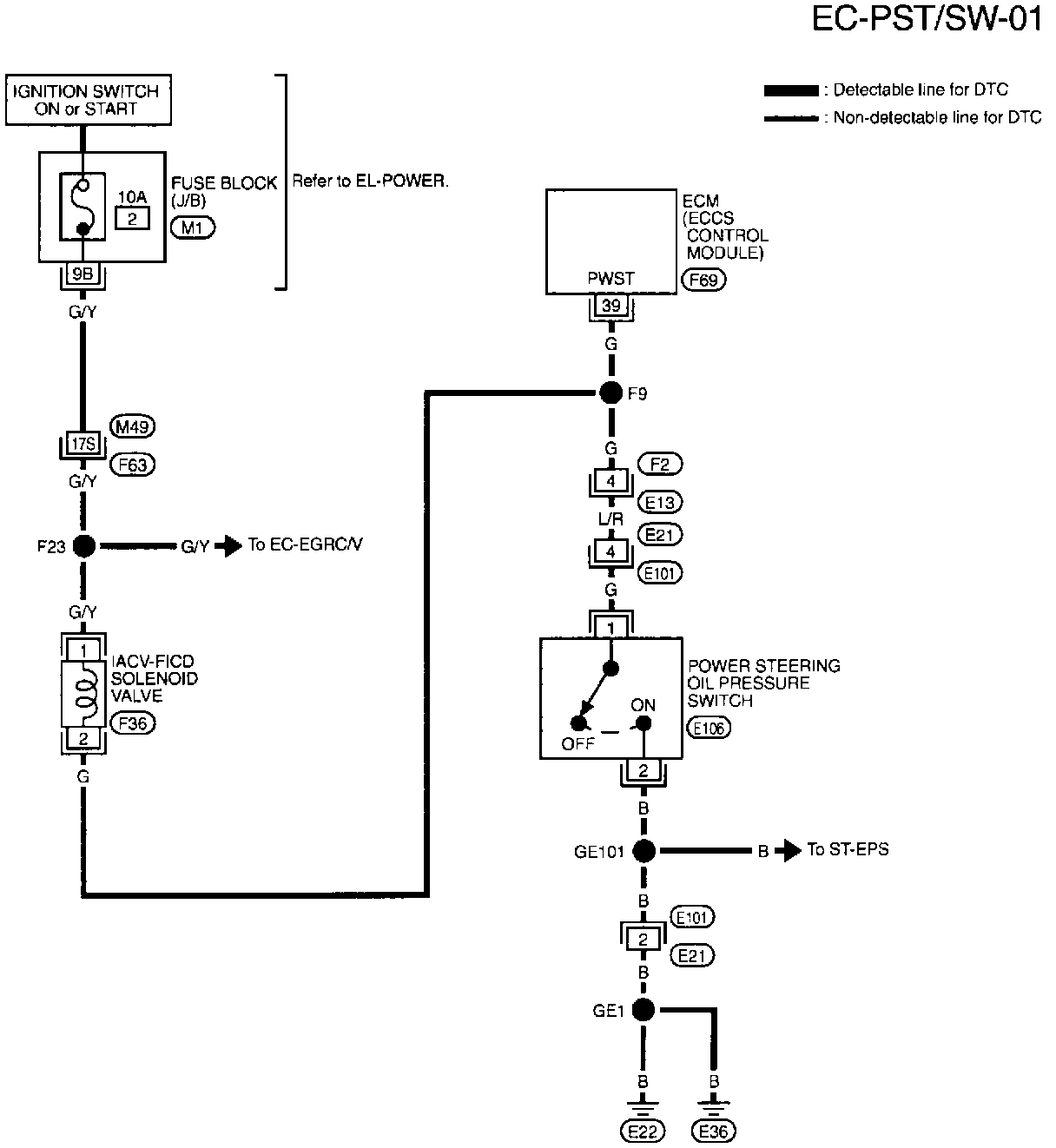

EC-PST/SW-01 Power Steering Oil Pressure Switch:
