Seat Temperature Element
Seat Temperature Element

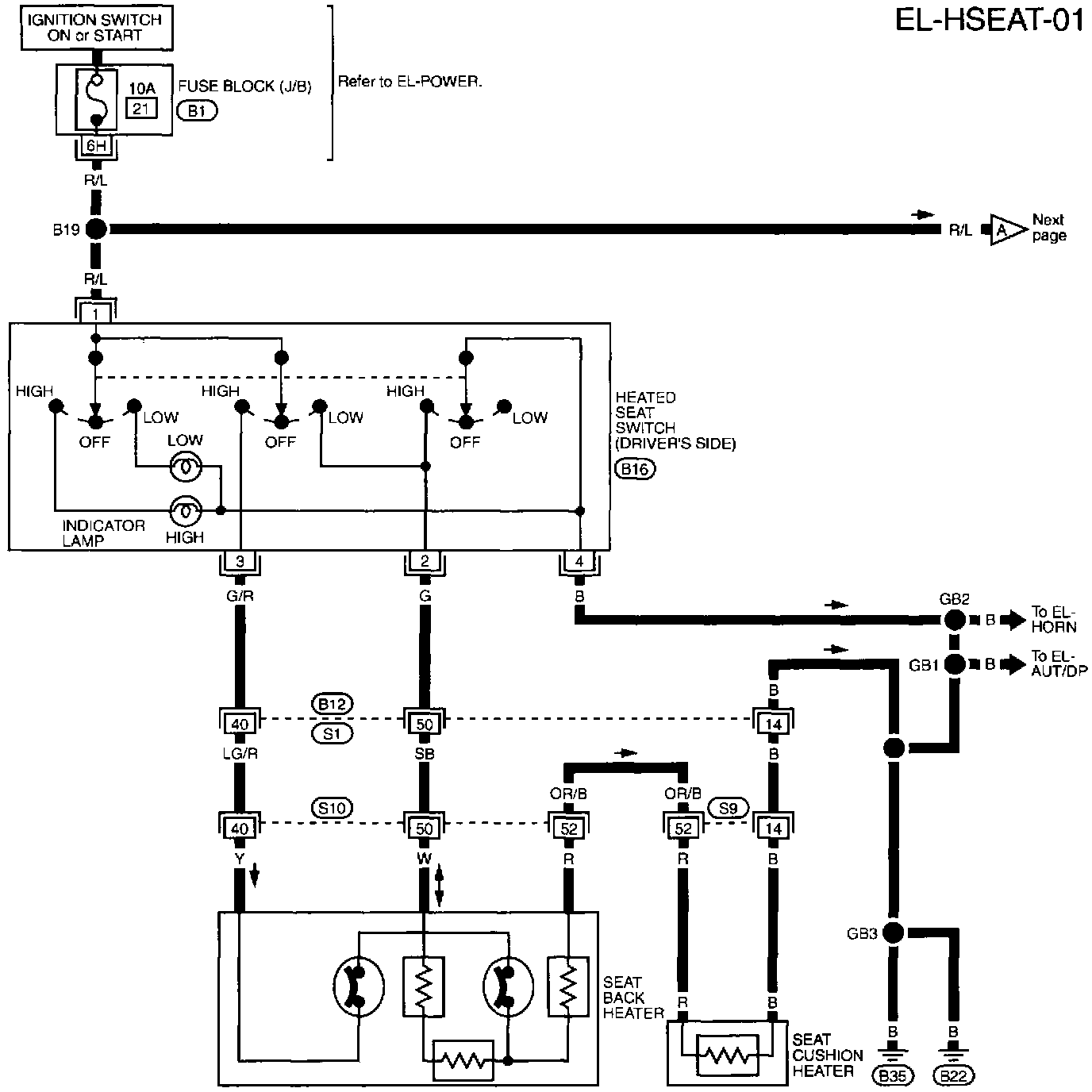

EL-HSEAT-01 Heated Seat (Part 1 Of 2):
EL-HSEAT-02 Heated Seat (Part 2 Of 2):
