Trunk / Liftgate
Trunk / Liftgate

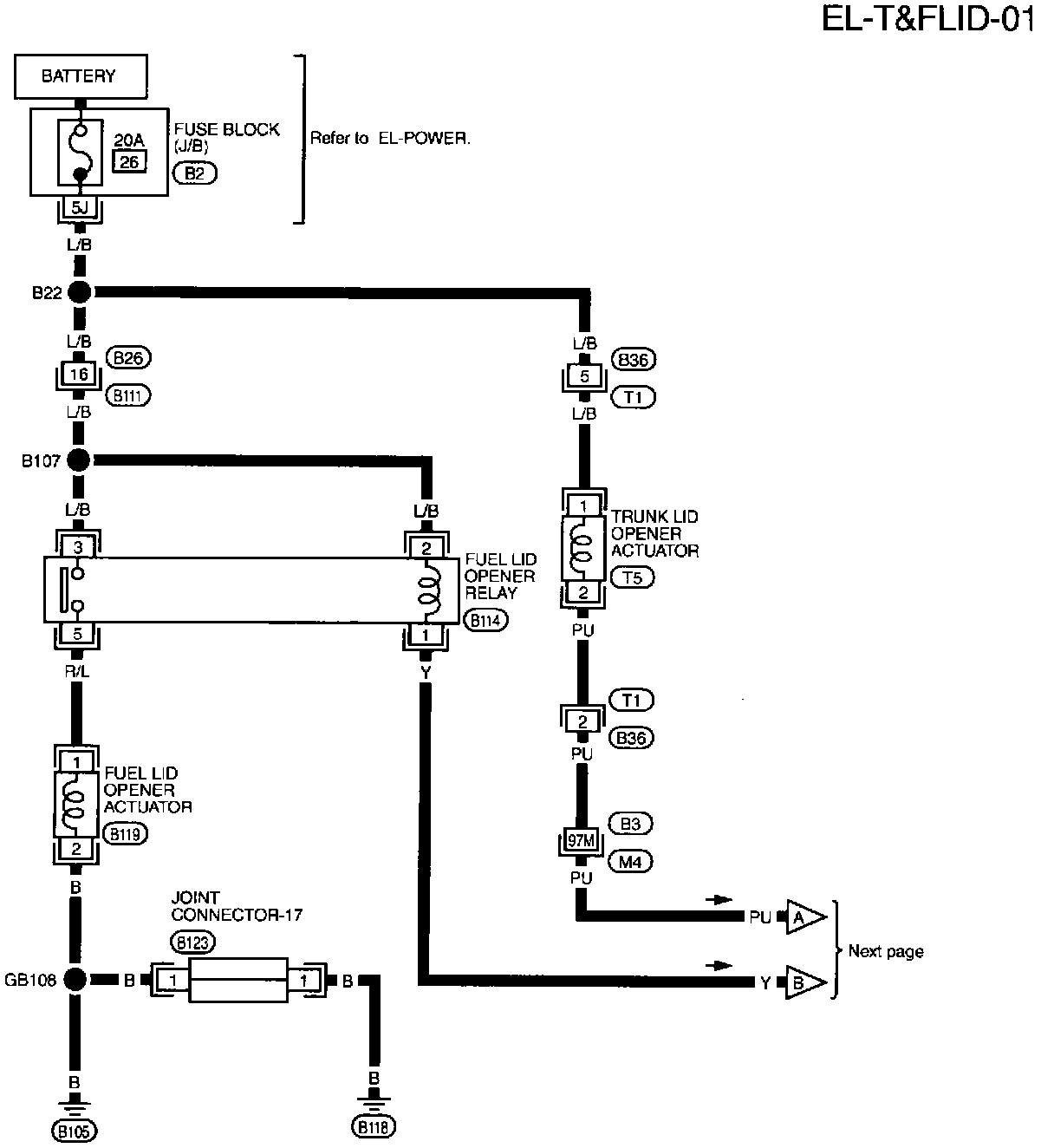

EL-T&FLID-01 Trunk Lid And Fuel Filler Lid Opener (Part 1 Of 2):

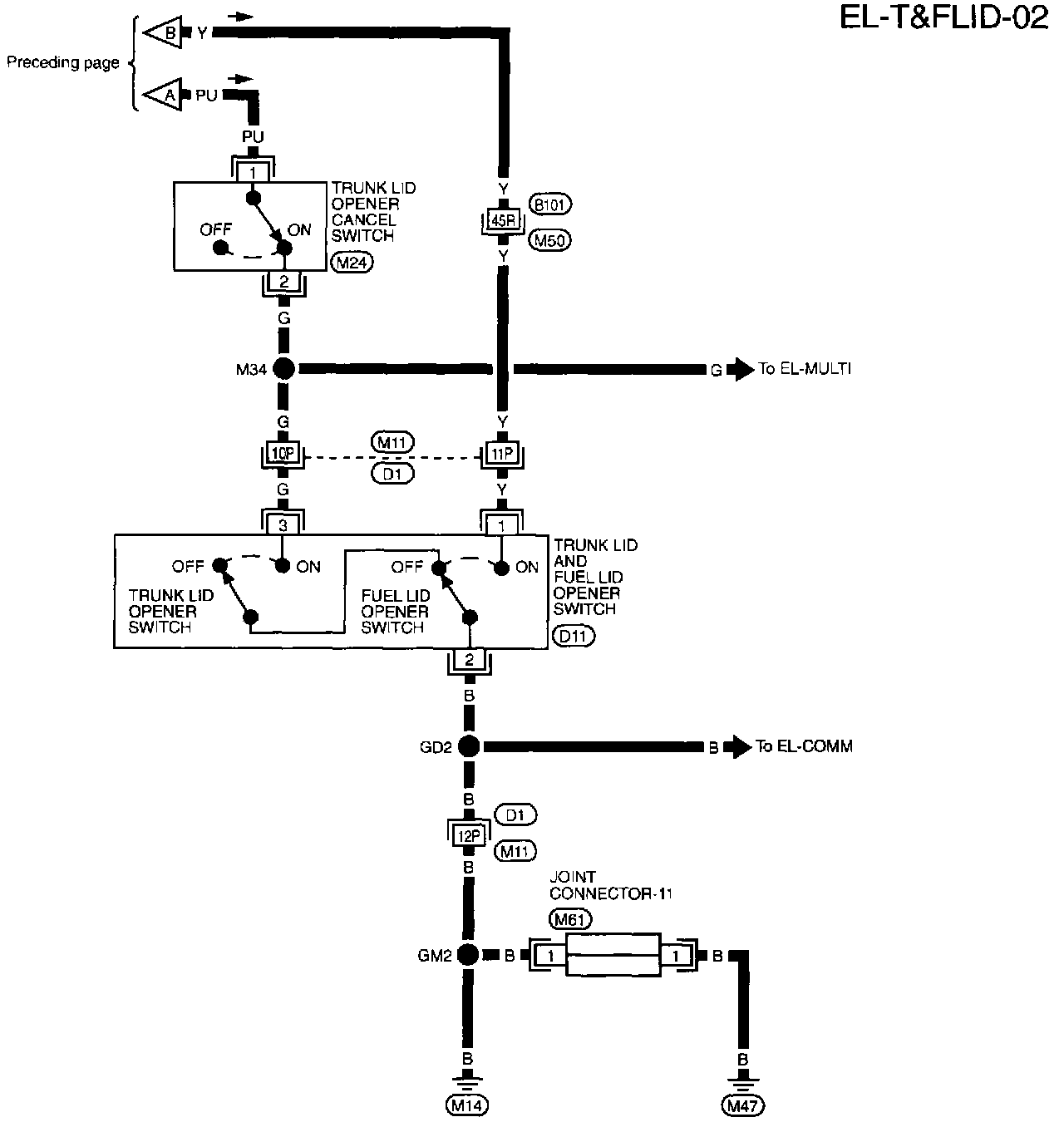

EL-T&FLID-02 Trunk Lid And Fuel Filler Lid Opener (Part 2 Of 2):
