Home >> Infiniti >> 1997 >> Q45 V8-4130cc 4.1L DOHC MFI (VH41) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Parking Pawl, A/T

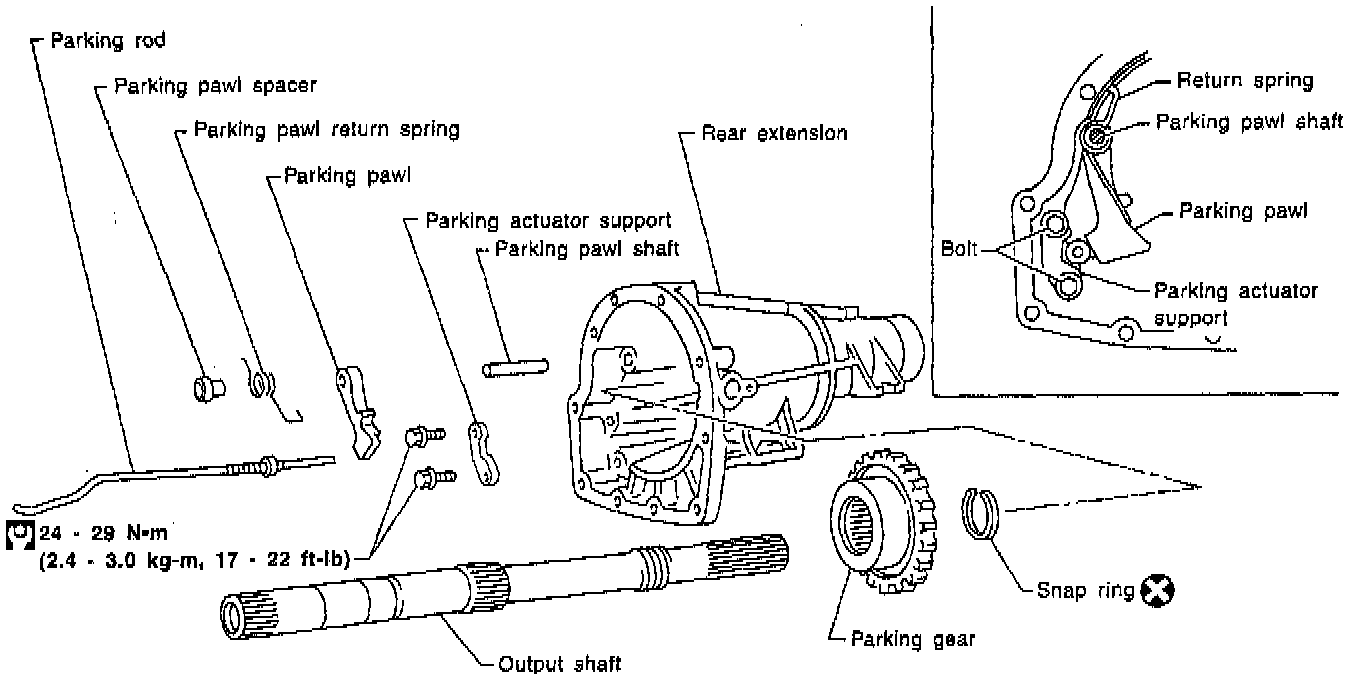

Parking Pawl, A/T
