Home >> Infiniti >> 1997 >> Q45 V8-4130cc 4.1L DOHC MFI (VH41) >> Repair and Diagnosis >> Diagrams >> Harness >> Front Door Harness >> Driver Side

Driver Side

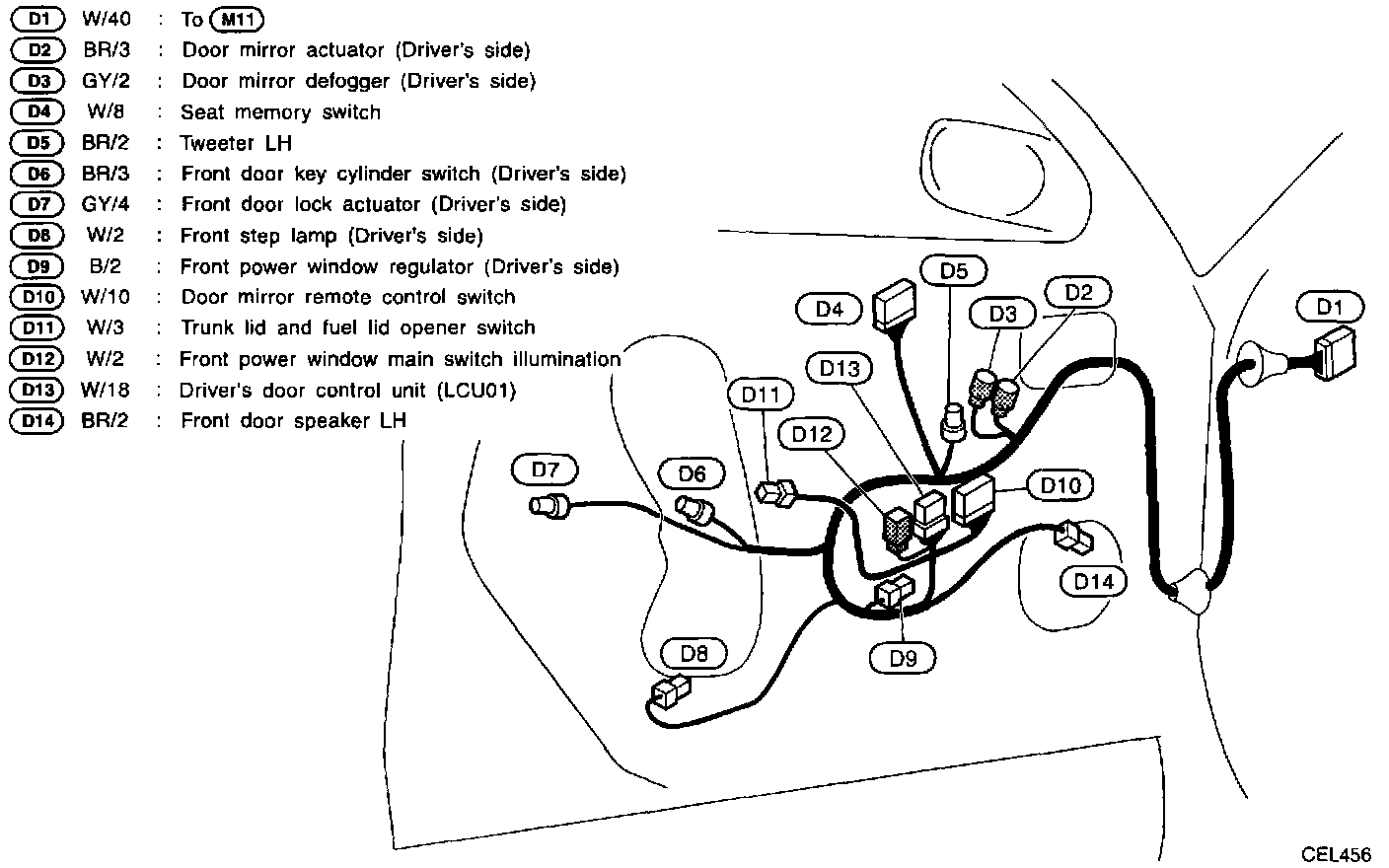

Front Door Harness-Driver's Side:
