Control Assembly: Adjustments

MODE DOOR
1. Install mode door motor to heater unit and connect it to body harness.
2. Attach mode door motor rod to side link holder.

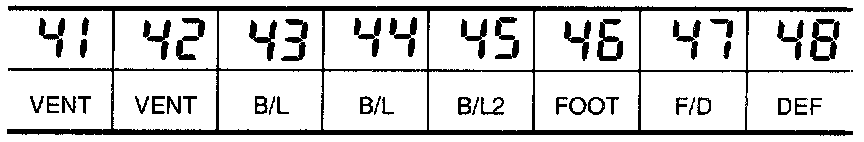

3. Check mode door operates properly when changing code No. 41 to 48 by pushing (DEF) switch.










AIR MIX DOOR

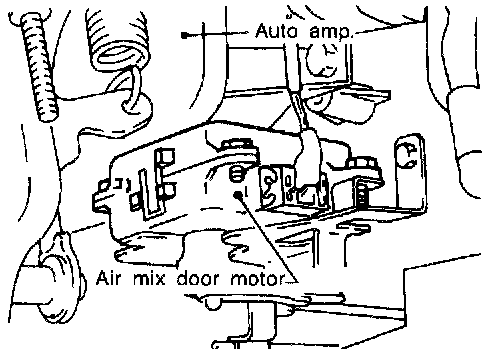

1. Install air mix door motor to heater unit and connect it to body harness.
2. Set up code No. 41 in Self-diagnosis STEP 4.
3. Move air mix door lever by hand and hold it at full cold position.

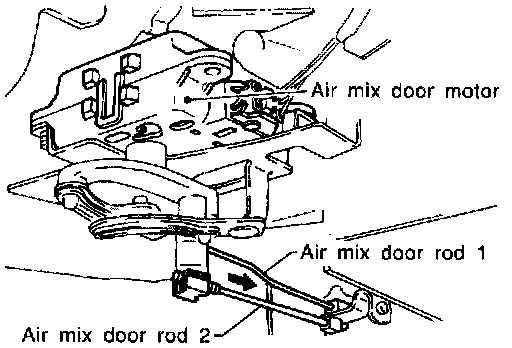

4. Attach air mix door rod 1 to rod holder.
5. Push air mix door rod 2 in arrow direction.
6. Check air mix door operates properly when changing code No. 41 to 48 by pushing (DEF) switch.







INTAKE DOOR

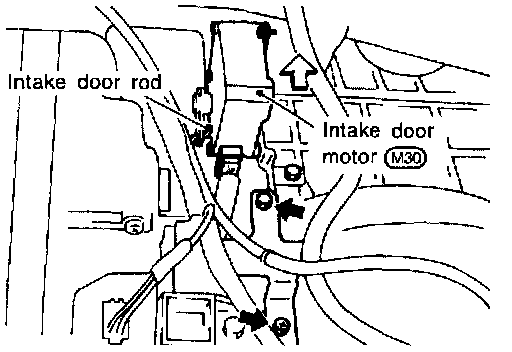

1. Install intake door motor to intake unit and connect it to body harness.
2. Set up code No. 41 in Self-diagnosis STEP 4.
3. Move intake door link by hand and hold it at REC position.
4. Attach intake door lever to rod holder.

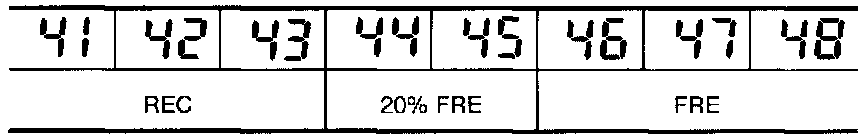

5. Check intake door operates properly when changing code No. 41 to 48 by pushing (DEF) switch.







BI-LEVEL DOOR
1. Install bi-level door motor to heater unit and connect it to body harness.
2. Set up code No. 41 in Self-diagnosis STEP 4.
3. Move water valve rod by hand and hold it at closed position.
4. Attach water valve rod to rod holder.

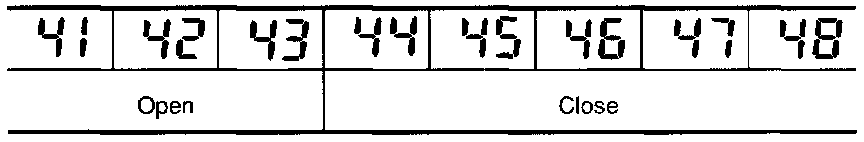

5. Check bi-level door operates properly when changing code No. 41 to 48 by pushing (DEF) switch.







REAR VENTILATOR DOOR

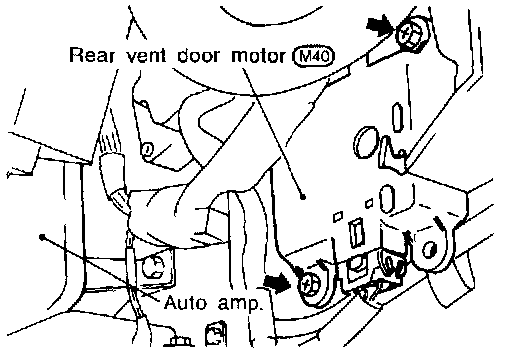

1. Install rear ventilator door motor to heater unit and connect it to body harness.
2. Set up code No. 41 in Self-diagnosis STEP 4.

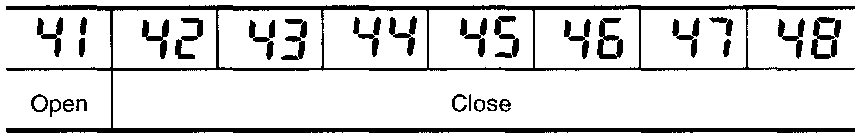

3. Check rear ventilator door operates properly when changing code No. 41 to 48 by pushing (DEF) switch.
