Control Assembly: Testing and Inspection

INSPECTION OF AUTO AMP.




^ Measure voltage between each terminal and body ground by following "AUTO AMP. INSPECTION TABLE".

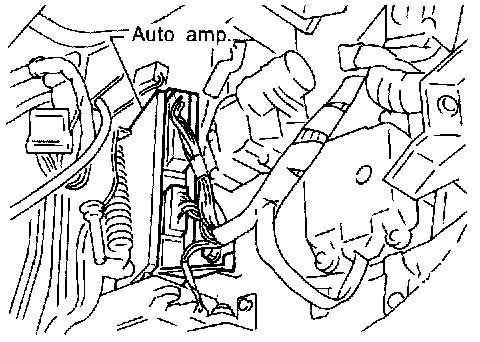

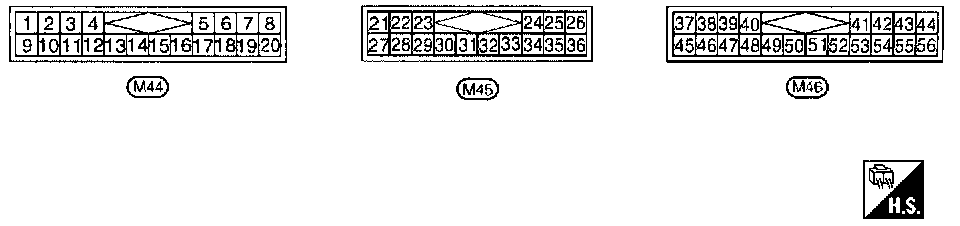

^ Pin connector terminal layout

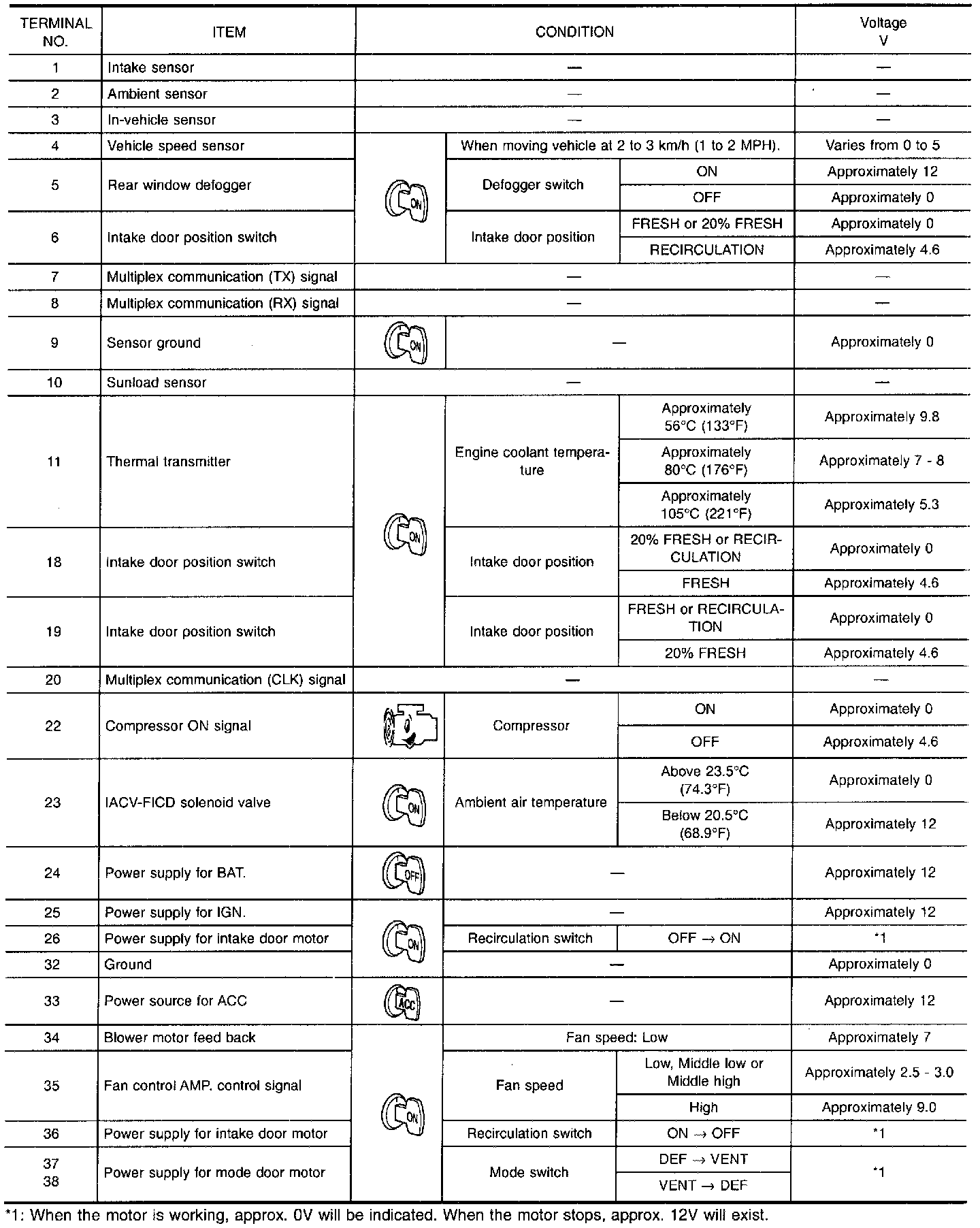

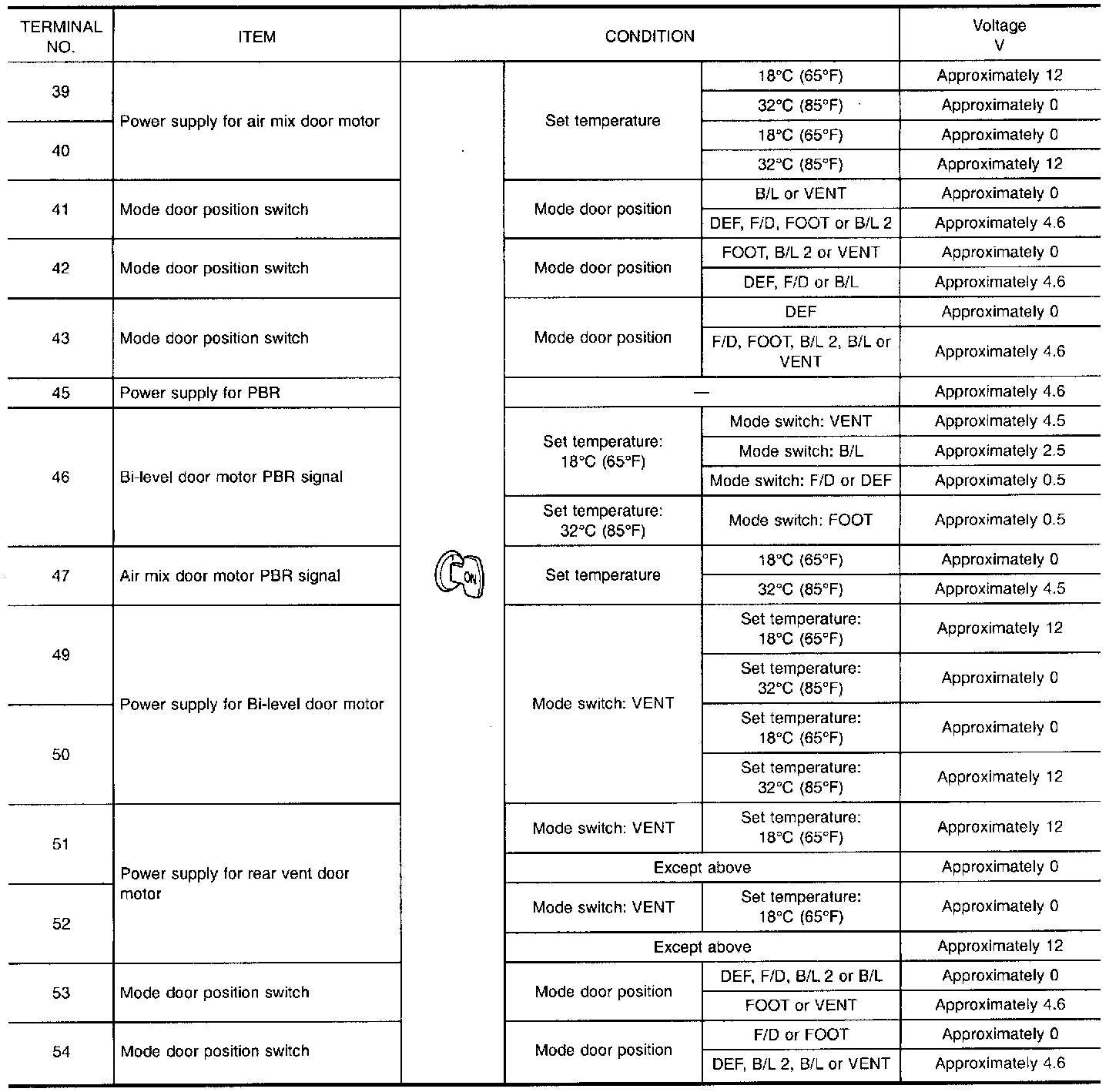

AUTO AMP. INSPECTION TABLE
