Lighting and Horns: Service and Repair

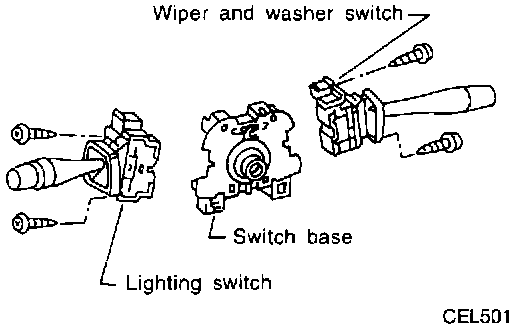

Combination Switch Replacement:




^ Each switch can be replaced without removing combination switch base.

Combination Switch Replacement:




^ To remove combination switch base, remove base attaching screw.

Combination Switch Replacement:

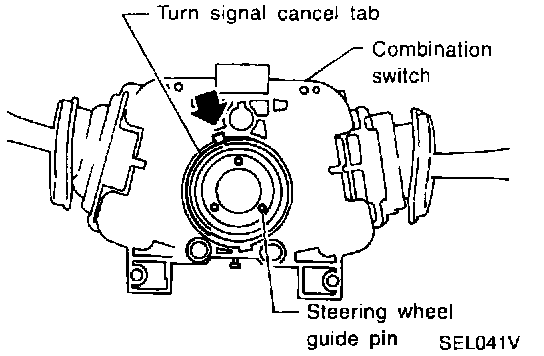

^ Before installing steering wheel, align turn signal cancel tab with the notch of combination switch.
