Circuit Breaker: Testing and Inspection

Circuit Breaker Inspection:

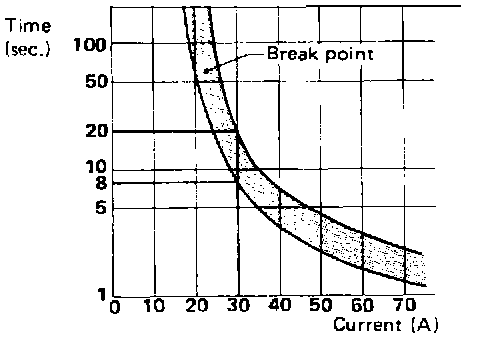

For example, when current is 30 A, the circuit is broken within 8 to 20 seconds.
Circuit breakers are used in the following systems.
^ Electric sunroof
^ Power seat
^ Main power supply, ground and communication circuits - In-Vehicle Multiplexing System (IVMS)
^ Power window - IVMS
^ Power door lock - IVMS
^ Multi-remote control - IVMS
^ Interior lamp control - IVMS
^ Step lamp - IVMS
^ Illumination - IVMS
^ Automatic drive positioner - IVMS
^ Theft warning system - IVMS
