Engine Control System Schematic

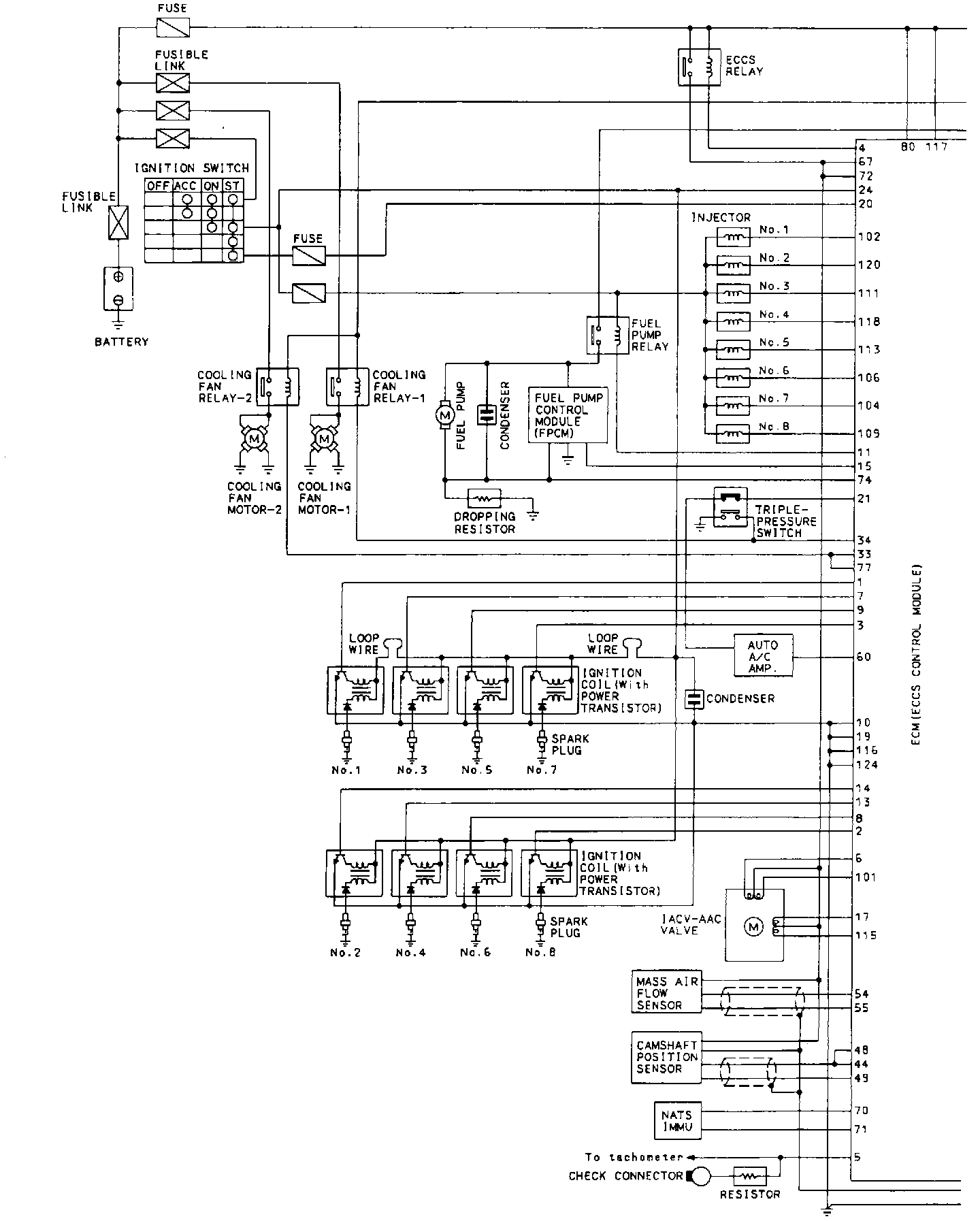

Engine And Emission Control Overall System Circuit Diagram (Part 1 Of 2):
Engine And Emission Control Overall System Circuit Diagram (Part 2 Of 2):
