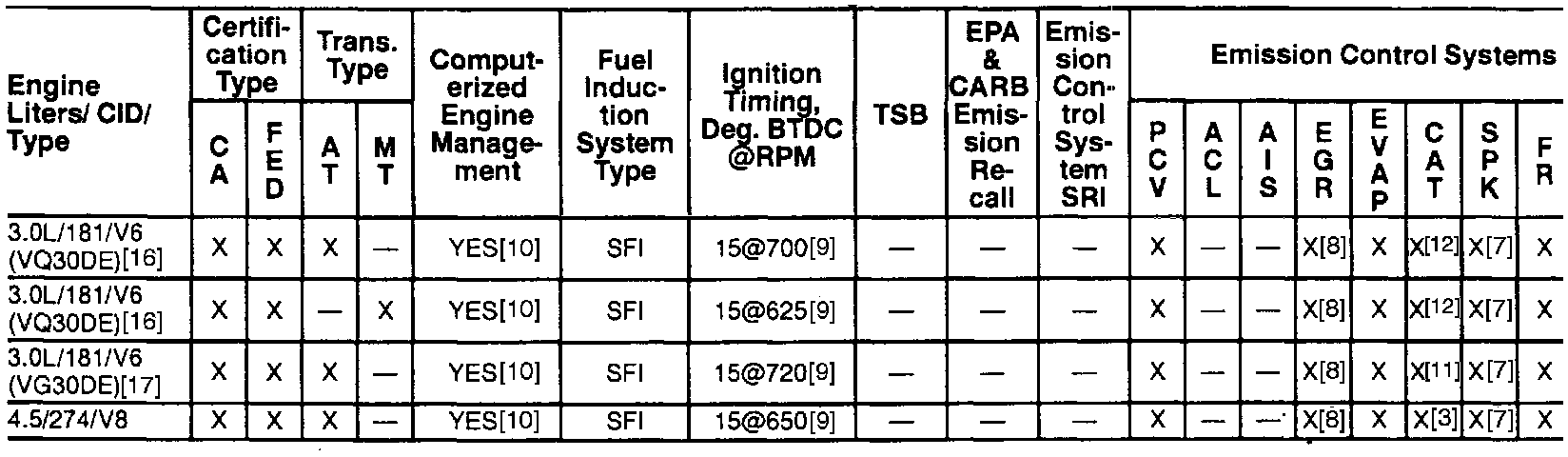

Emission Control Systems: Application and ID

I3�$:

Footnotes:

X - Equipped

- Not Equipped

3 - Type TWC; number of catalytic converters, 4.

7 - EI (Electronic Ignition).

8 - Electronically controlled EGR.

9 - Refer to the emission control informstion label.

10 - ECCS.

11 - Type TWC; number of catalytic converters, 2.

12 - Type TWC & WU-TWC; number of catalytic converters, 3.

13 - Three HO2S.

14 - Four HO2S.
