Engine Control Harness

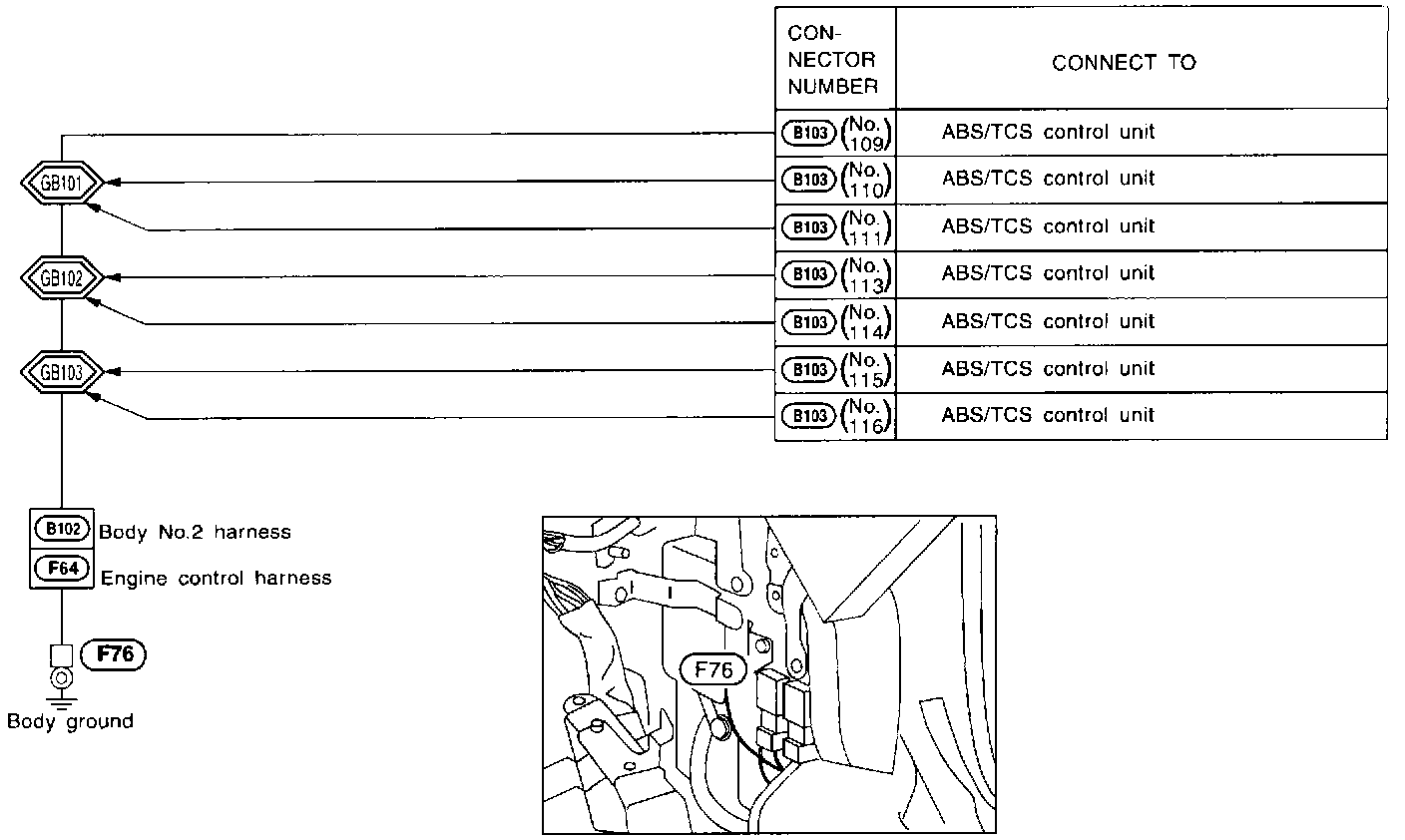

Ground Distribution Engine Control Harness (Part 1 Of 3):




Ground Distribution Engine Control Harness (Part 2 Of 3):




Ground Distribution Engine Control Harness (Part 3 Of 3):
