Main Harness

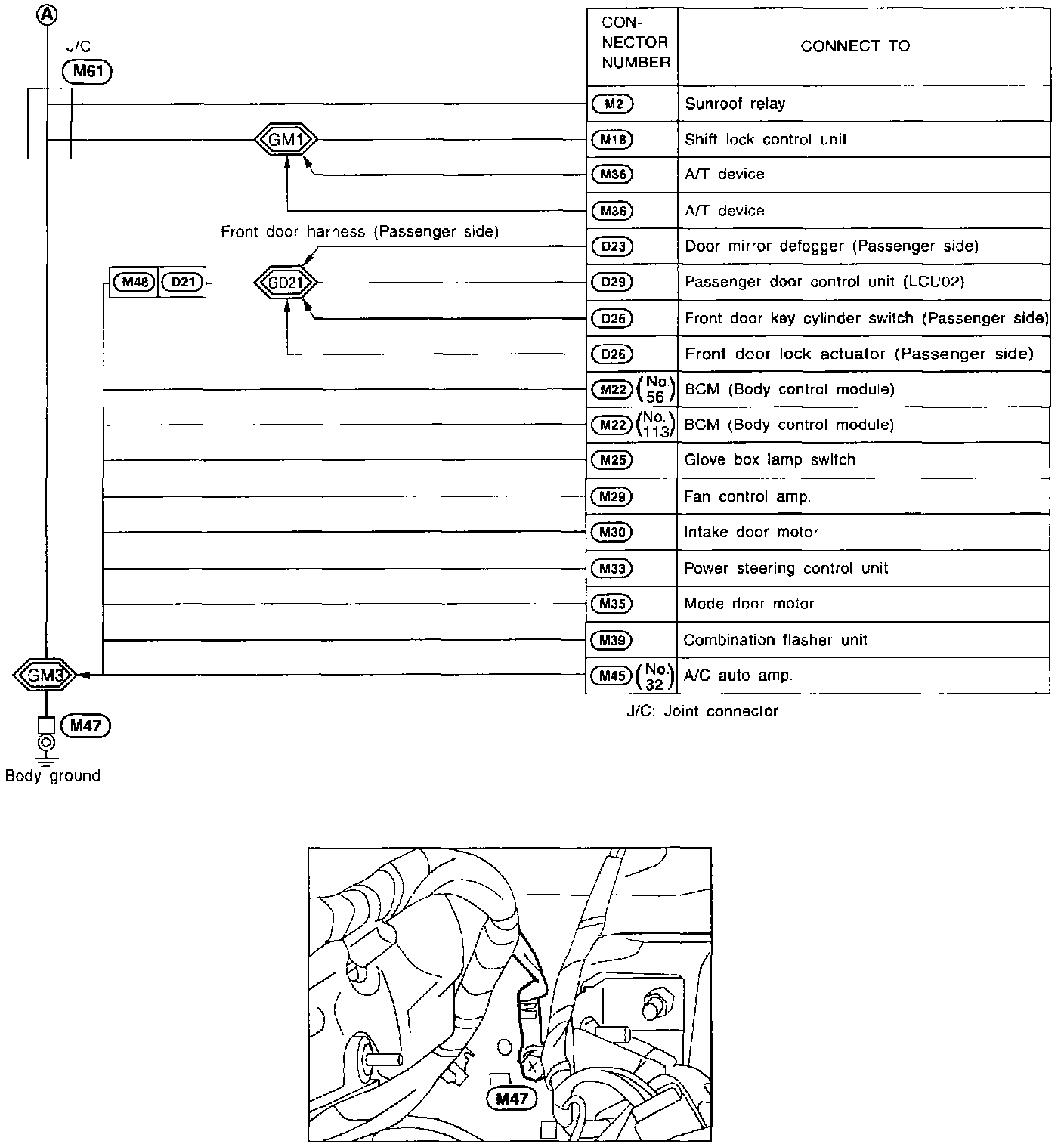

Ground Distribution Main Harness (Part 1 Of 2):



Ground Distribution Main Harness (Part 2 Of 2):
