Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1997
>>
Q45 V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Service and Repair
>>
Removal
Removal
Removal:
1.
Remove steering gear and linkage assembly.
2.
Remove harness connector.
3.

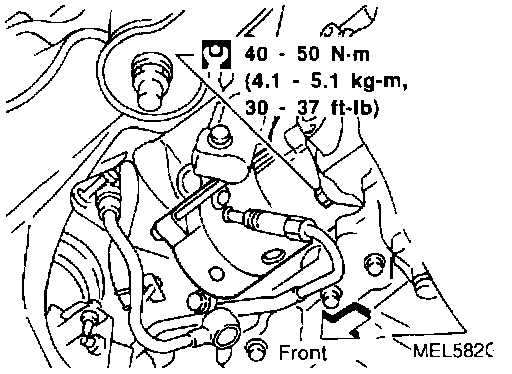

Remove starter by moving it in the direction of the arrow.
