Rear Suspension

AXLE AND SUSPENSION PARTS

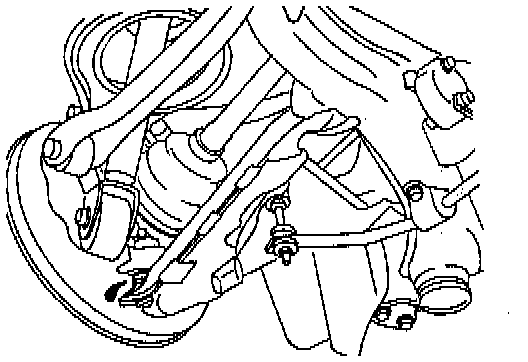

- Check axle and suspension parts for excessive play, wear or damage.

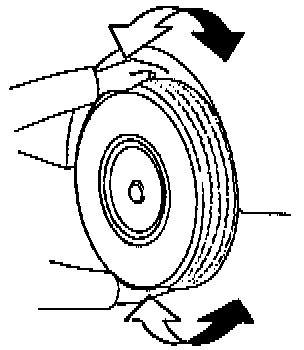

- Shake each rear wheel to check for excessive play.

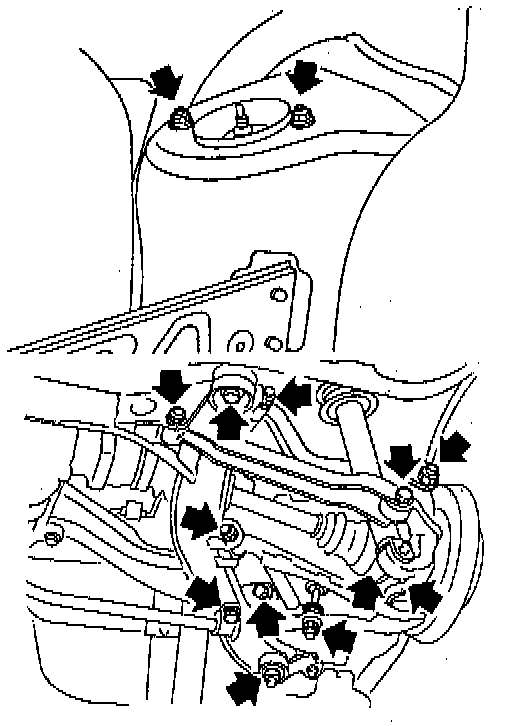

- Retighten all nuts and bolts to the specified torque.
- Make sure that cotter pin is inserted.

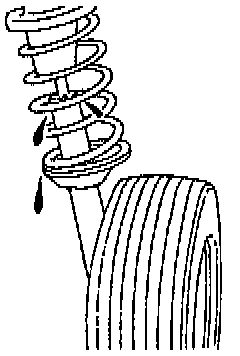

- Check shock absorber for oil leakage or other damage.
- Check wheelarch height.





- Check suspension ball joint for grease leakage and ball joint dust cover for cracks or other damage.
