El-WIPER
El-WIPER
EL-WIPER-01 Front Wiper And Washer (Part 1 Of 4):

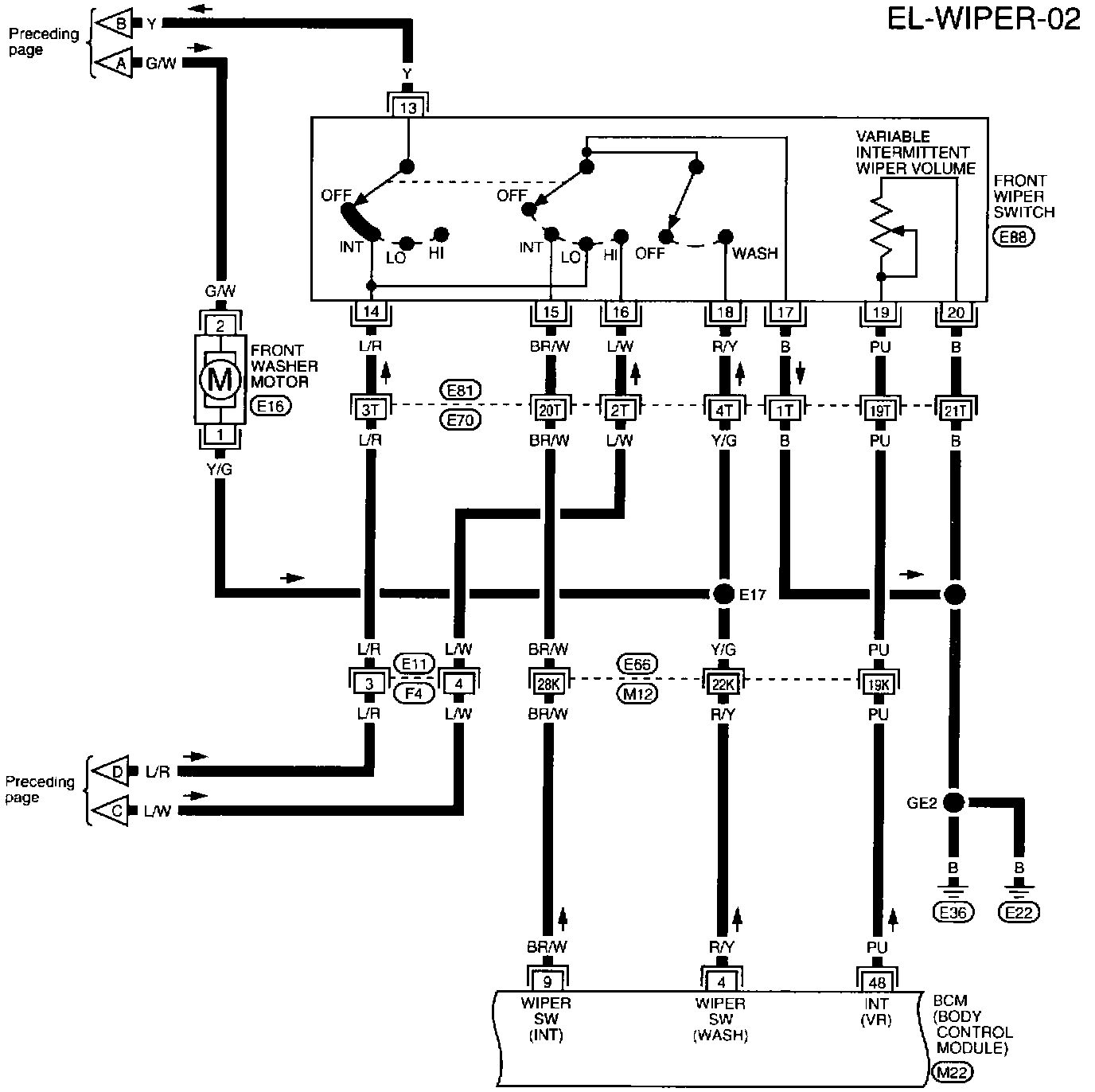

EL-WIPER-02 Front Wiper And Washer (Part 2 Of 4):

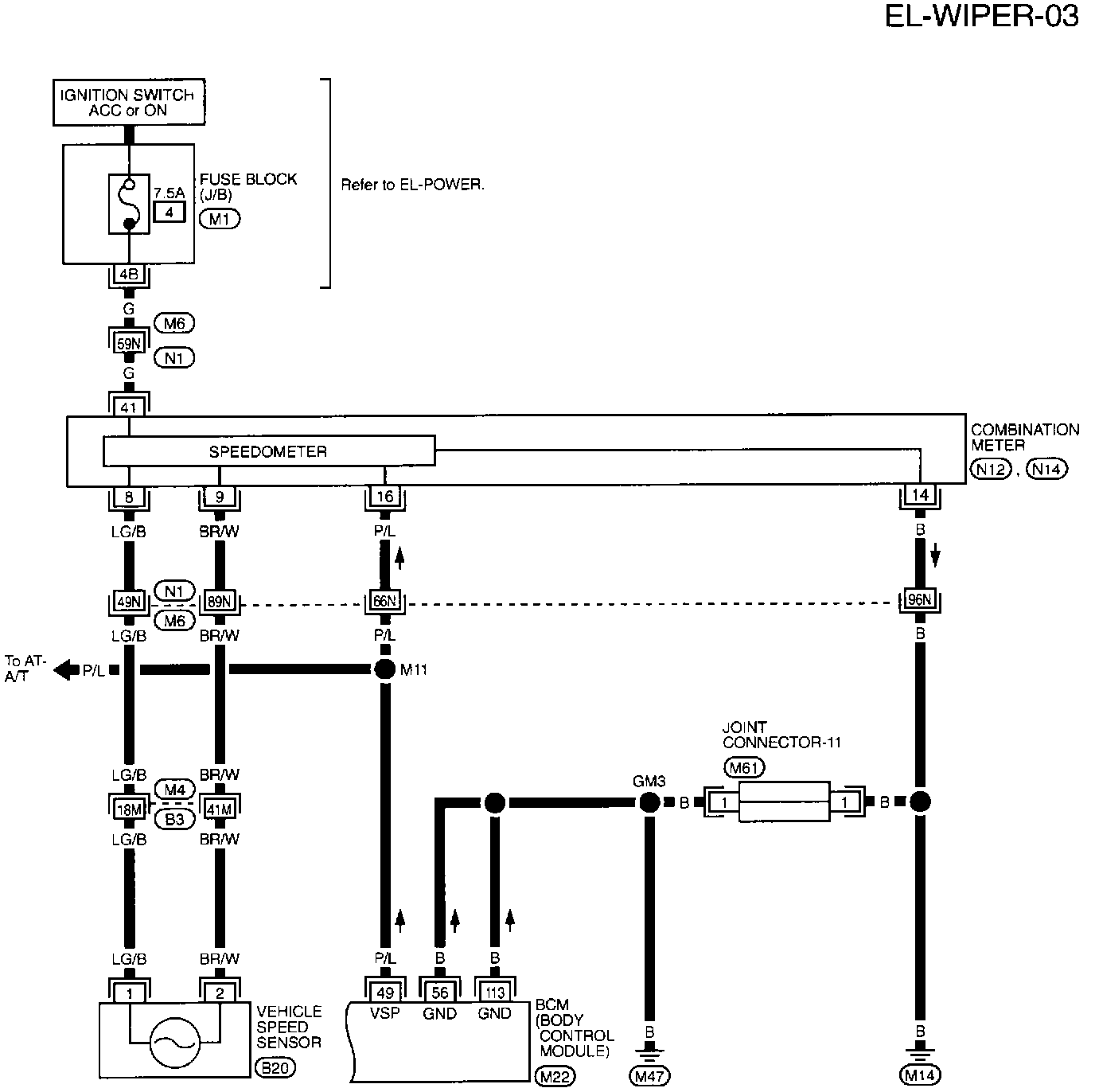

EL-WIPER-03 Front Wiper And Washer (Part 3 Of 4):
