Displaying & Reading Trouble Codes

EL-WIPER-04 Front Wiper And Washer (Part 4 Of 4):

1. Turn ignition switch "OFF".

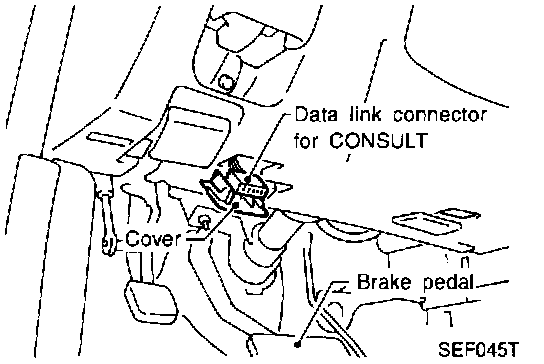

2. Connect "CONSULT" to the data link connector.

Front Wiper And Washer (Part 4 Of 4):

3. Turn ignition switch "ON".
4. Touch "START".

Consult Inspection Procedure:

5. Touch "IVMS".

Consult Inspection Procedure:

6. Touch "WIPER"

Consult Inspection Procedure:

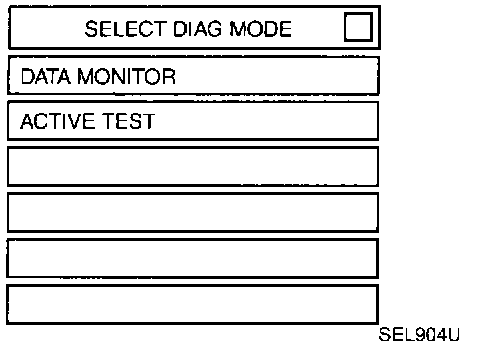

^ DATA MONITOR and ACTIVE TEST are available for the wiper and washer.
