CONSULT-II Inspection Procedure

1. Turn off ignition switch.

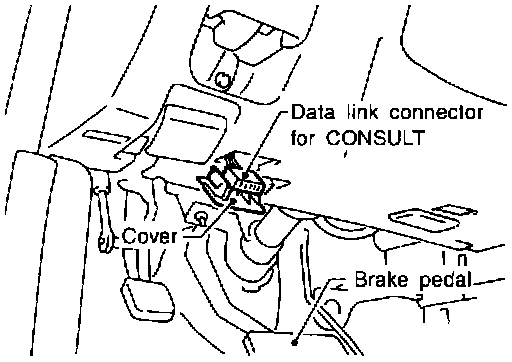

2. Connect "CONSULT" to data link connector for CONSULT

3. Turn on ignition switch.
4. Turn on ASCD main switch.
5. Touch START (on CONSULT display).

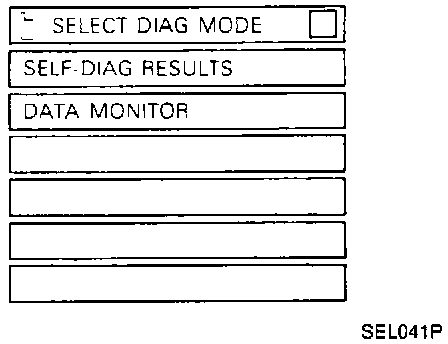

6. Touch ASCD.
7. Touch SELF-DIAG RESULTS.

^ Self-diagnostic results are shown separately.

8. Touch DATA MONITOR.

^ Touch START.
^ Data monitor results are shown separately.
