AT-A/T

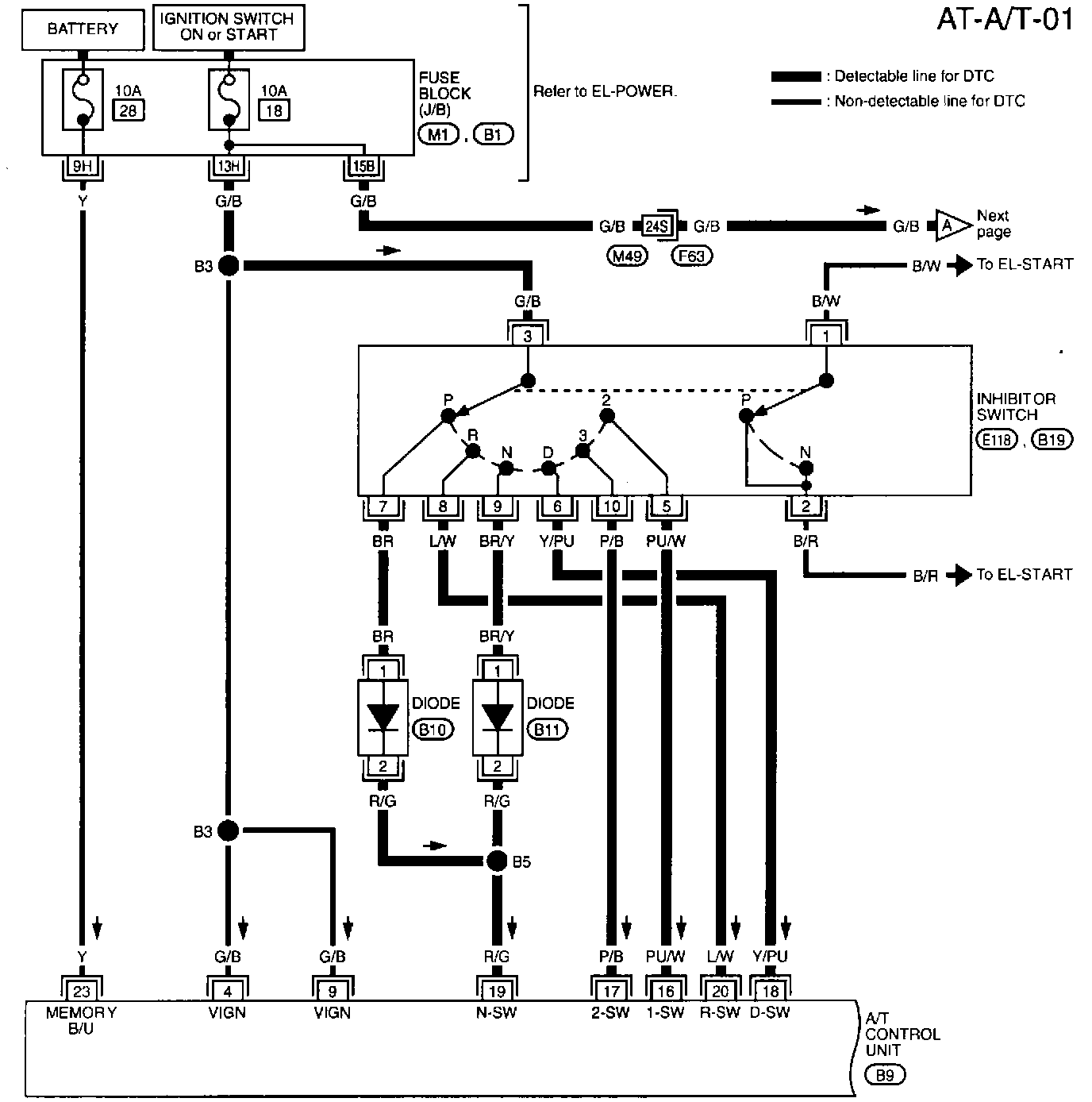

AT-A/T-01 Automatic Transmission (Part 1 Of 6):

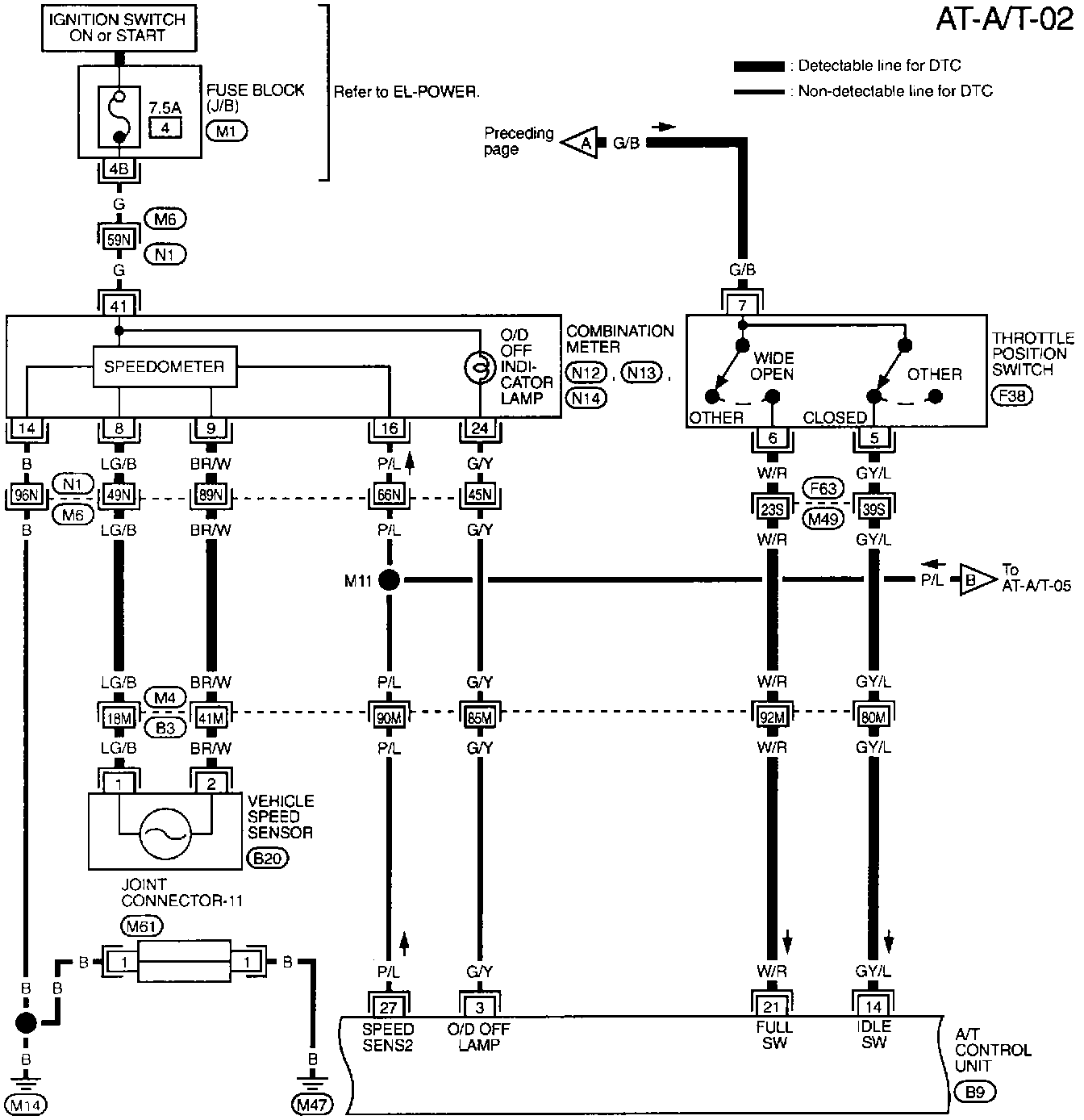

AT-A/T-02 Automatic Transmission (Part 2 Of 6):

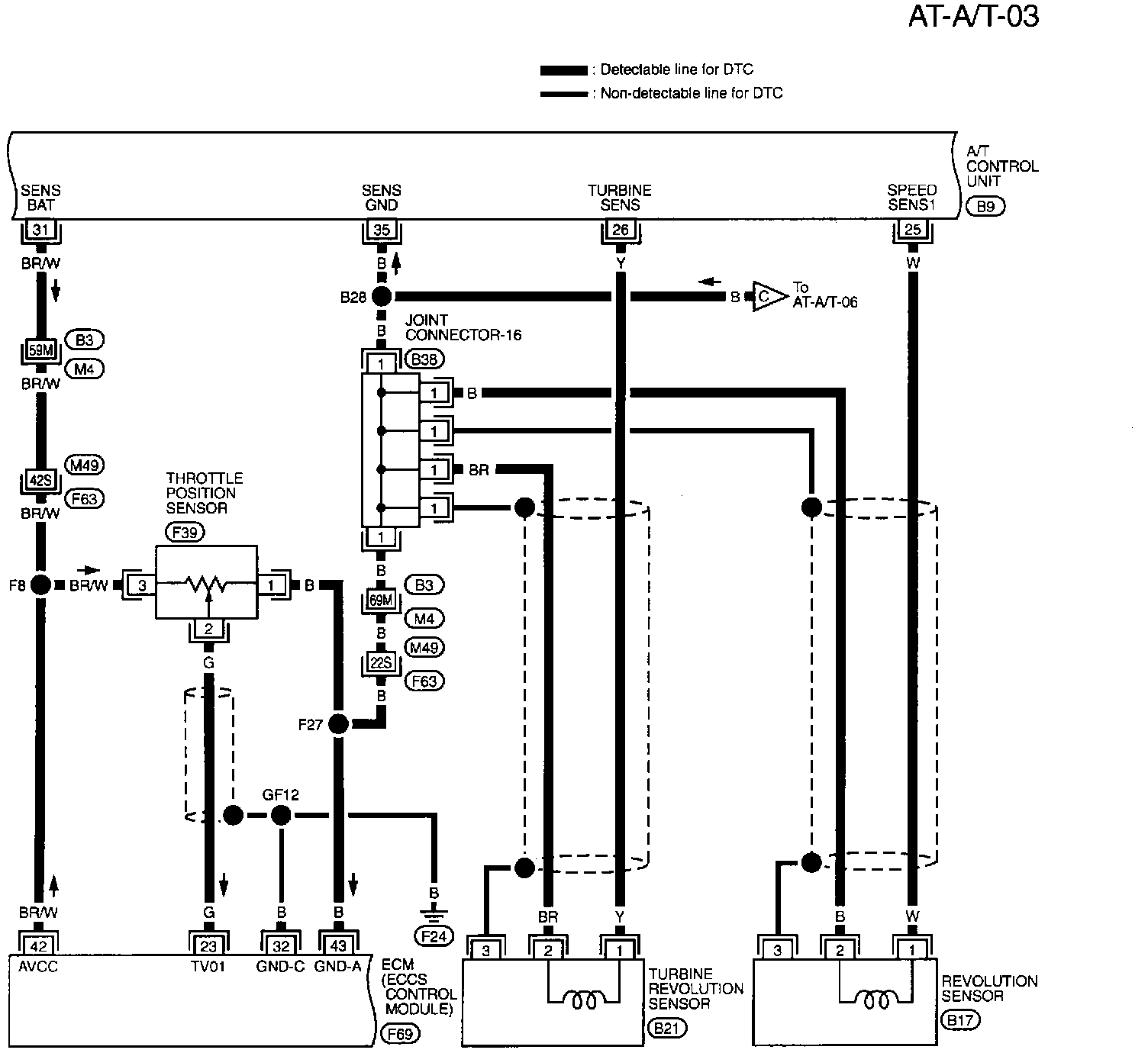

AT-A/T-03 Automatic Transmission (Part 3 Of 6):

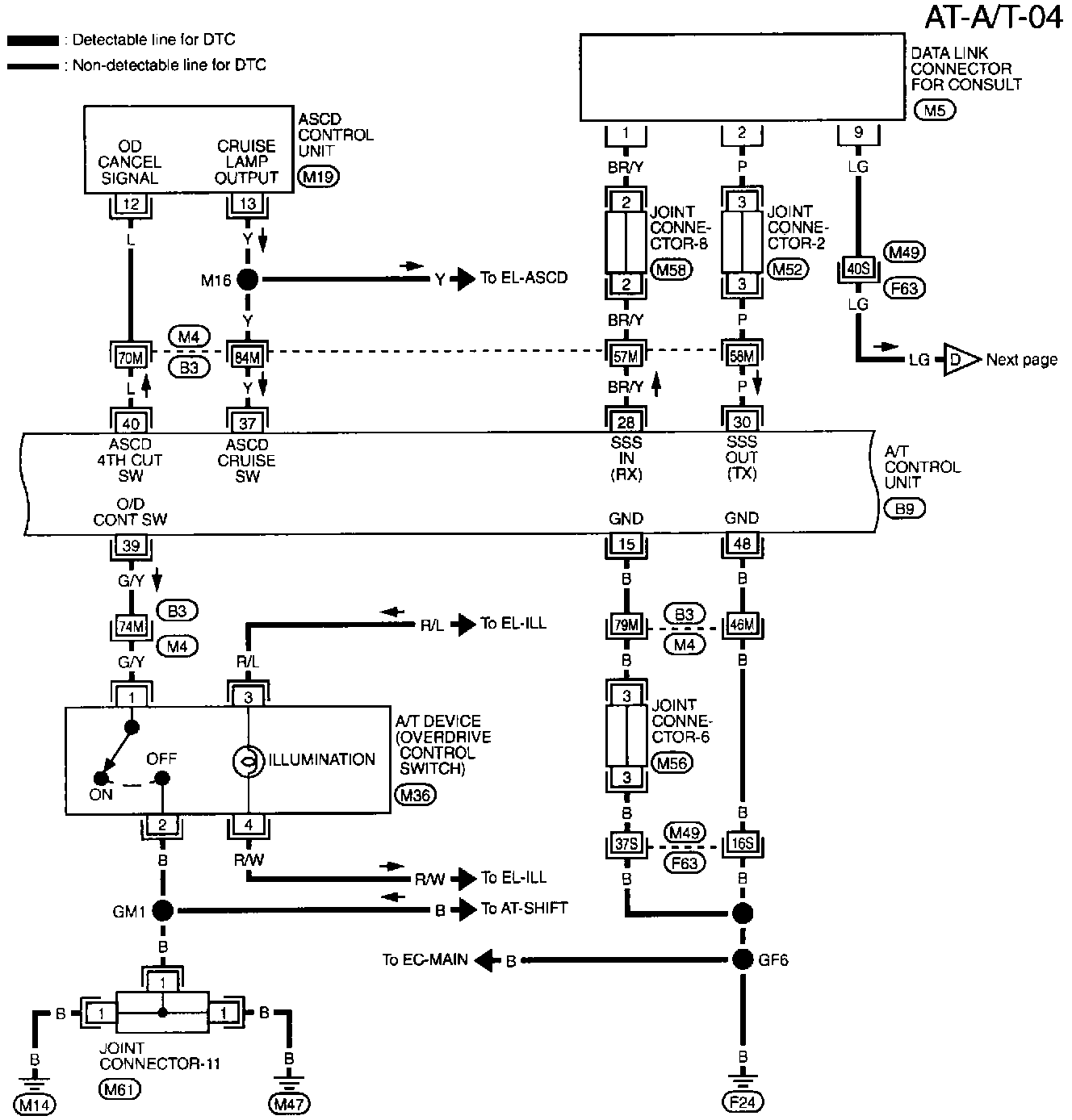

AT-A/T-04 Automatic Transmission (Part 4 Of 6):

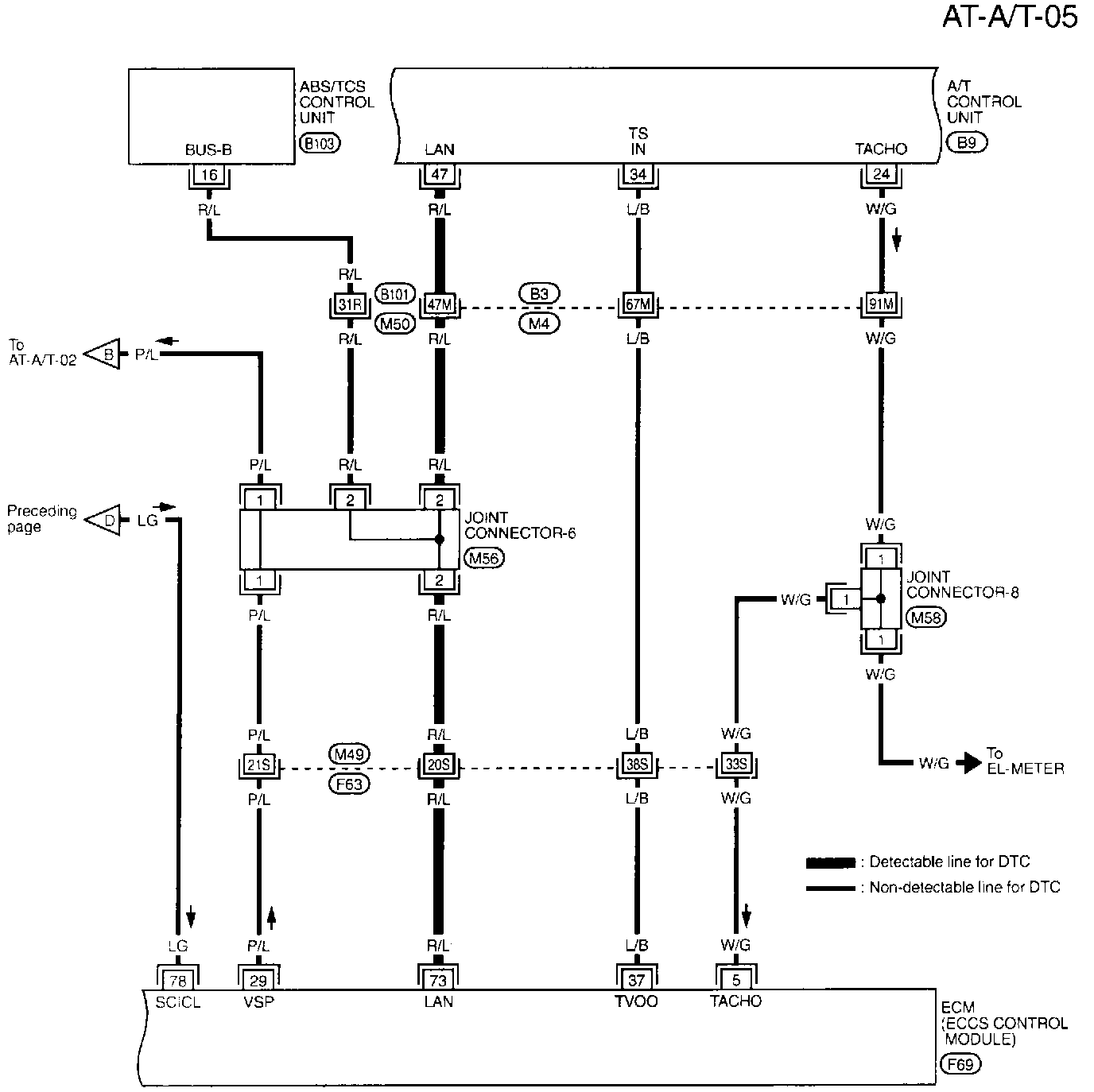

AT-A/T-05 Automatic Transmission (Part 5 Of 6):




AT-A/T-06 Automatic Transmission (Part 6 Of 6):
