EL-STEP/L
EL-STEP/L
EL-STEP-01 Step Lamps-IVMS (Part 1 Of 5):
EL-STEP-02 Step Lamps-IVMS (Part 2 Of 5):
EL-STEP-03 Step Lamps-IVMS (Part 3 Of 5):

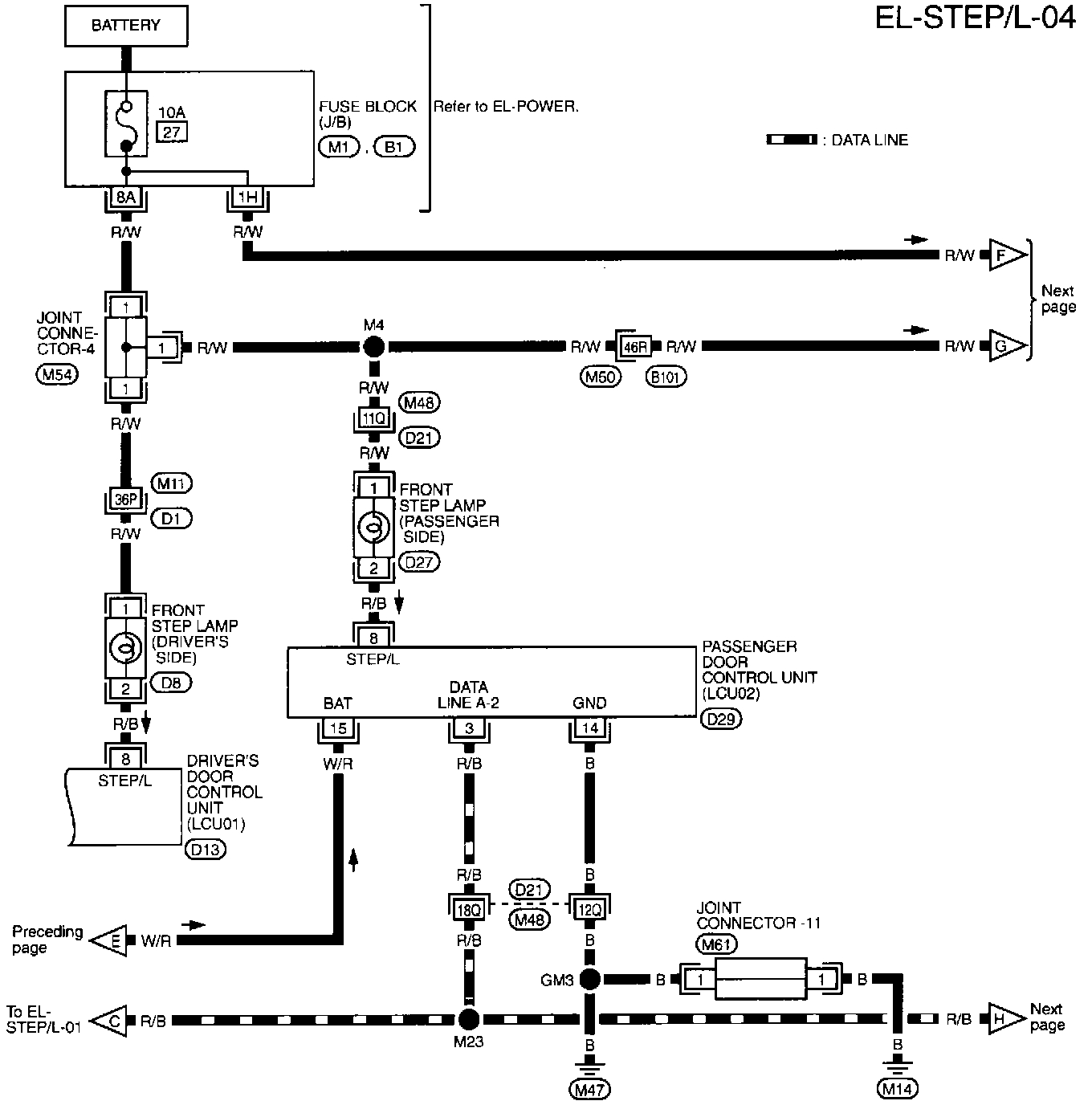

EL-STEP-04 Step Lamps-IVMS (Part 4 Of 5):

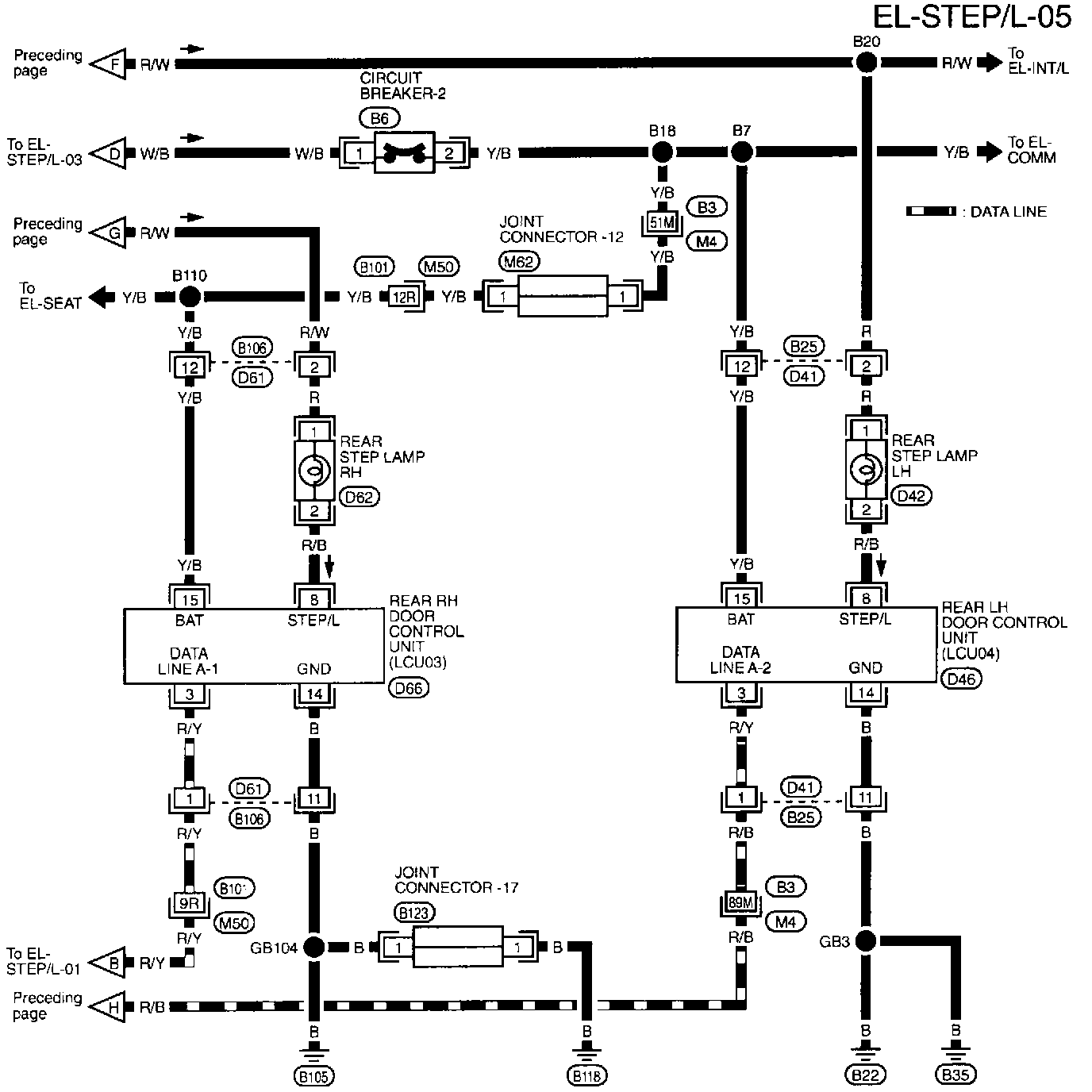

EL-STEP-05 Step Lamps-IVMS (Part 5 Of 5):
