EL-STOP/L

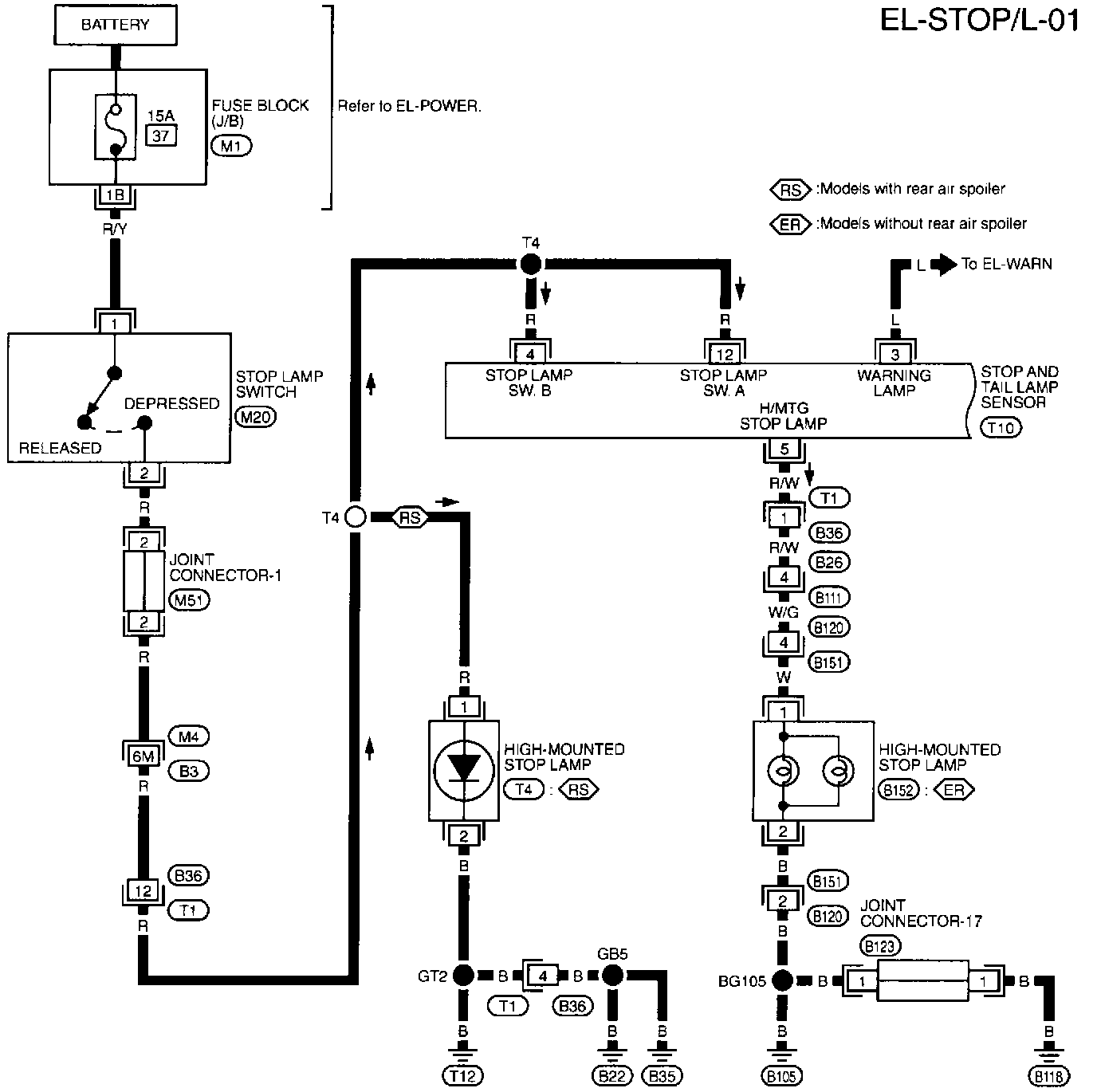

EL-STOP/L-01 Stop Lamp (Part 1 Of 3):

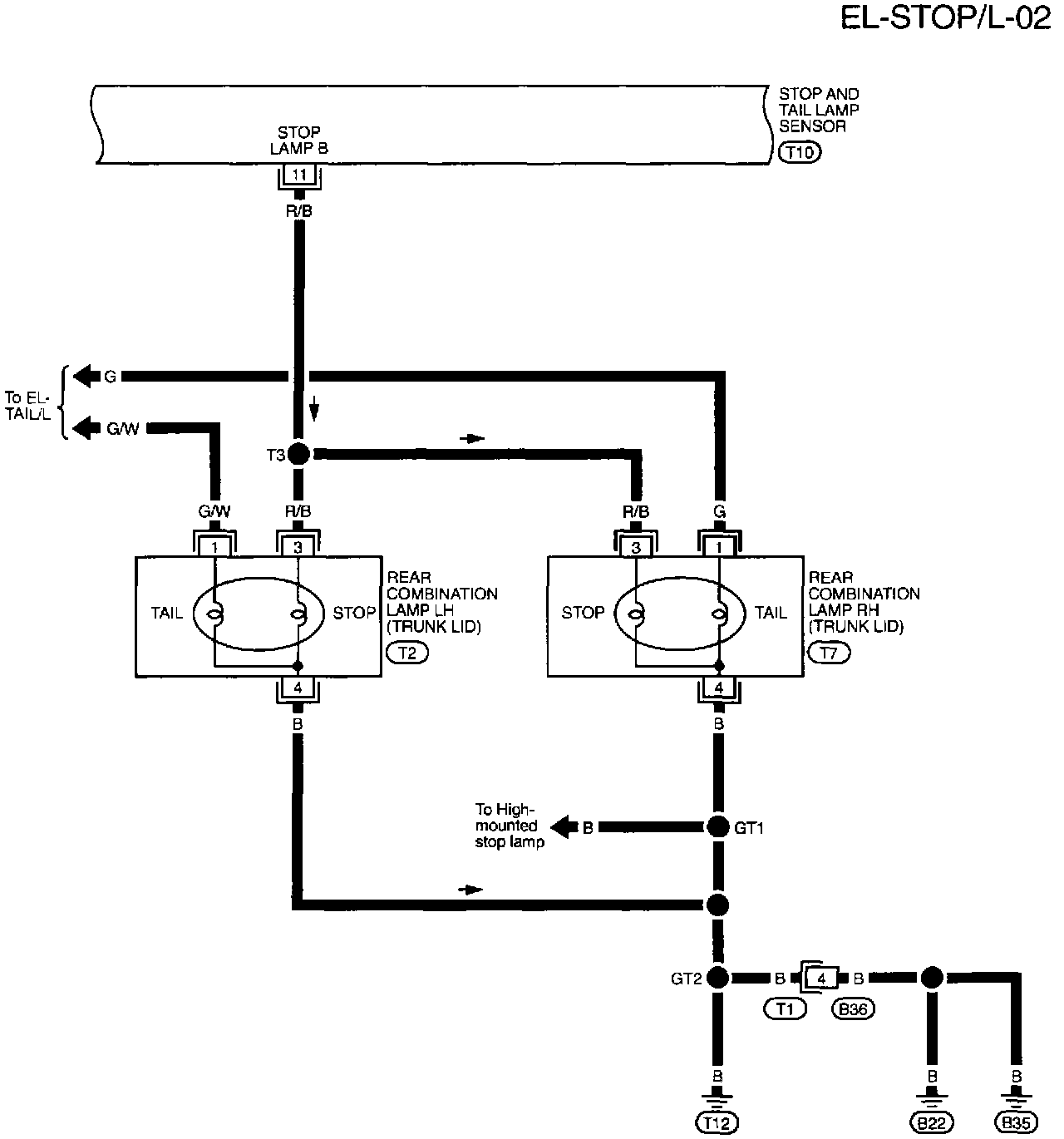

EL-STOP/L-02 Stop Lamp (Part 2 Of 3):
EL-STOP/L-03 Stop Lamp (Part 3 Of 3):
