CONSULT Inspection Procedure

CONSULT Inspection Procedure:

1. Turn ignition switch "OFF".
2. Connect "CONSULT" to the data link connector.

CONSULT Inspection Procedure:

3. Turn ignition switch "ON".
4. Touch "START".

CONSULT Inspection Procedure:

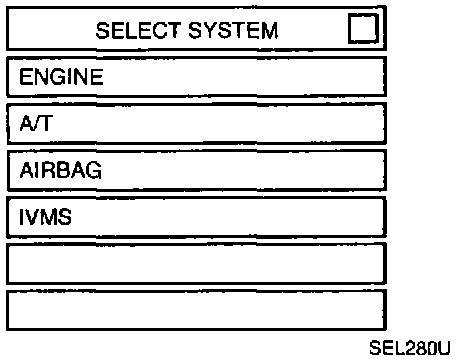

5. Touch "IVMS".

CONSULT Inspection Procedure:

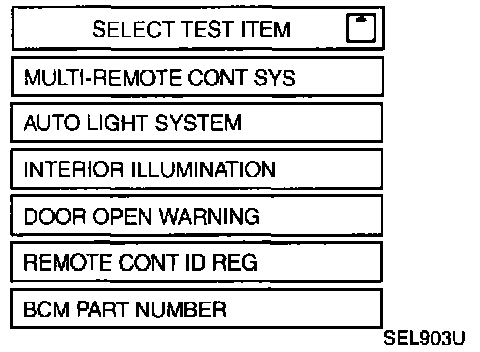

6. Touch "TOUCH INTERIOR ILLUMINATION".

CONSULT Inspection Procedure:

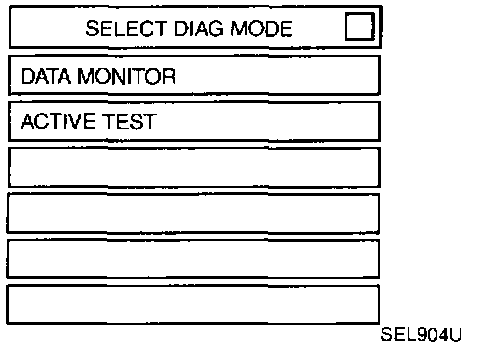

^ DATA MONITOR and ACTIVE TEST are available for the interior illumination.
