Camshaft, Engine

DIMENSIONS
End Play
Standard: 0.070 - 0.148 mm (0.0028 - 0.0058 inch)
Limit: 0.20 mm (0.0079 inch)

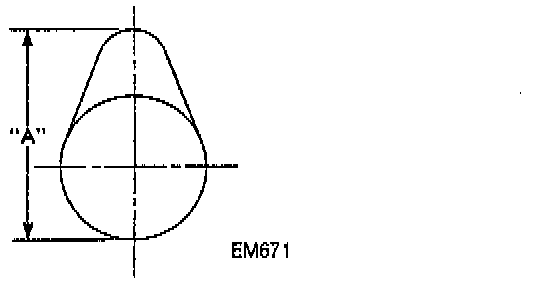

Height "A"
Intake: 37.858 - 38.048 mm (1.4905 - 1.4979 inch)
Exhaust: 34.969 - 35.159 mm (1.3767 - 1.3842 inch)
Journal To Bearing Clearance
Standard: 0.045 - 0.086 mm (0.0018 - 0.0034 inch)
Limit: 0.15 mm (0.0059 inch)
Outer Journal Diameter: 25.935 - 25.955 mm (1.0211 - 1.0218 inch)
Runout [1]
Standard: Less than 0.02 mm (0.0008 inch)
Limit: 0.05 mm (0.0020 inch)
Wear Limit Of Cam Height: 0.05 mm (0.0020 inch)

[1] Total Indicator Reading








TIGHTENING SPECIFICATIONS

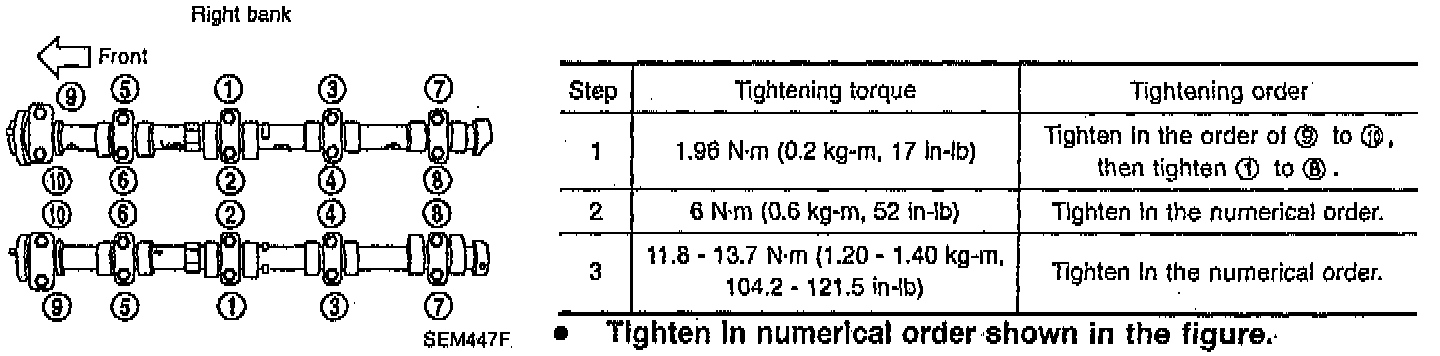

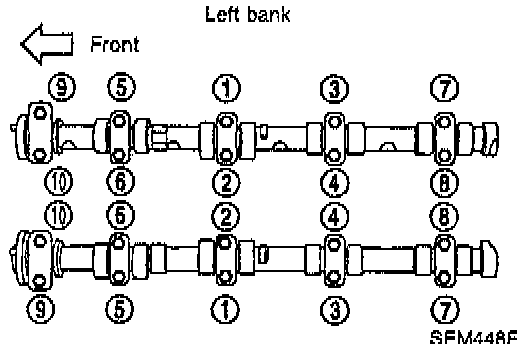

Tighten in numerical order shown in the figure. Tighten the camshaft brackets in the following steps.
1. Tighten bolt Nos. 9 and 10 to 1.96 Nm (17 inch lbs.), then tighten bolt Nos. 1 - 8 to 1.96 Nm (17 inch lbs.).
2. In the same tightening order, tighten to 6 Nm (52 inch lbs.).
3. In the same tightening order, tighten to 11.8 - 13.7 Nm (104.2 - 121.5 inch lbs.).
