Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1997
>>
Q45t V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>
Power Window-IVMS
Power Window-IVMS
EL-WINDOW-01 Power Window-IVMS (Part 1 Of 4):

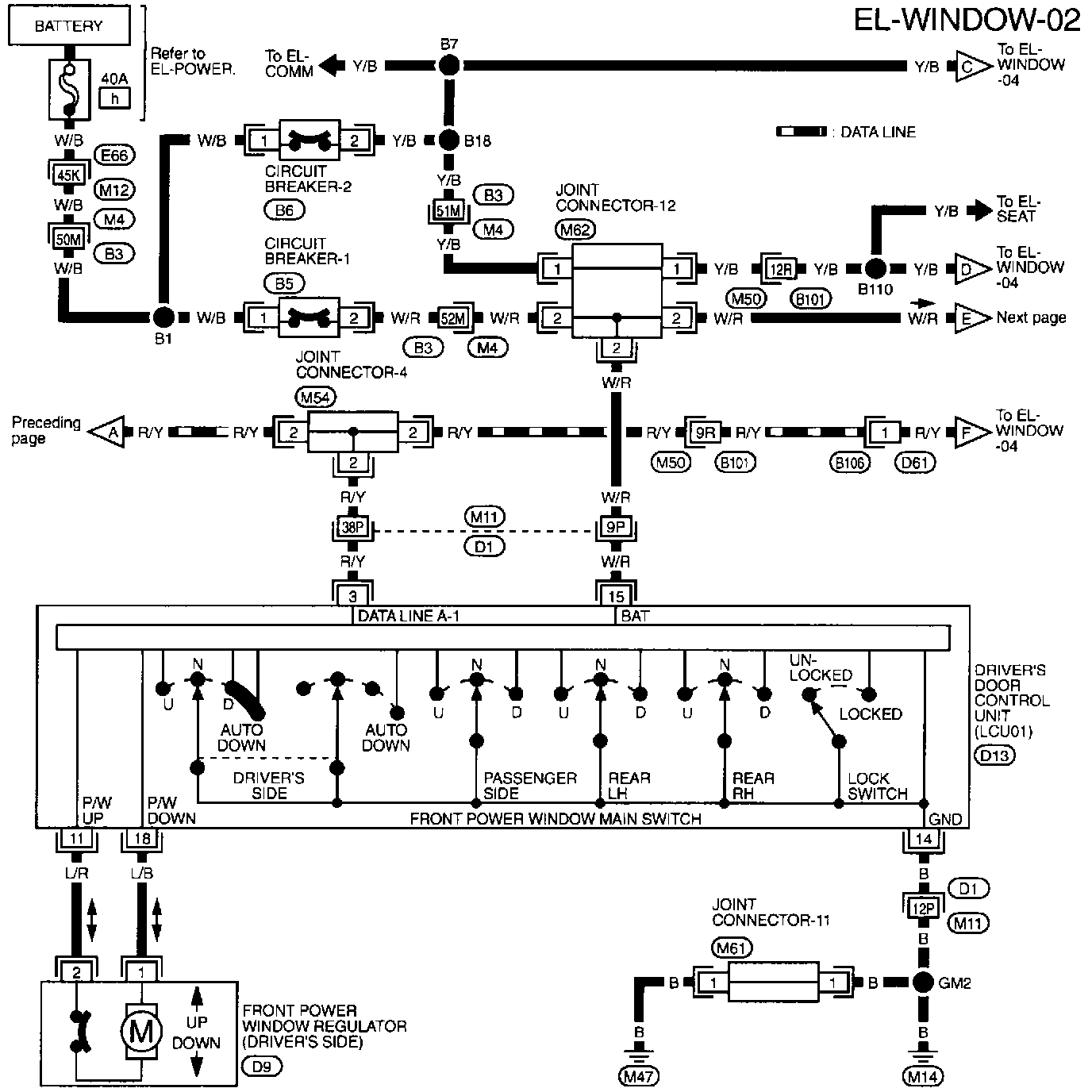

EL-WINDOW-02 Power Window-IVMS (Part 2 Of 4):

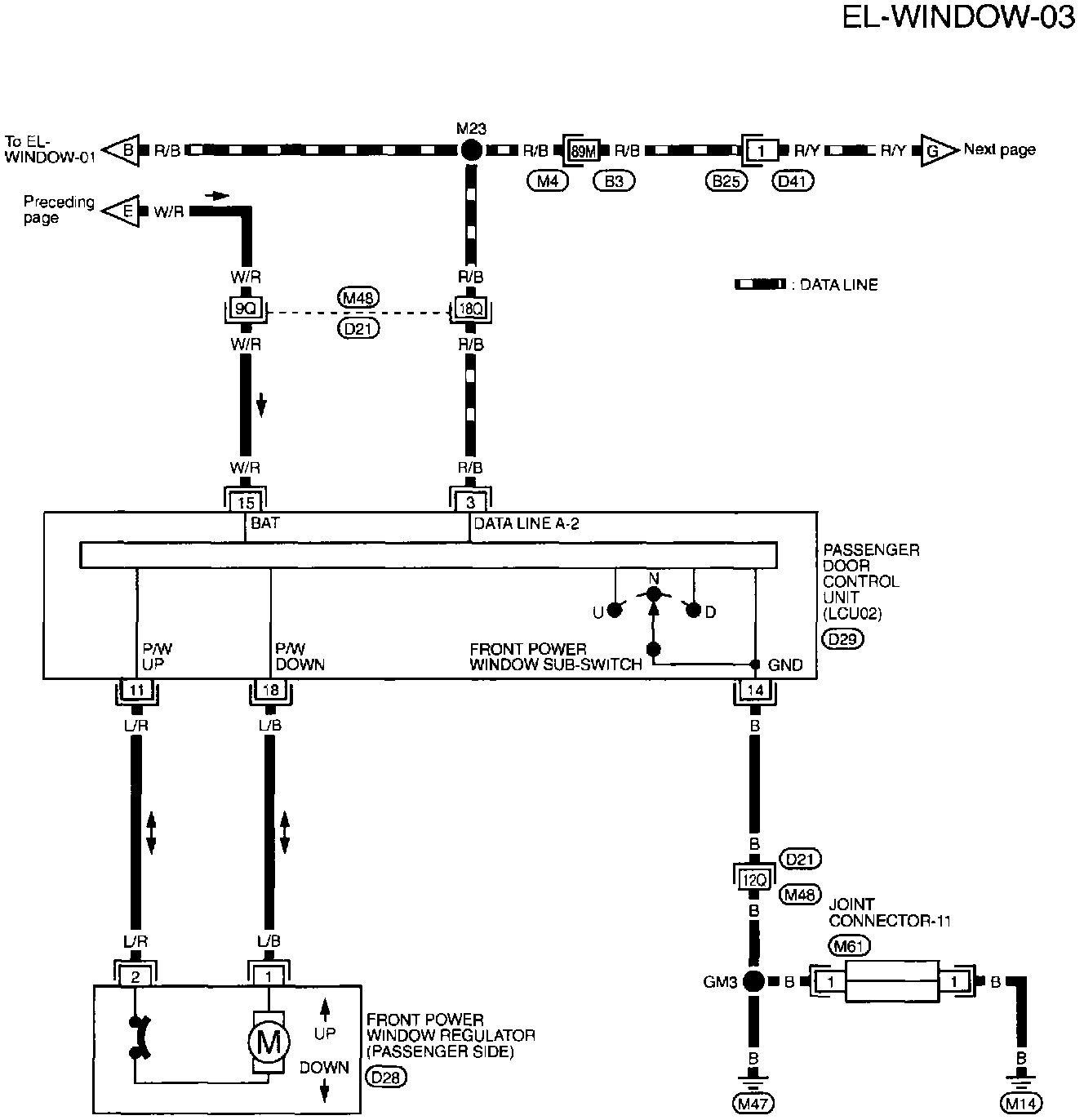

EL-WINDOW-03 Power Window-IVMS (Part 3 Of 4):
EL-WINDOW-04 Power Window-IVMS (Part 4 Of 4):
