Description

Description:

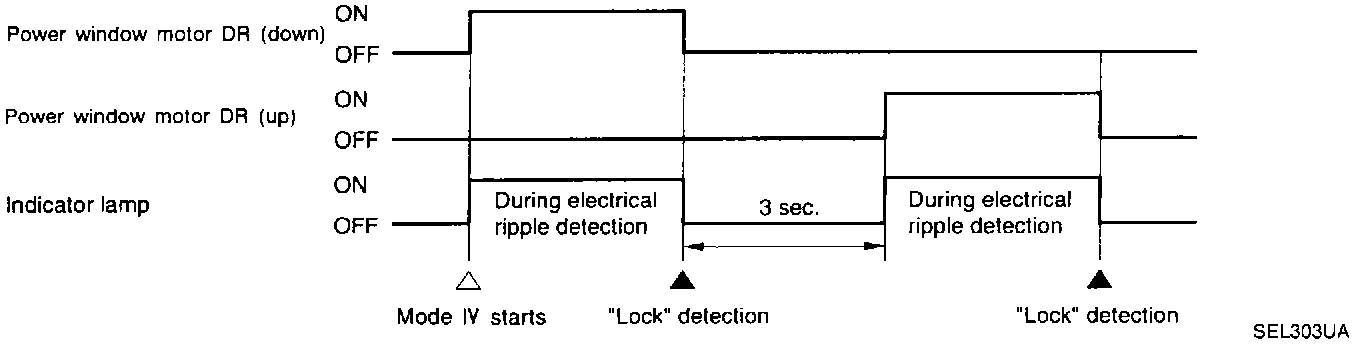

In mode IV, driver window is automatically operated. In conjunction with power window motor (DOWN and UP) "ON", indicator lamps (Front map lamps and front step lamps) turn on. When power window "lock" is detected, power window motor will stop and the indicator lamps will turn off.

NOTE: As soon as manual switches (each seat's power window switch) turn ON, driver power window motor stops and diagnosis ends.
While power window motor is being operated, electrical ripple occurs.
