Instrument Cluster / Carrier

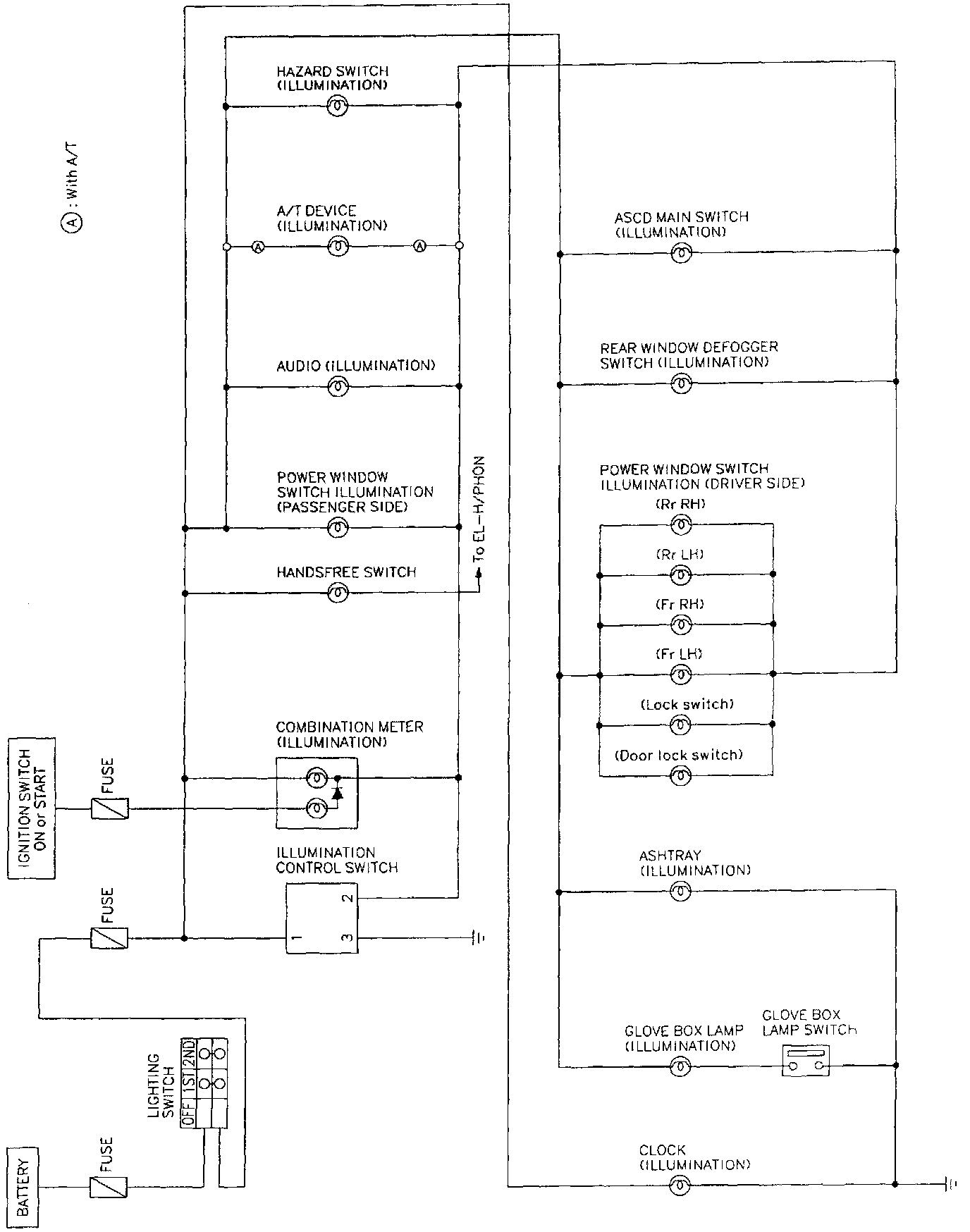

Schematic




Part 1 Of 4
Combination Meter (Illumination)
Fuse Block (J/B)
Handsfree Switch
Illumination Control Switch
Lighting Switch

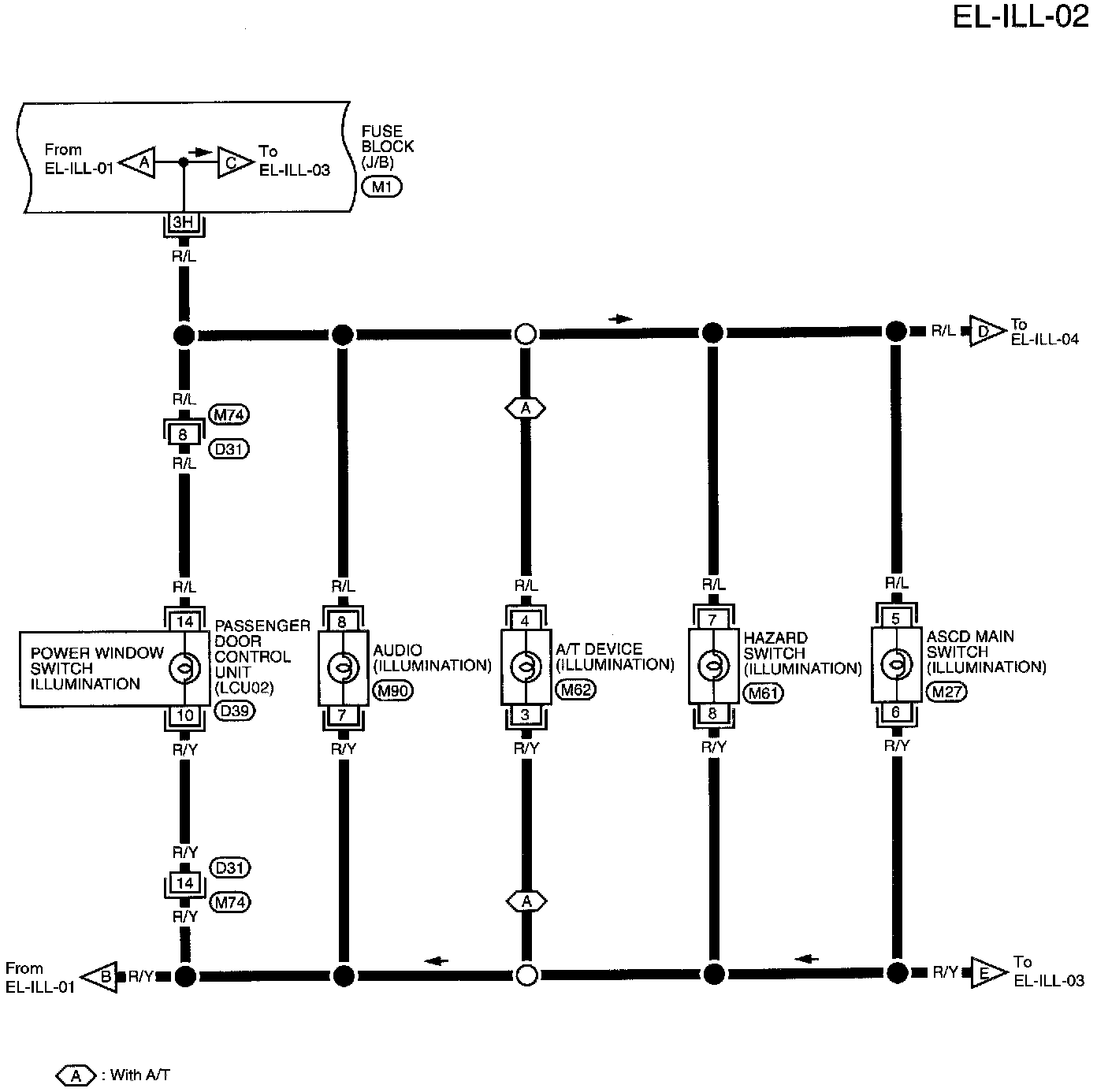

Part 2 Of 4
A/T Device (Illumination)
Audio (Illumination)
ASCD Main Switch (Illumination)
Hazard Switch (Illumination)
Passenger Door Control Unit




Part 3 Of 4
Driver Door Control Unit
Fuse Block (J/B)
Rear Window Defogger Switch (Illumination)

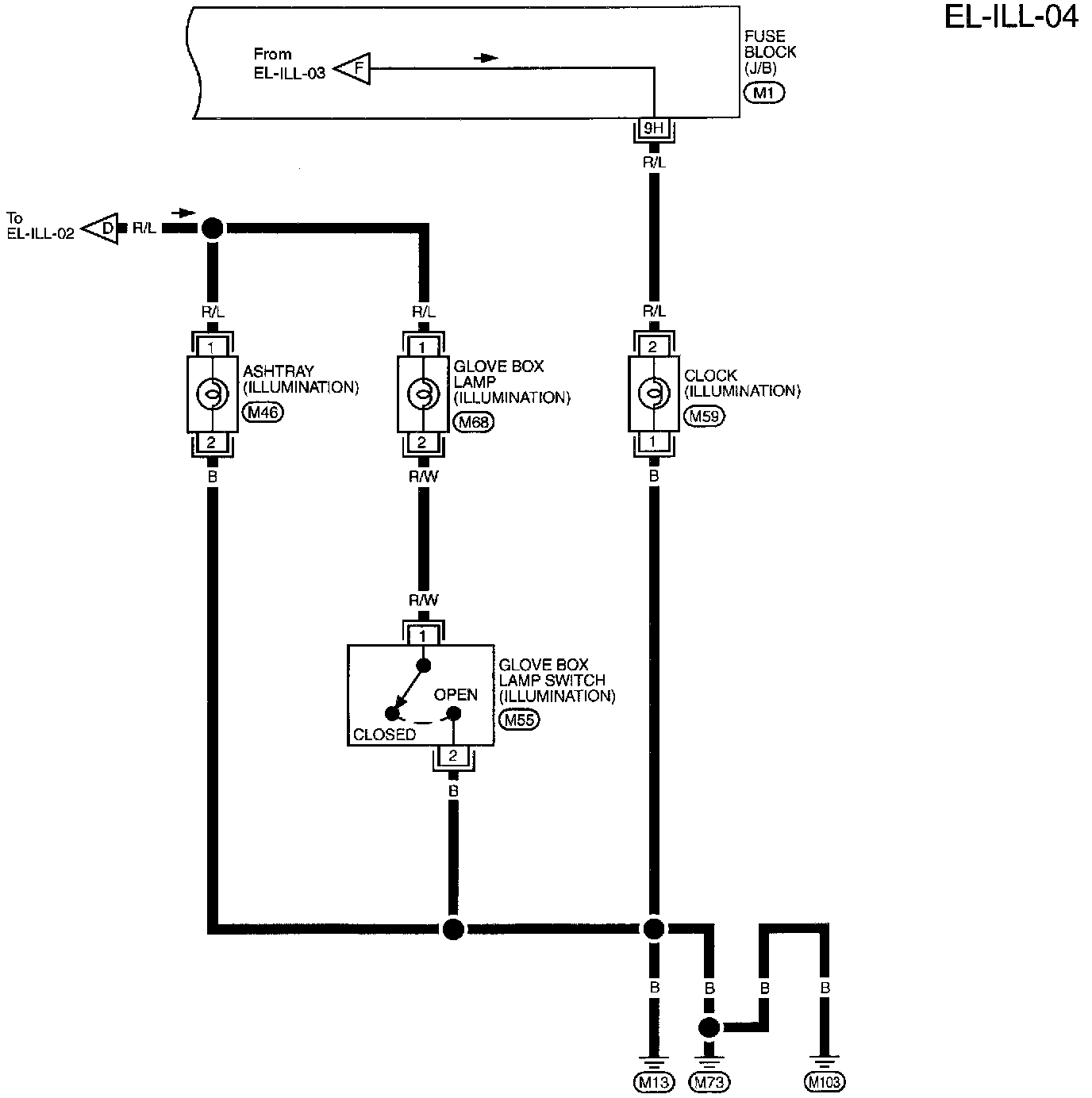

Part 4 of 4
Ashtray (Illumination)
Clock (Illumination)
Fuse Block (J/B)
Glove Box Lamp/switch (Illumination)














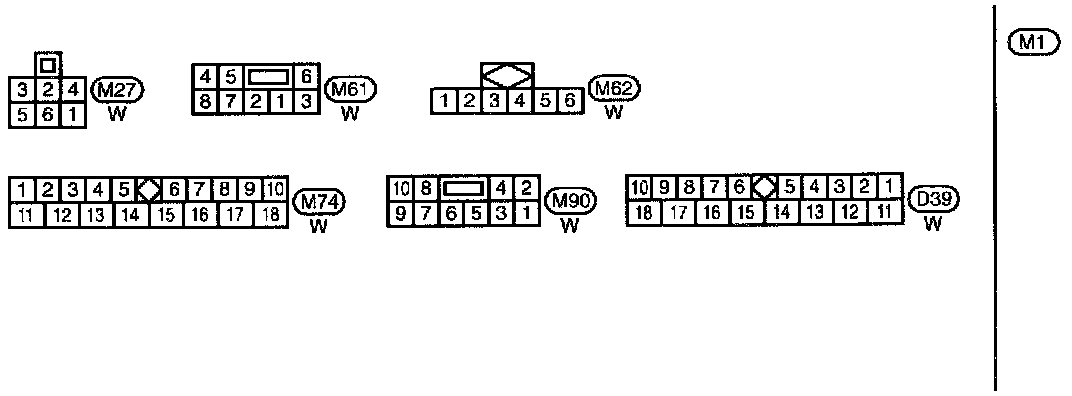

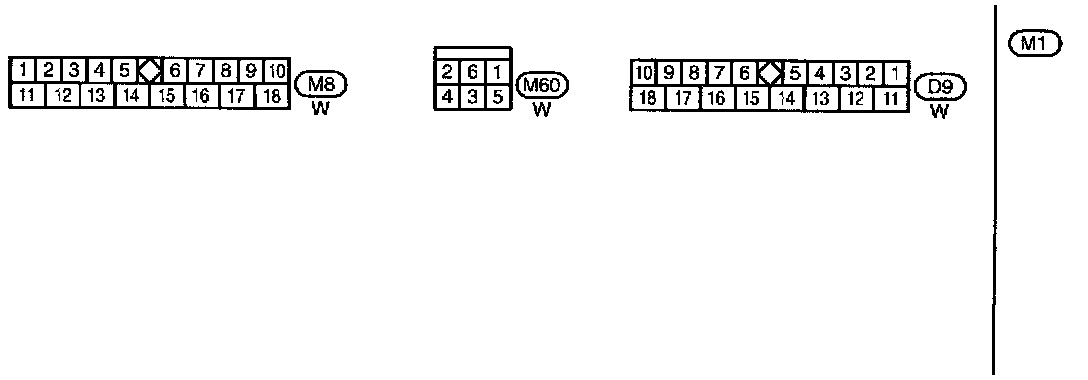

Circuit Connectors





E119, M1 Fuse Block - Junction Box (J/B) - Terminal Arrangement
