Power Locks

Schematic




(Part 1 of 4)
BCM (Body Control Module)
Circuit Breaker - 2
Front Door Switch RH/LH
Fuse Block (J/B)

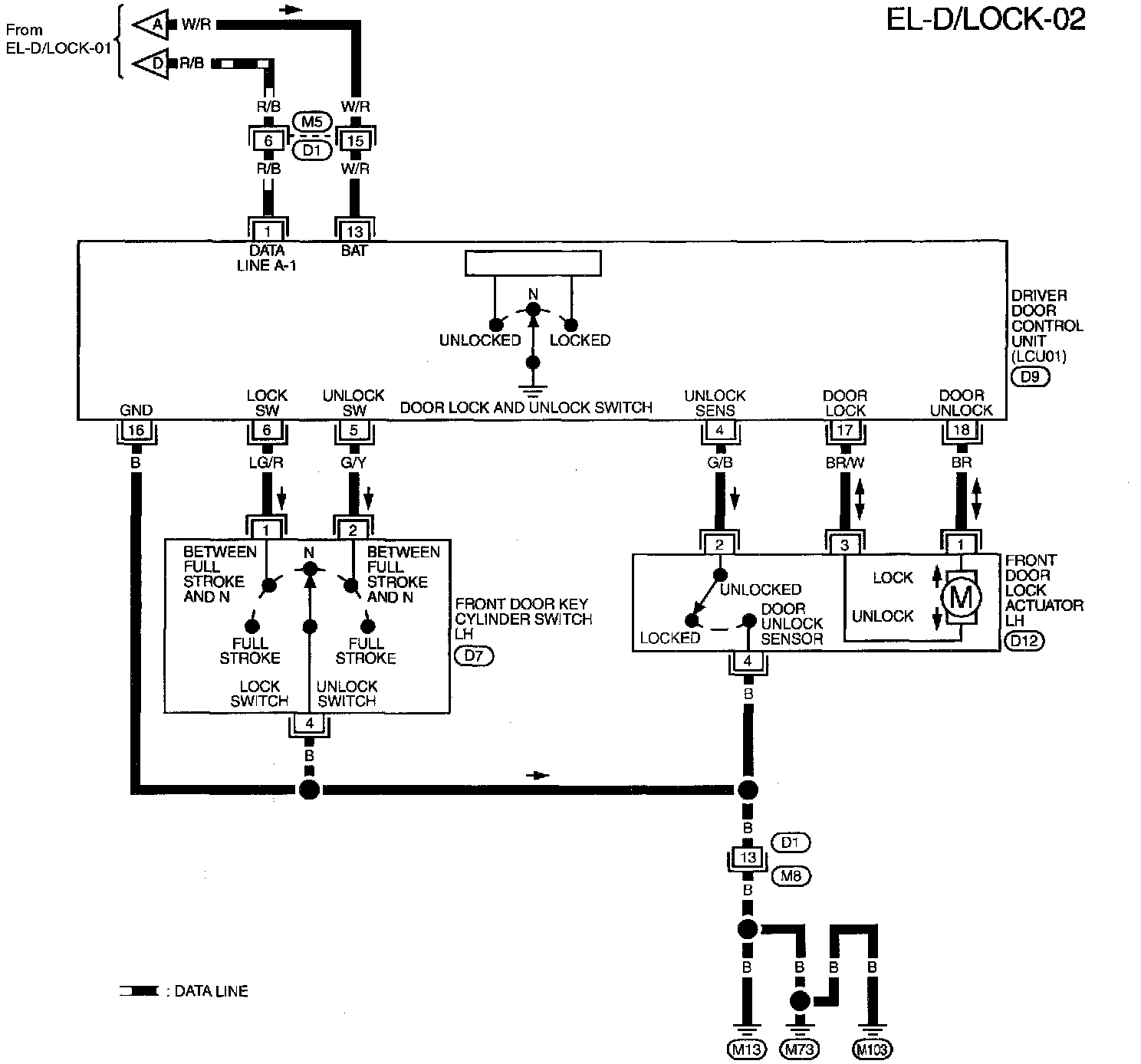

(Part 2 of 4)
Driver Door Control Unit
Front Door lock Actuator

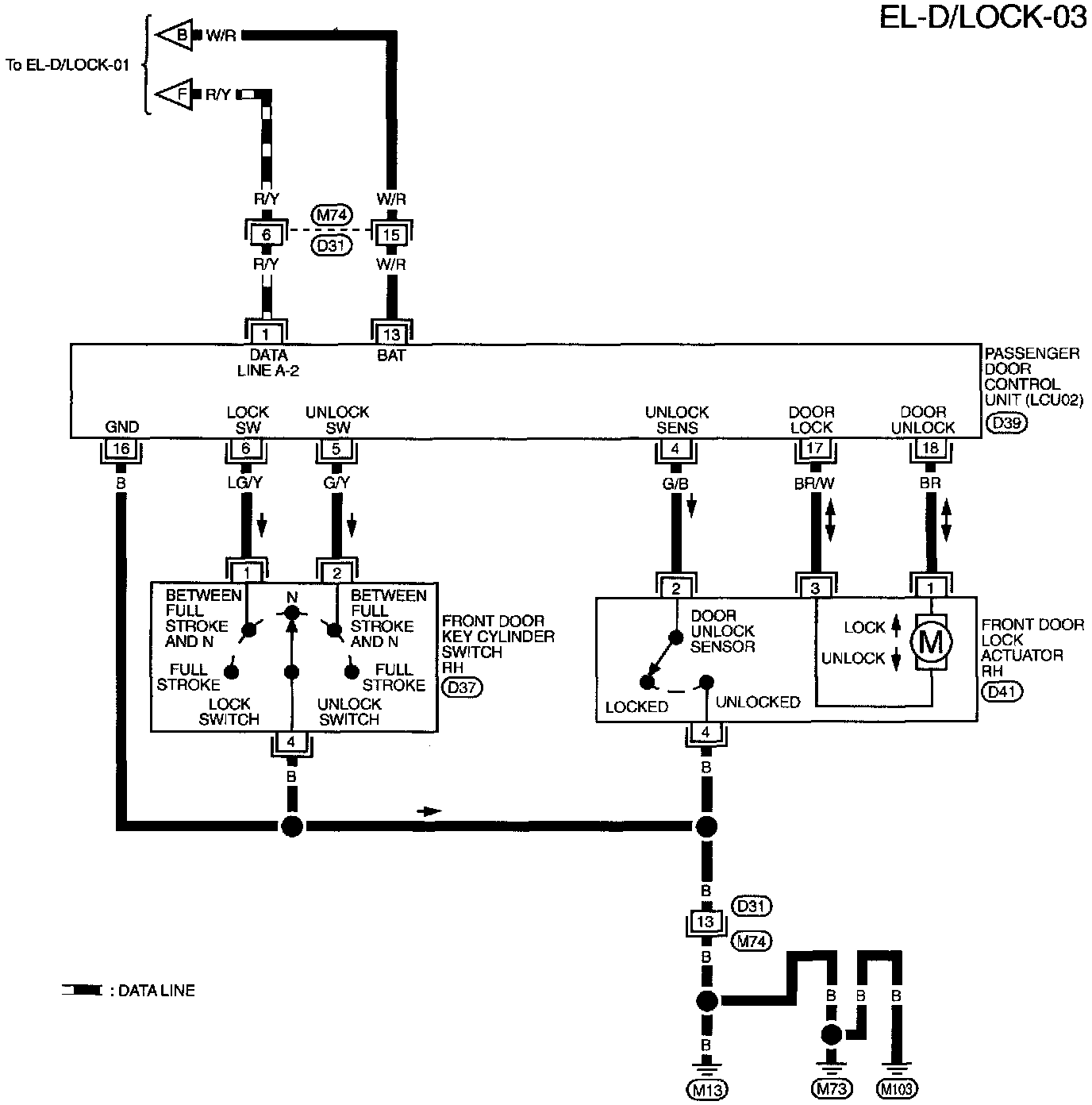

(Part 3 of 4)
Front Door Lock Actuator RH
Passenger Door Control Unit

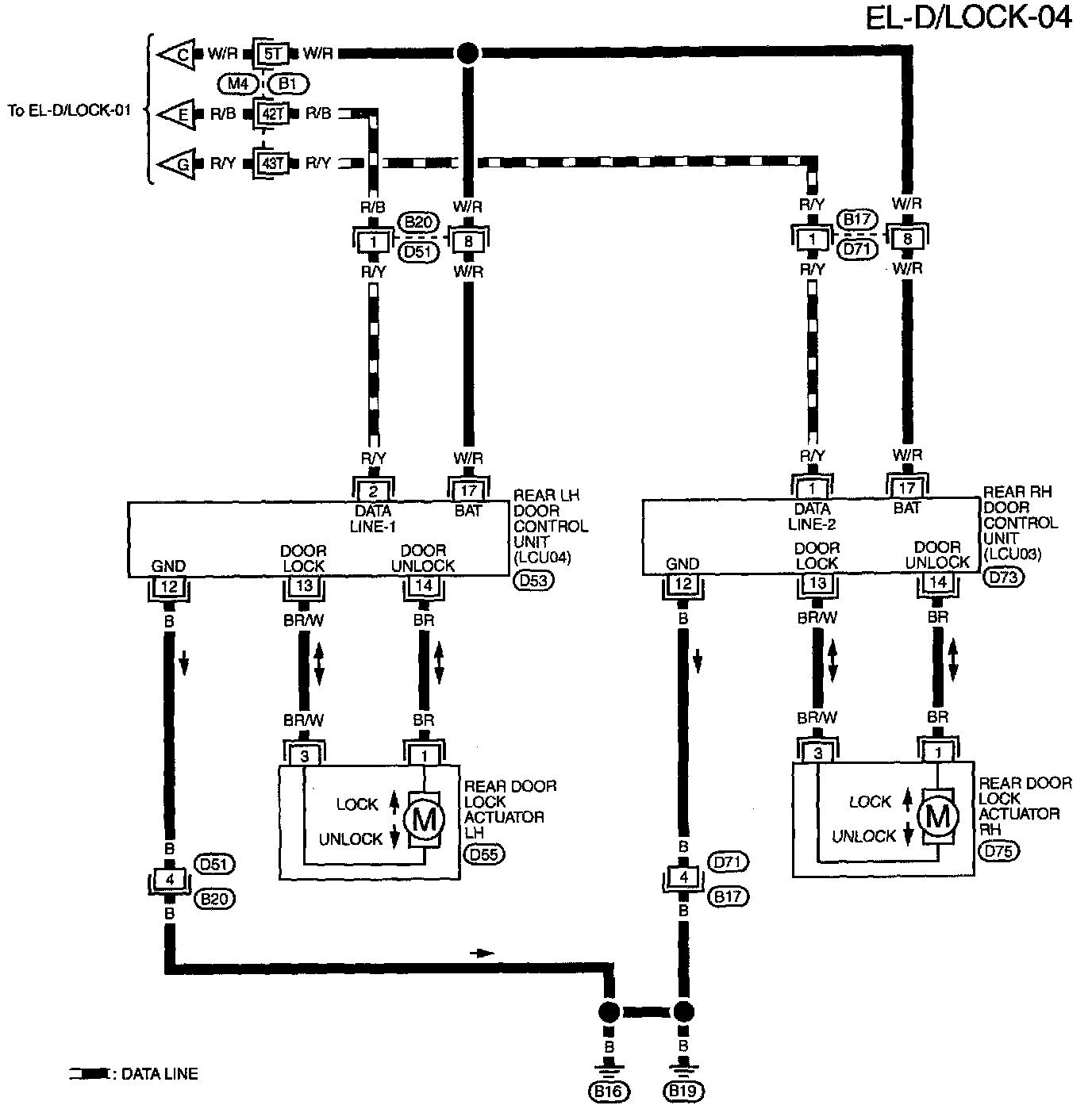

(Part 4 of 4)
Rear Door Lock Actuator LH/RH
Rear LH Door Control Unit
Rear RH Door Control Unit

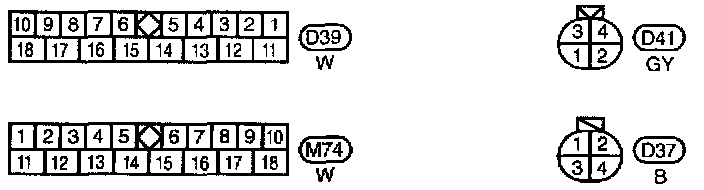

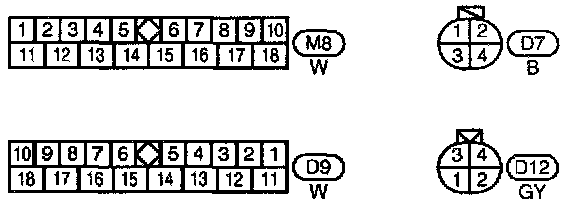

Circuit Connectors

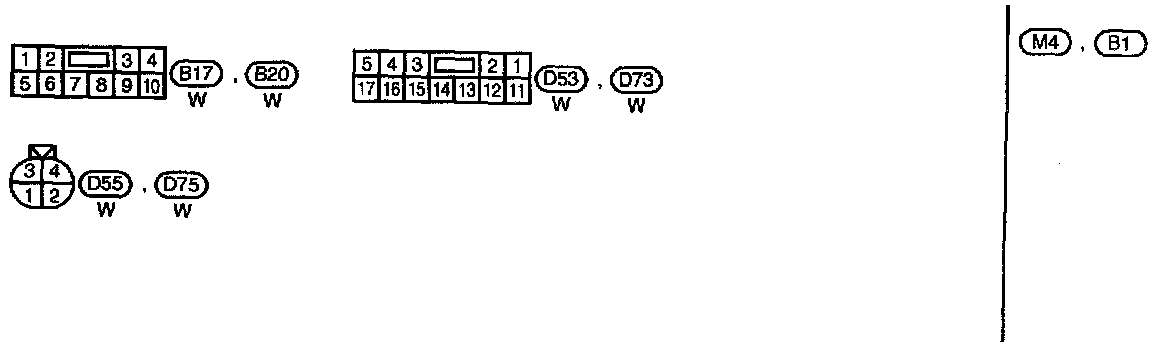

B1, E101, M3, M4 Body, Engine Room, Main Harness Terminal Arrangement

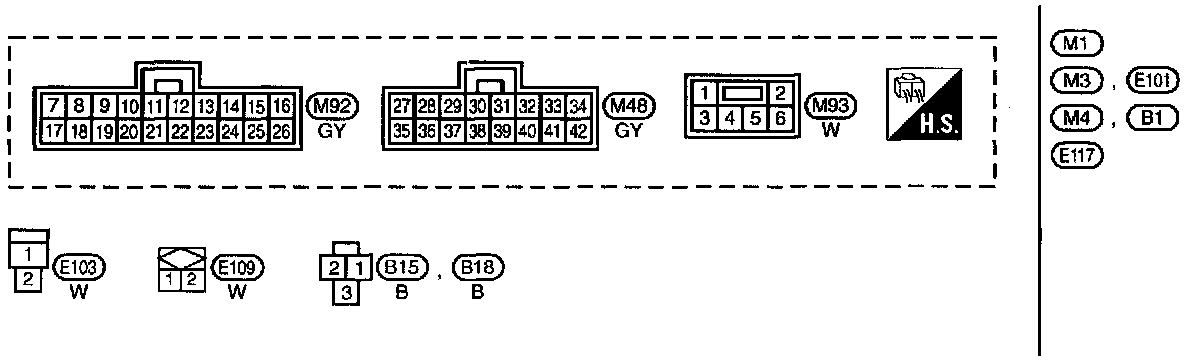

E117, M1 Fuse Block - Junction Box (J/B) - Terminal Arrangement
