Trouble Diagnosis

Preliminary Check

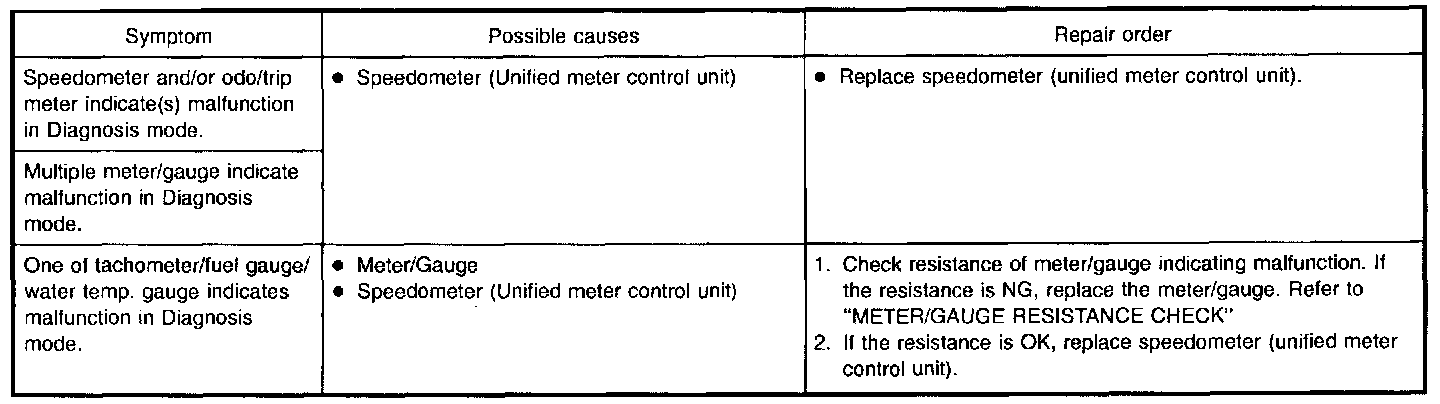

Symptom Chart 1 (Malfunction Is Indicated In Diagnosis Mode)




Before starting trouble above, perform PRELIMINARY CHECK.

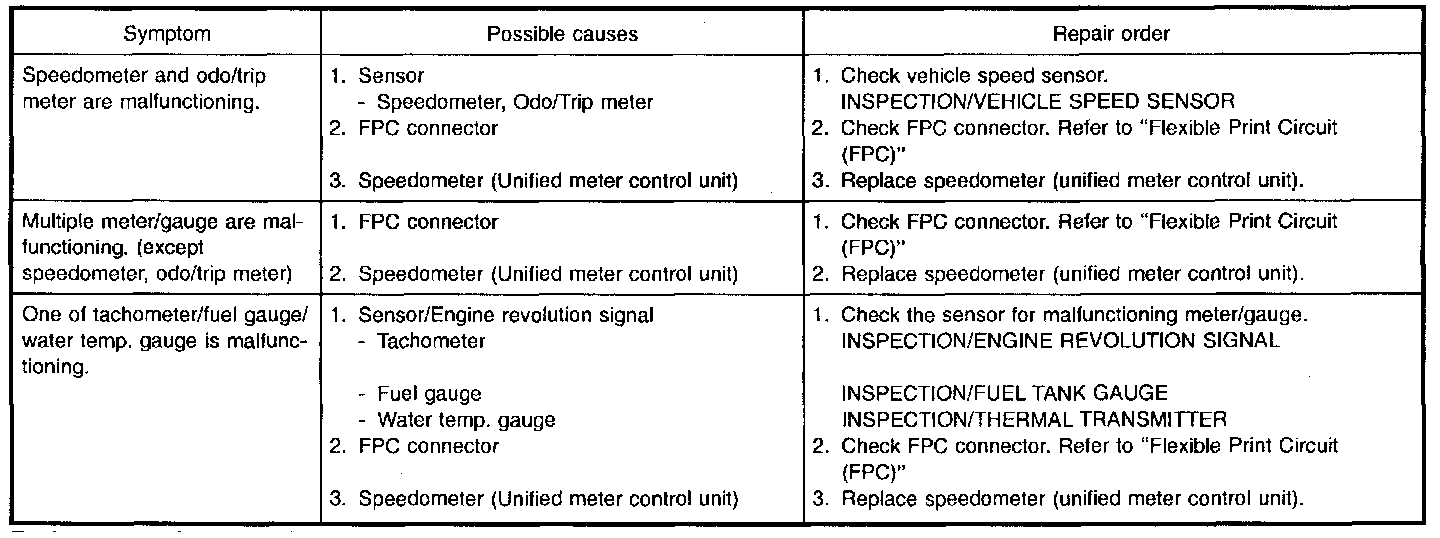

Symptom Chart 2 (No Malfunction Is Indicated In Diagnosis Mode)




Before starting trouble above, perform PRELIMINARY CHECK.

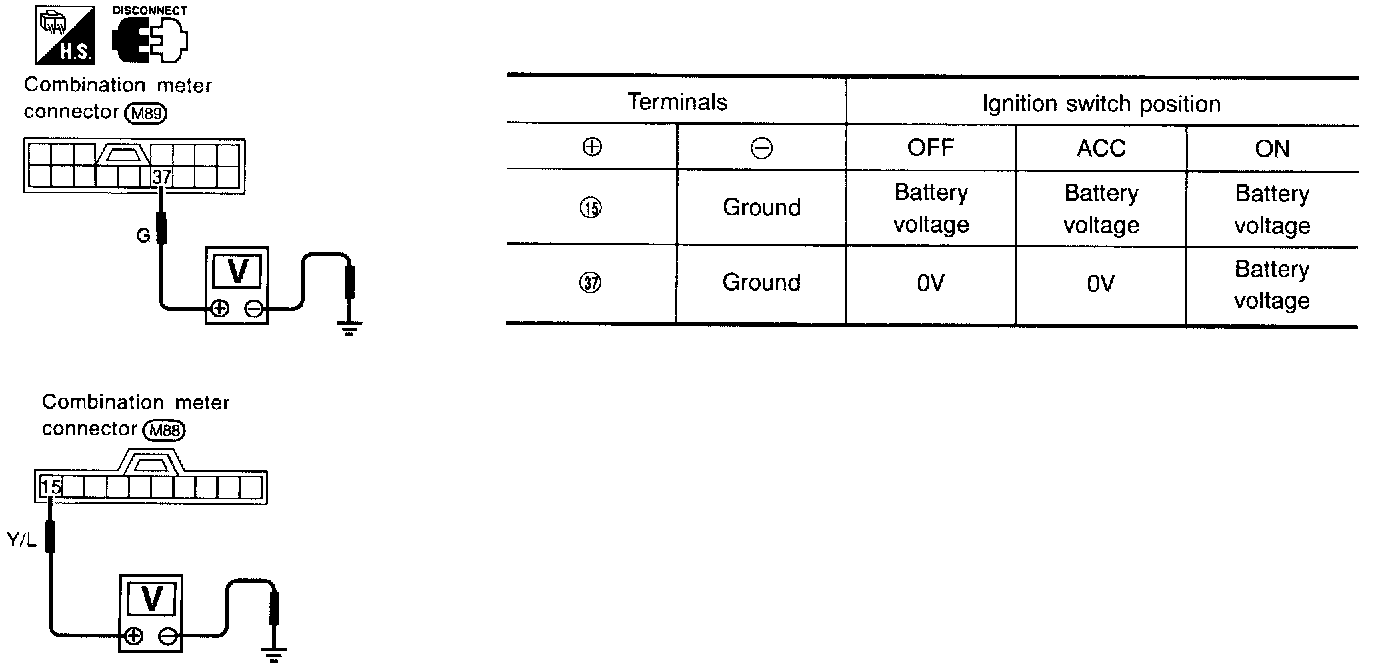

Power Supply Circuit Check




If NG, check the following.
^ 7.5 A fuse [No. (40), located in fuse block (J/B)]
^ 10 A fuse [No. (13), located in fuse block (J/B)]
^ Harness for open or short between fuse and combination meter




Ground Circuit Check




Inspection/Vehicle Speed Sensor





Inspection/Engine Revolution Signal

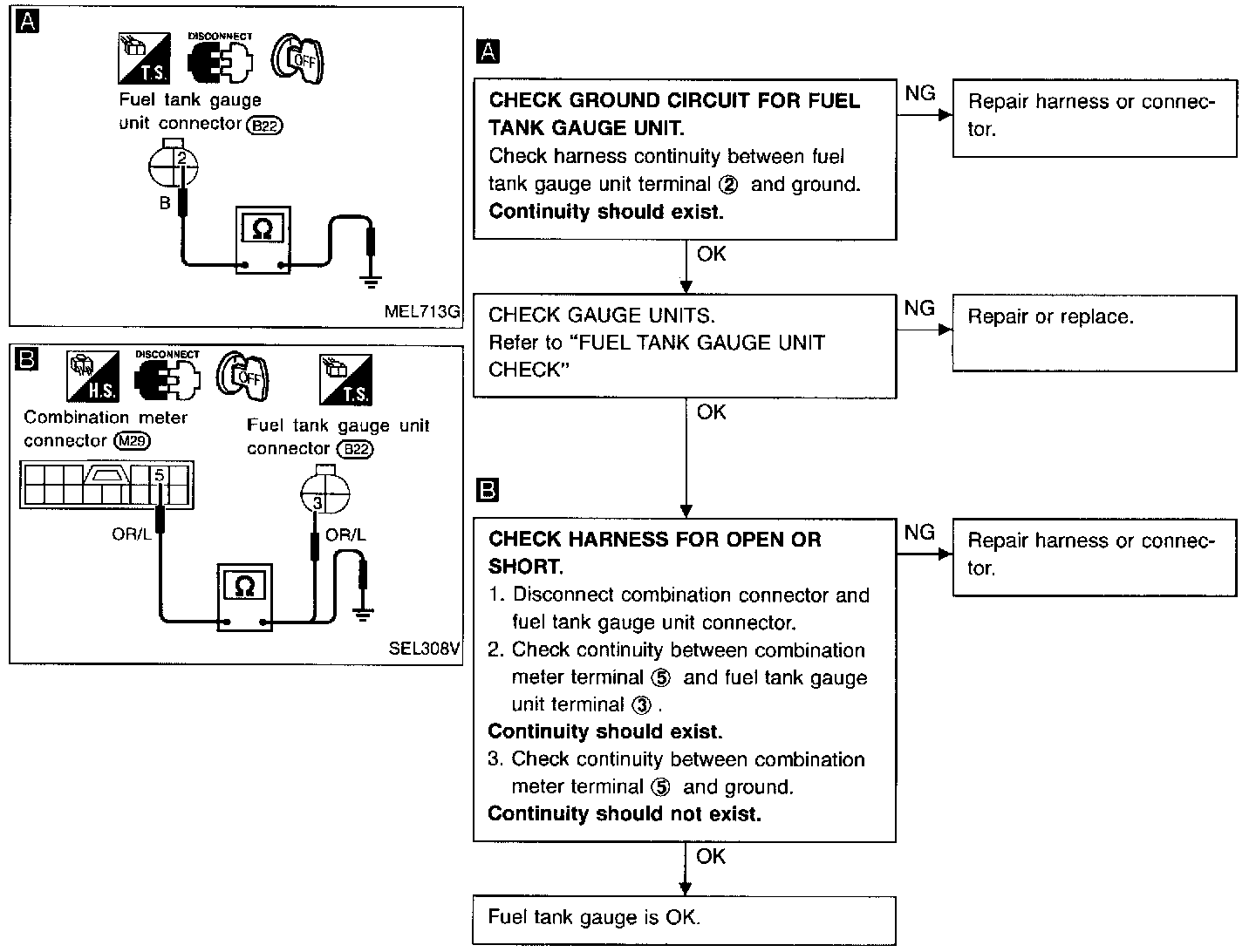

Inspection/Fuel Tank Gauge

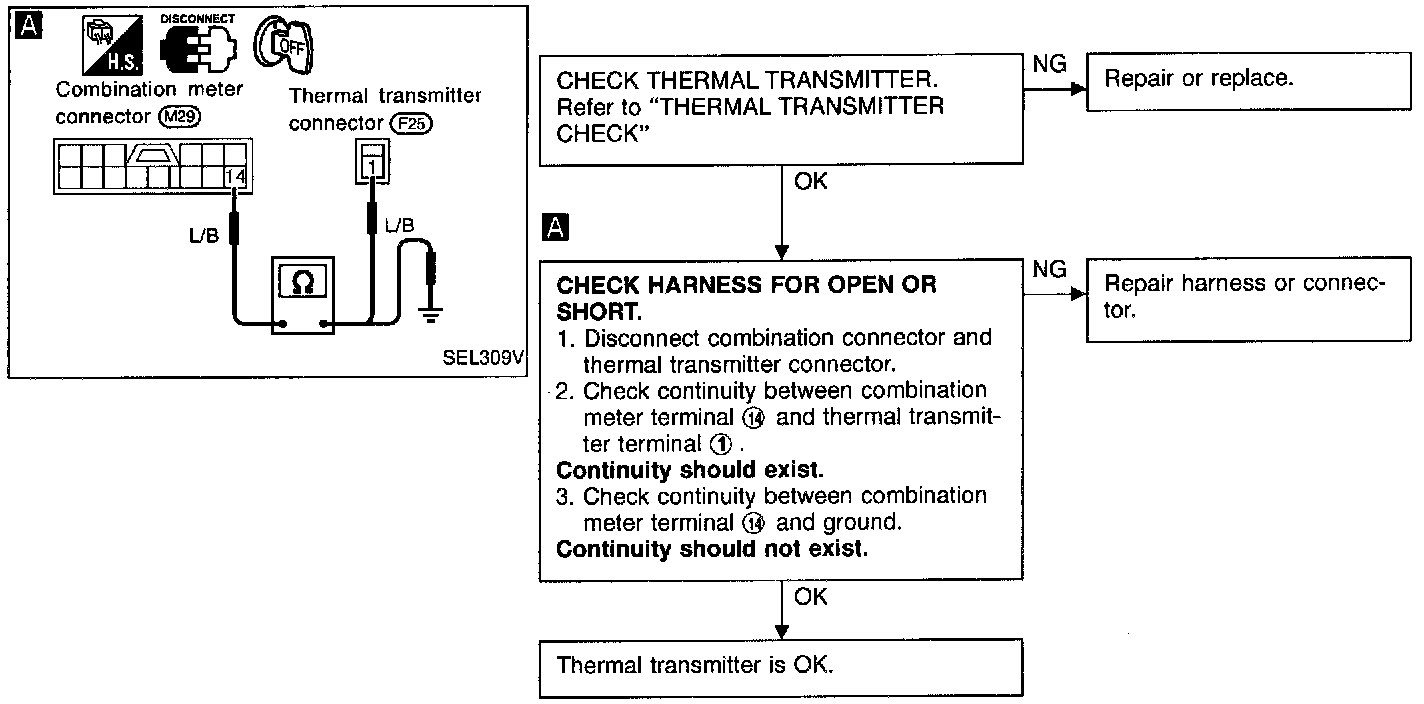

Inspection/Thermal Transmitter
