Window Antenna Repair

Element Check

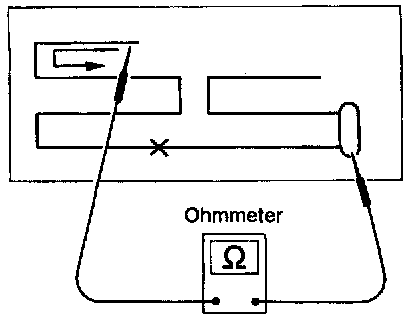

1. Attach probe circuit tester (in ohm range) to antenna terminal on each side.




2. If an element is broken, no continuity will exit.




^ To locate broken point, move probe along element. Tester needle will swing abruptly when probe passes the point.

Element Repair

See "Filament repair" of Rear Window Defogger.
