Wiring Diagrams

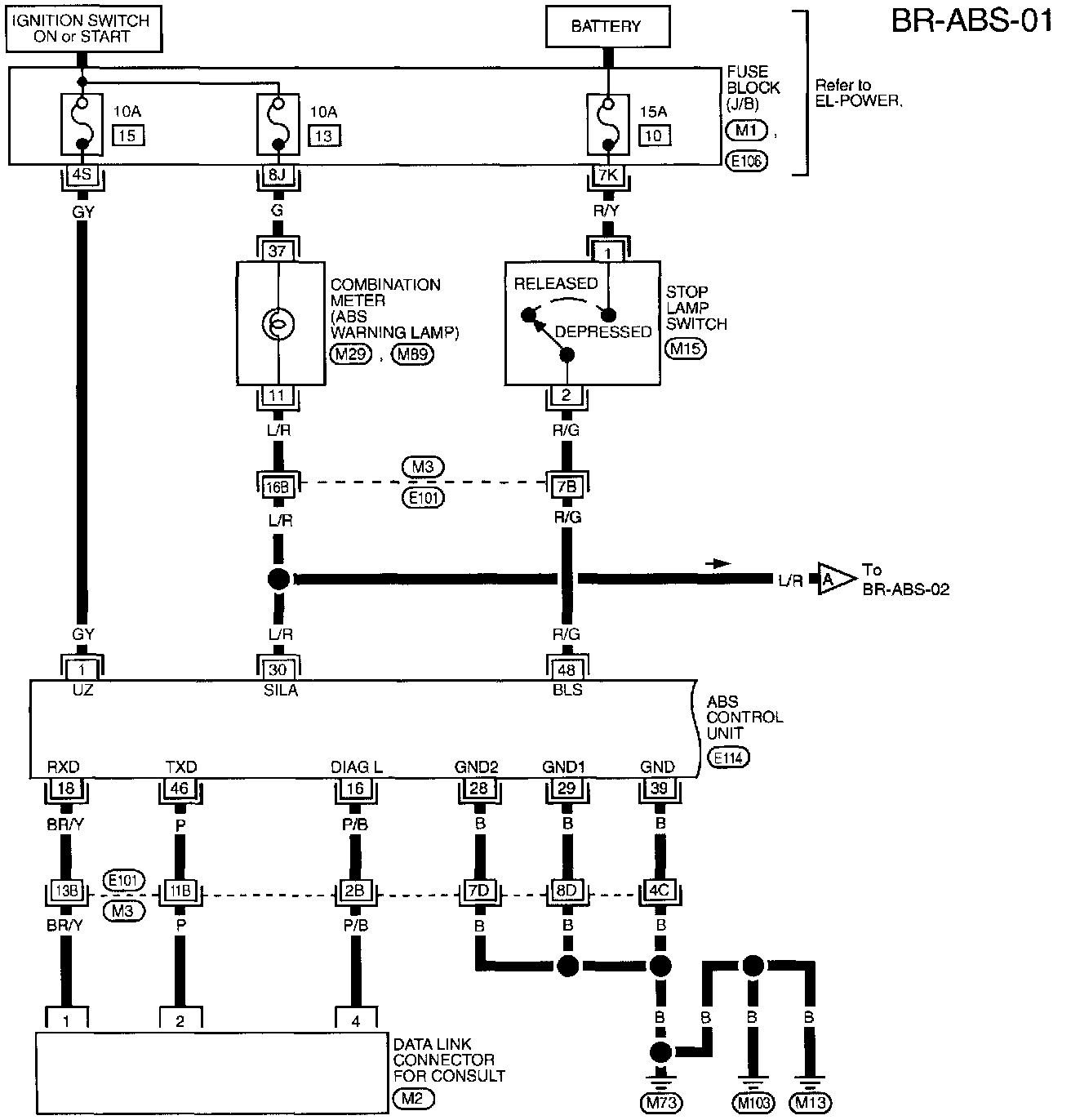

Circuit Diagram: Part 1 of 3



ABS Control unit
Combination Meter (ABS warning Lamp)
Data Link Connector For Consult
Fuse Block (J/B)
Stop Lamp Switch

Connector Views





Circuit Diagram: Part 2 of 3



ABS Actuator
ABS Control Unit
ABS Motor Relay
ABS Solenoid Valve Relay

Connector Views

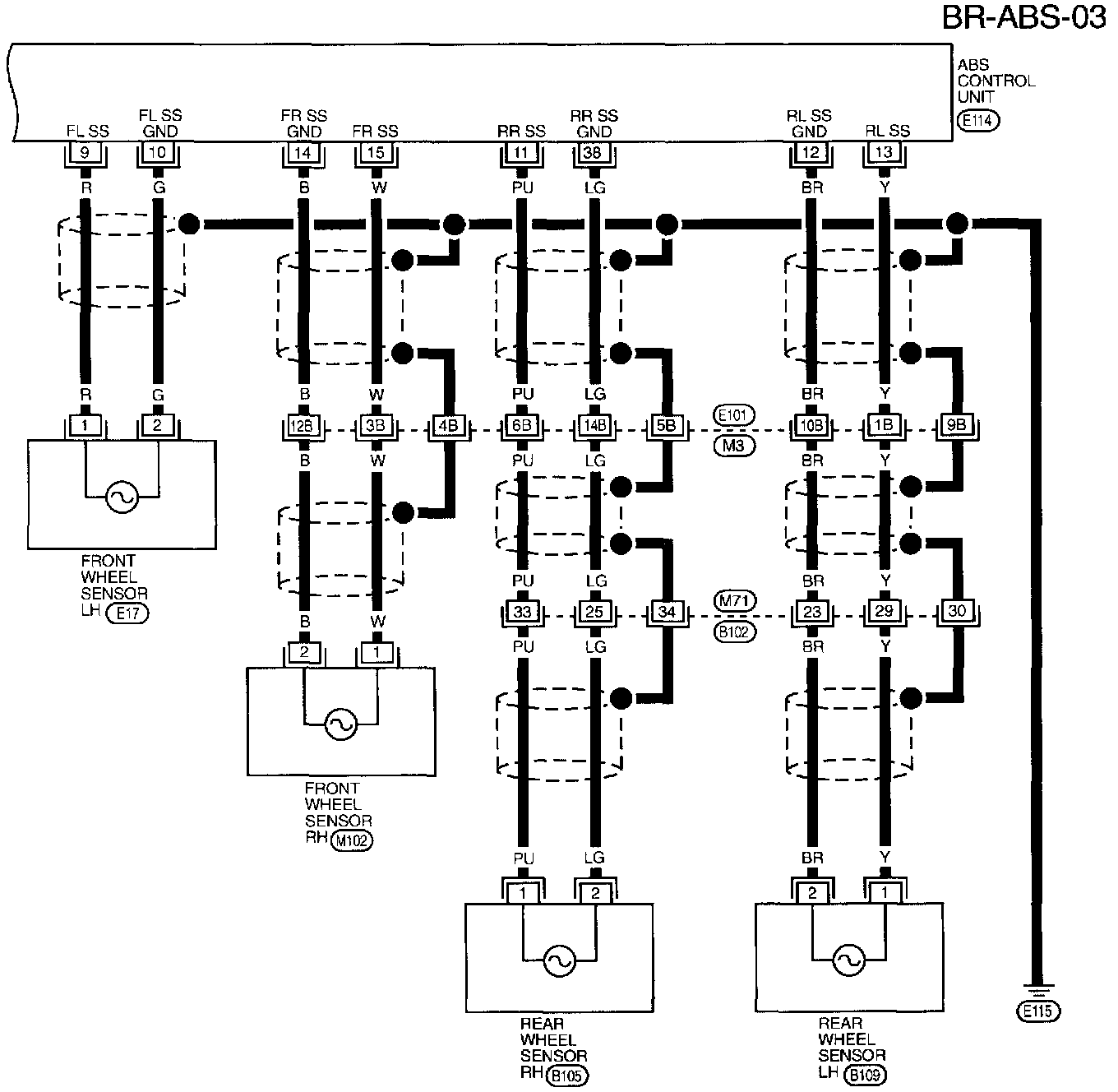

Circuit Diagram: Part 3 of 3



ABS Control Unit
Front Wheel Sensor LH/RH
Rear Wheel Sensor LH/RH

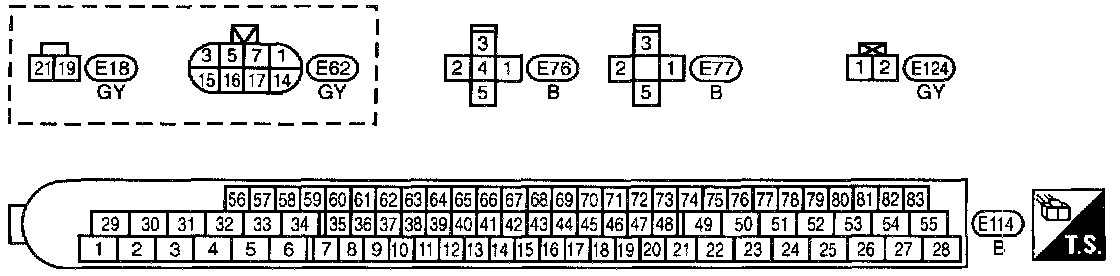

Connector Views





E101, M3 Body, Engine Room, Main Harness Terminal Arrangement





E106, M1 Fuse Block - Junction Box (J/B) - Terminal Arrangement
