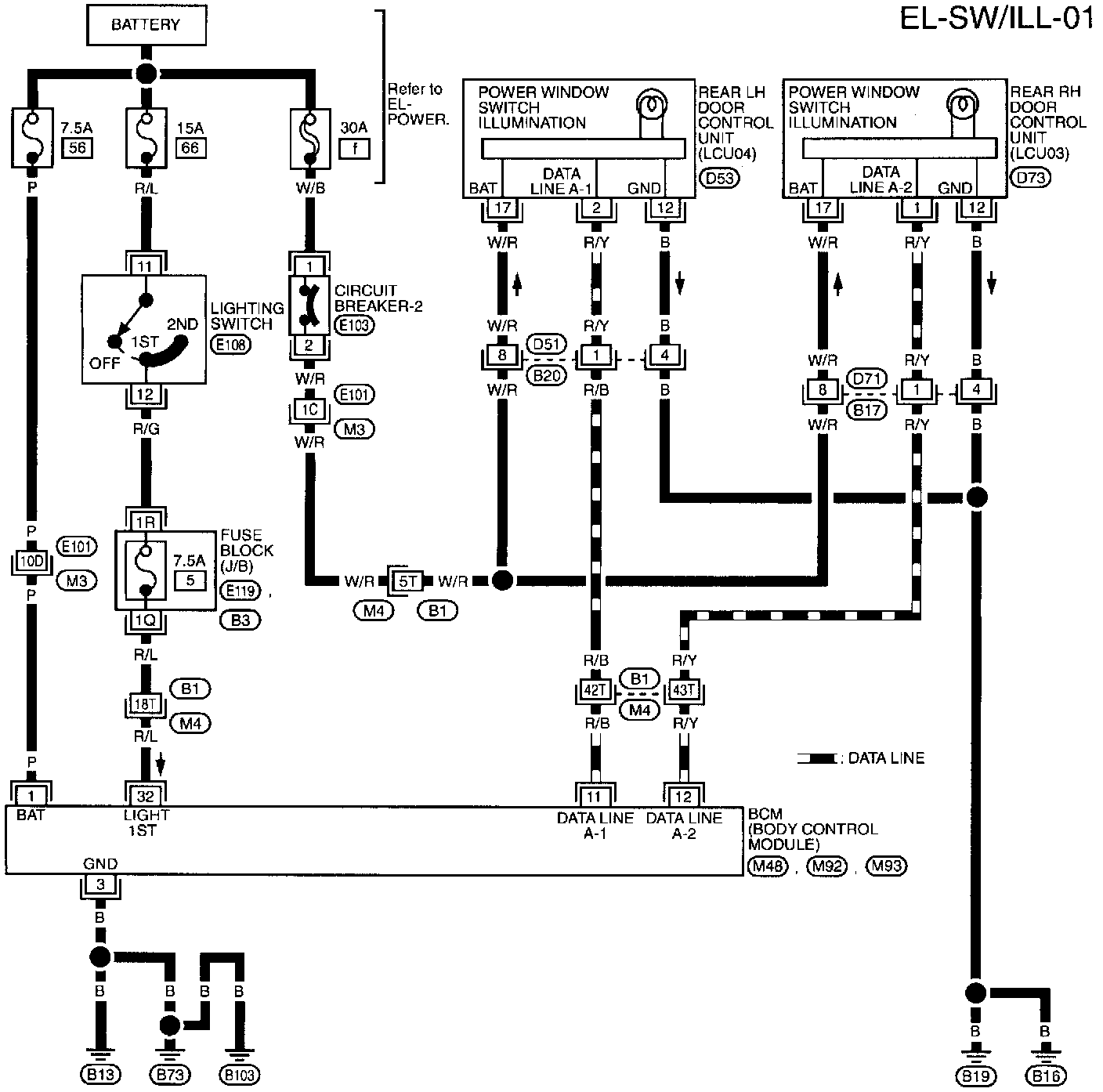

Rear Power Window Switch Illumination-IVMS
Circuit Diagrams
Circuit Connectors
B1, E101, M3, M4 Body, Engine Room, Main Harness Terminal Arrangement
B3, E119 Fuse Block - Junction Box (J/B) - Terminal Arrangement
M48, M92, M93 Electrical Units - Terminal Arrangements
