Intake Door

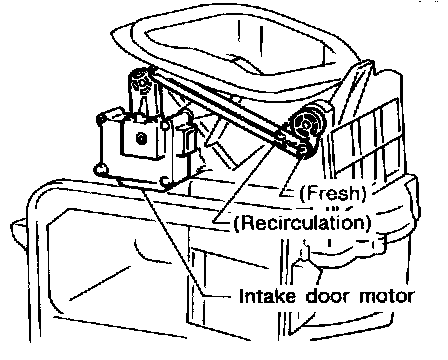

1. Install intake door motor on intake unit and connect it to main harness.
Make sure lever of intake door motor is fitted in the slit of intake door link.

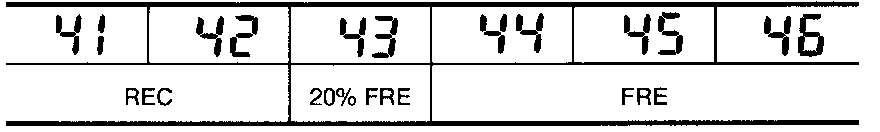

2. Set up code No.41 in Self-diagnosis STEP 4.
3. Make sure intake door operates properly when changing from code No.41 to 46 & by pushing DEF switch.
