Air Conditioner Control System
Air Conditioner Control System

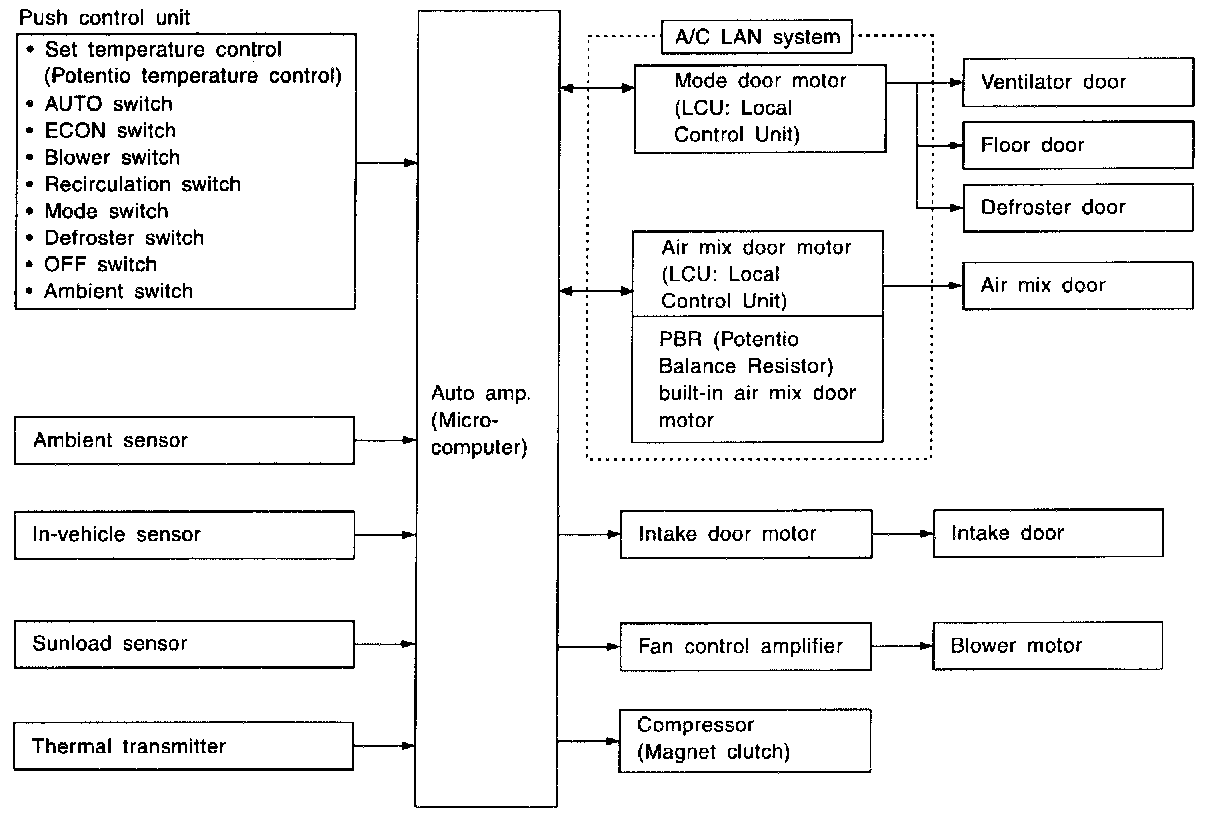

The control system consists of a) input sensors and switches, b) the
auto amp.
(microcomputer), and c) outputs. The relationship of these components is shown in the diagram:
