Meter and Gauges





Combination Meter

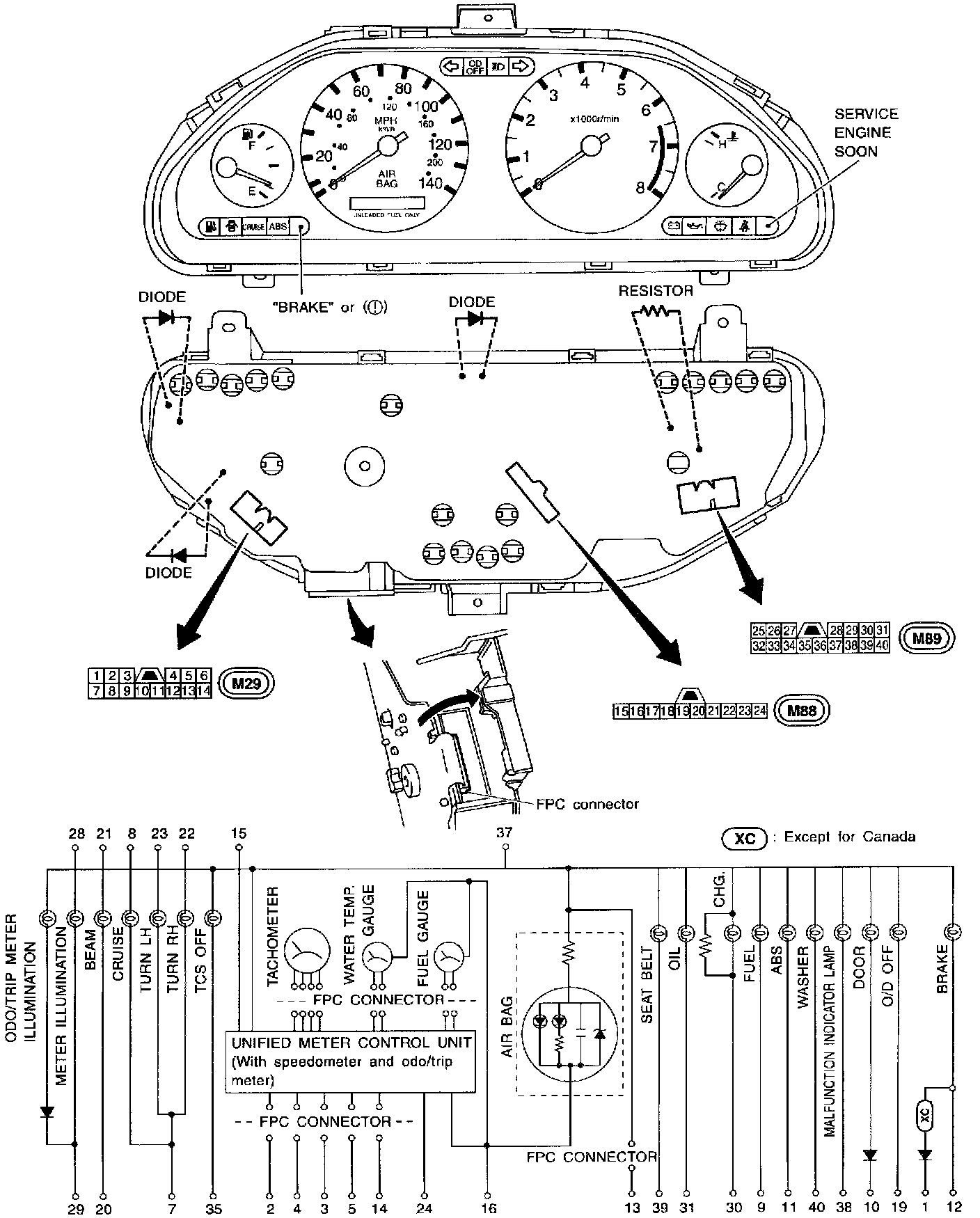

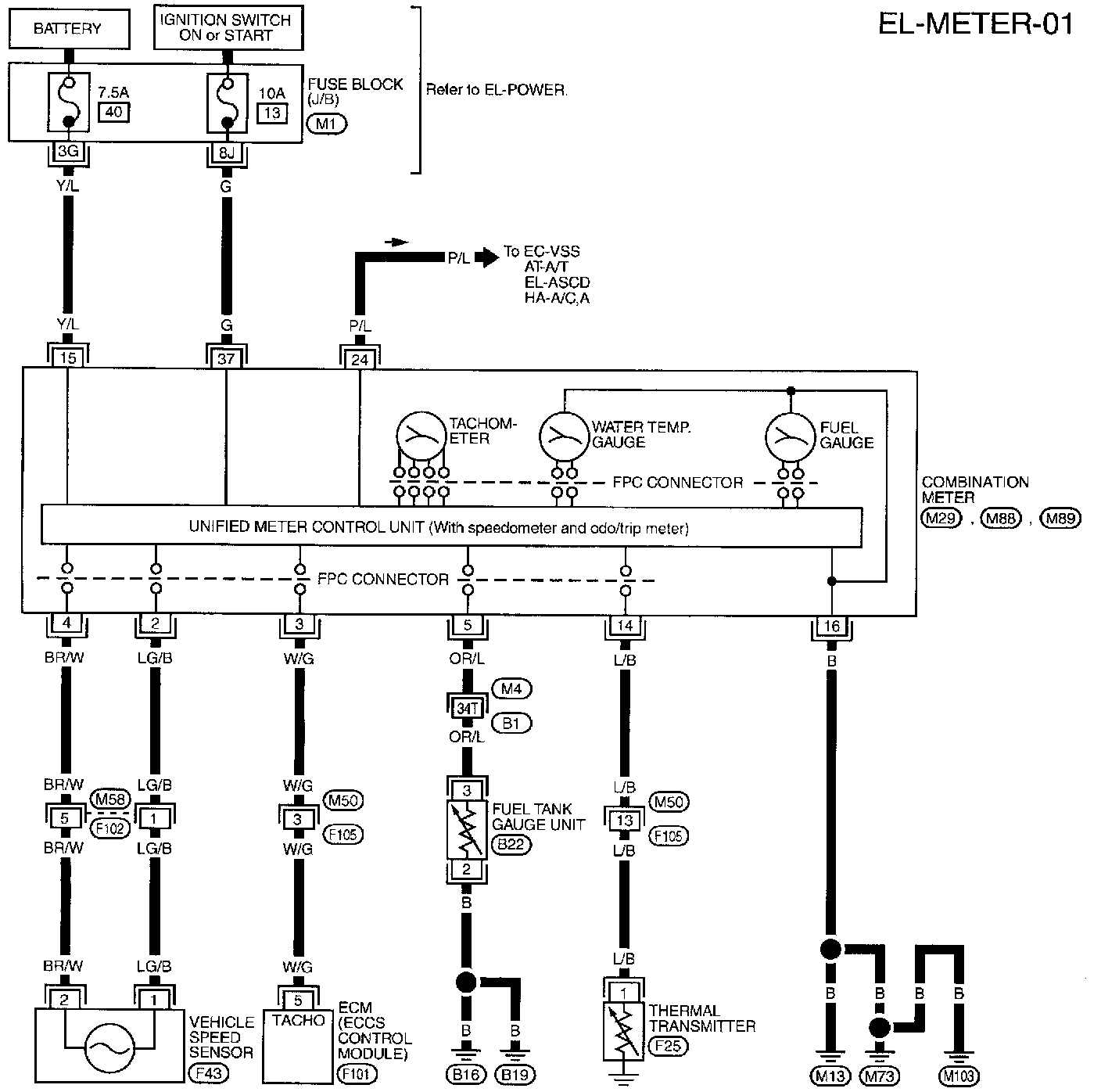

Circuit Diagram

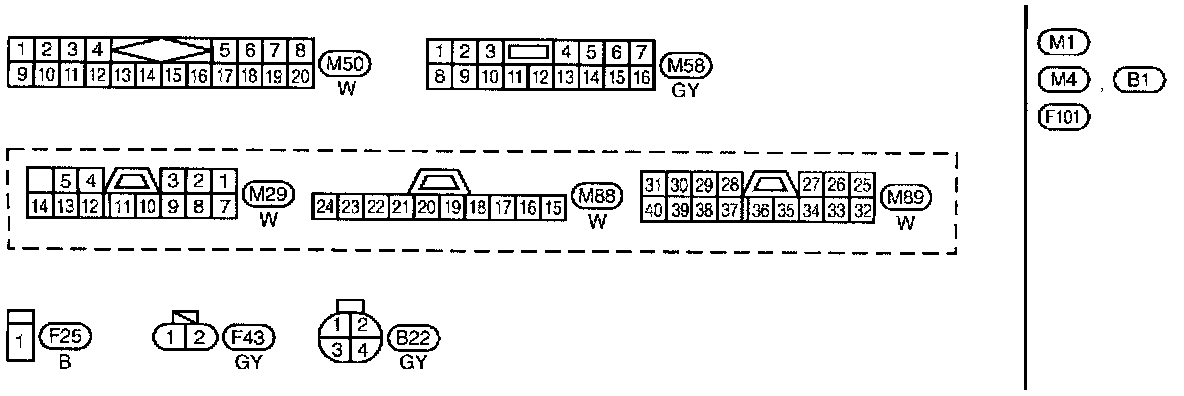

Circuit Connectors





B1, M4 Body, Engine Room, Main Harness Terminal Arrangement





M1 Fuse Block - Junction Box (J/B) - Terminal Arrangement





F101 Electrical Units - Terminal Arrangements
