Carrier Bearings, M/T

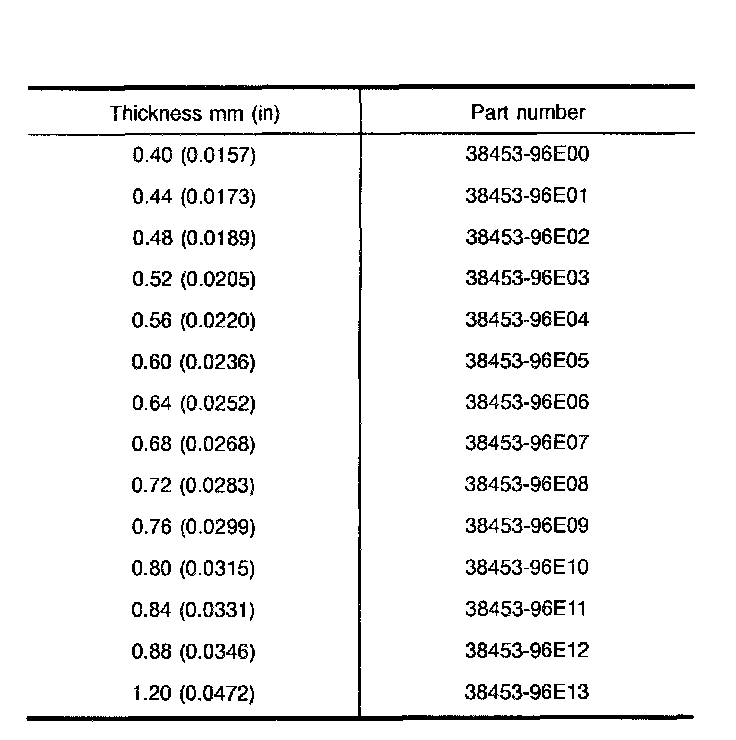

AVAILABLE SHIM
-INPUT SHAFT END PLAY AND MAINSHAFT AND DIFFERENTIAL SIDE BEARING PRELOAD AND ADJUSTING SHIM





BEARING PRELOAD AND END PLAY





TURNING TORQUE (NEW BEARING)

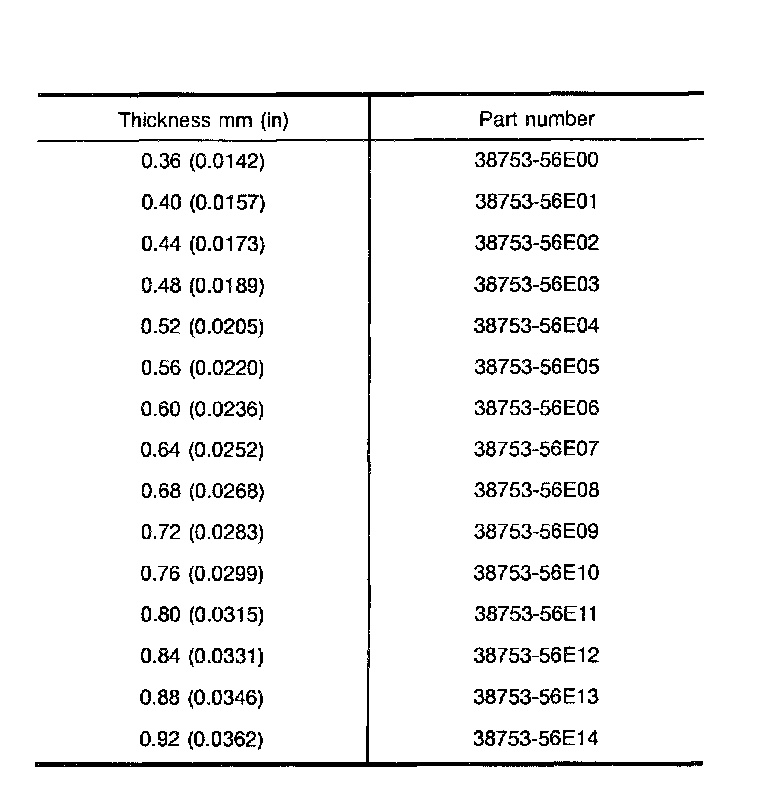

DIFFERENTIAL SIDE BEARING ADJUSTING SHIM





RS5F50A





RS5F50V

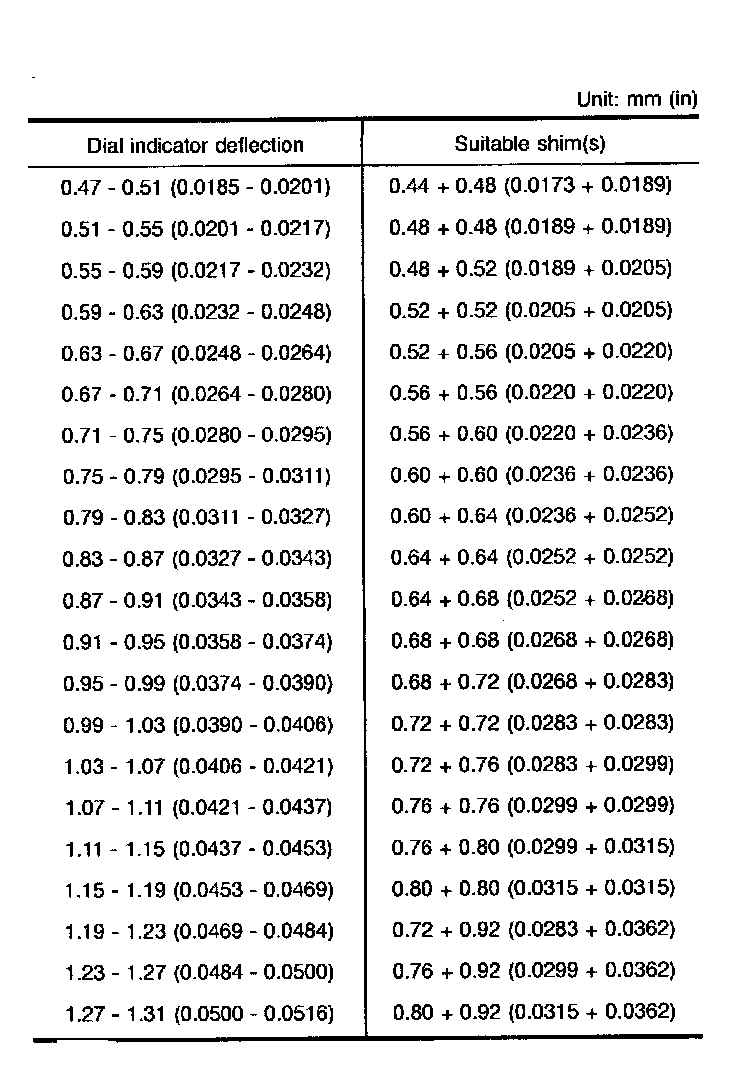

TABLE FOR SELECTING DIFFERENTIAL SIDE BEARING ADJUSTING SHIM(S)





RS5F50A





RS5F50V
