Electrical Diagrams

Schematic

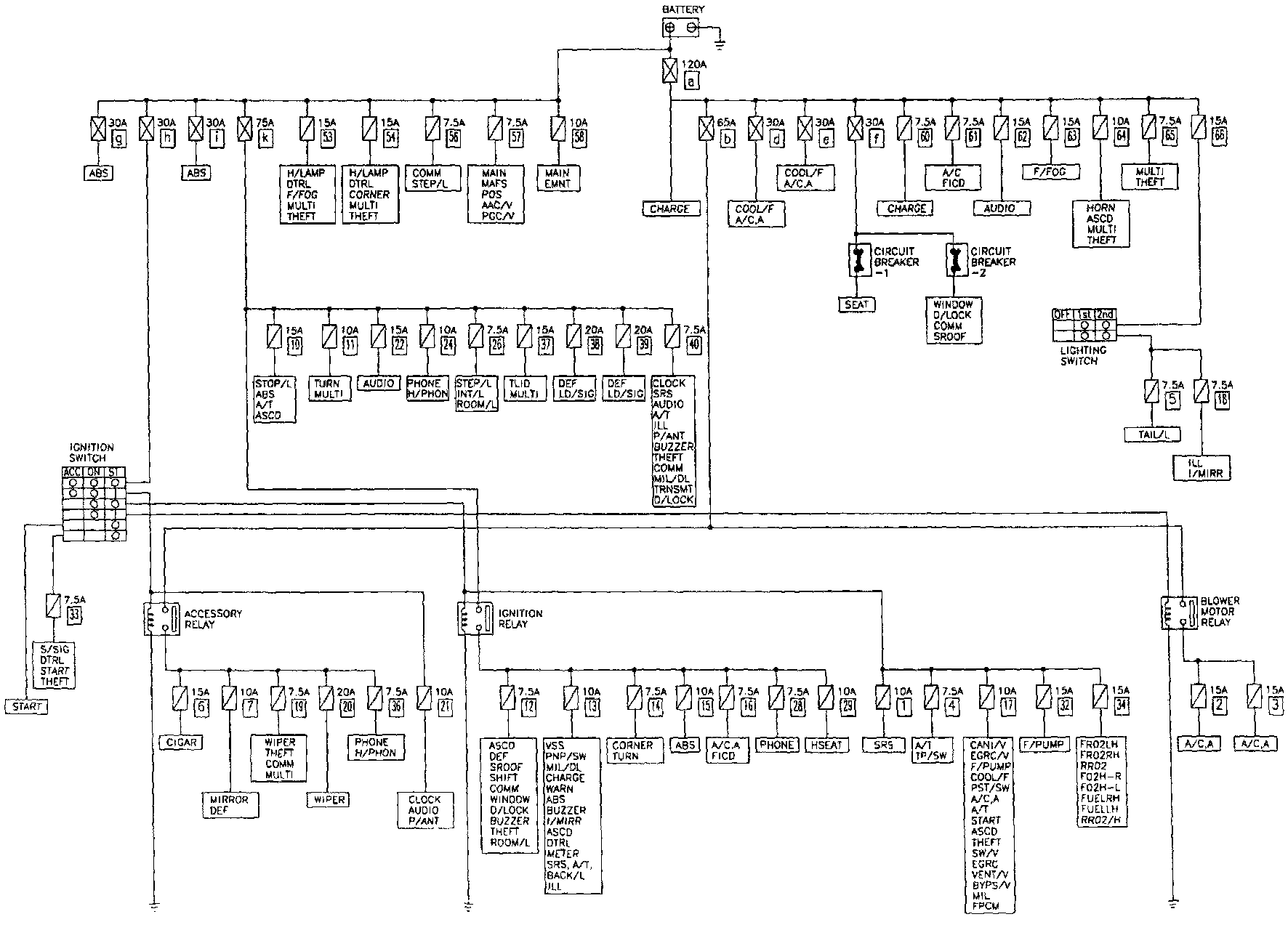

Battery Power Supply - Ignition Switch In Any Position

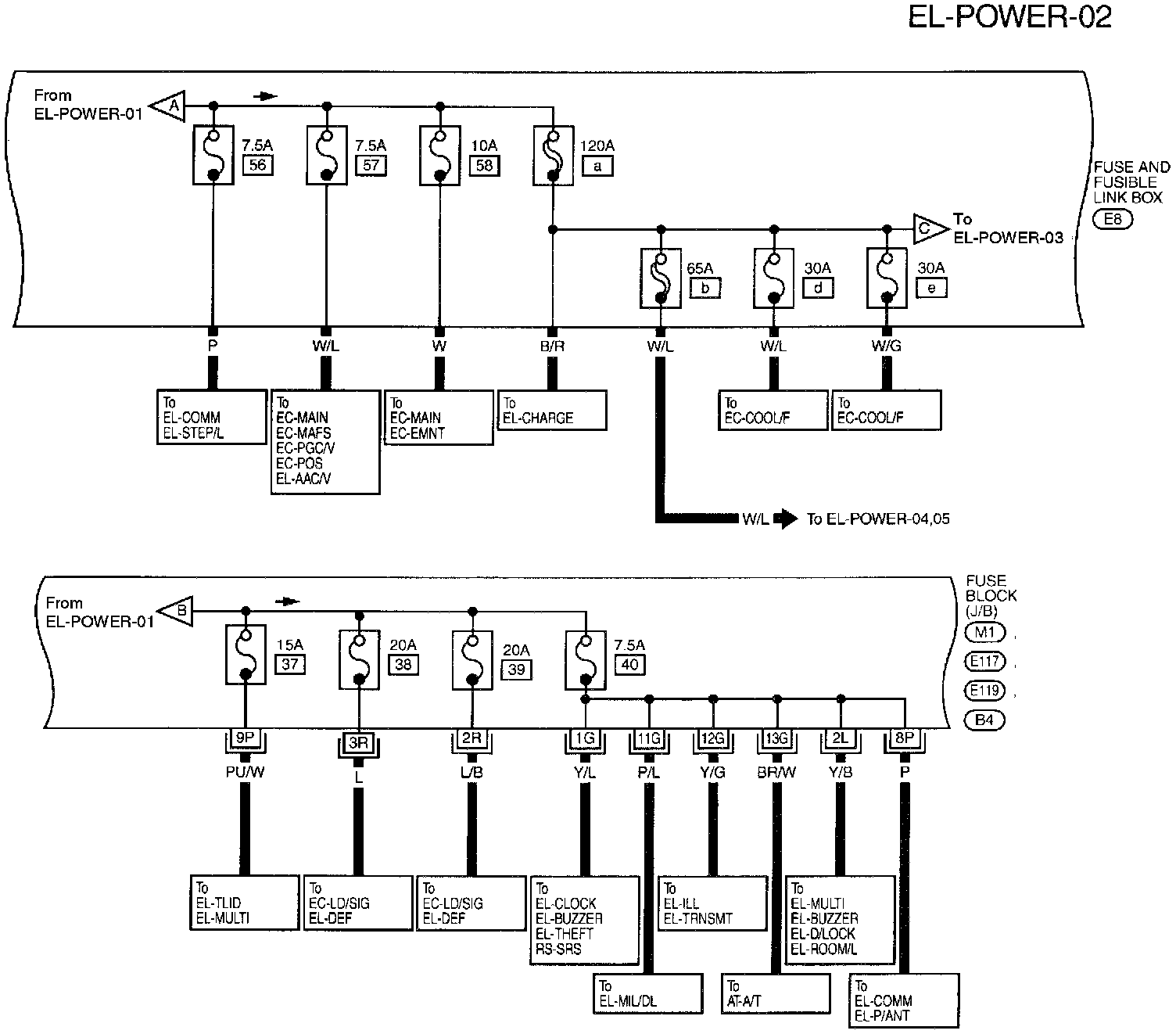

(Part 1 Of 3)
Fuse Block (J/B)
Fuse and Fusible Link Box

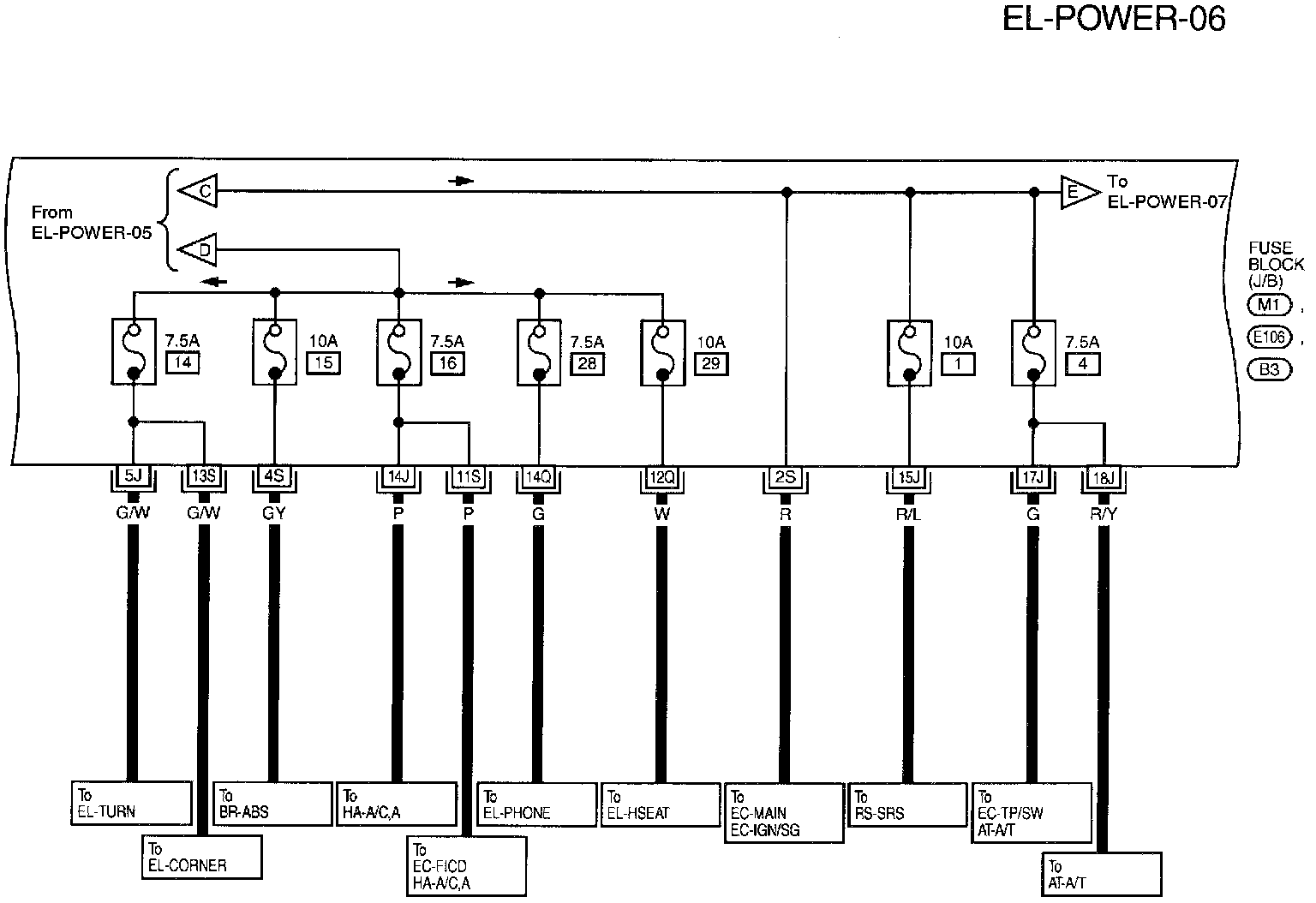

(Part 2 Of 3)
Fuse and Fusible Link Box
Fuse Block (J/B)

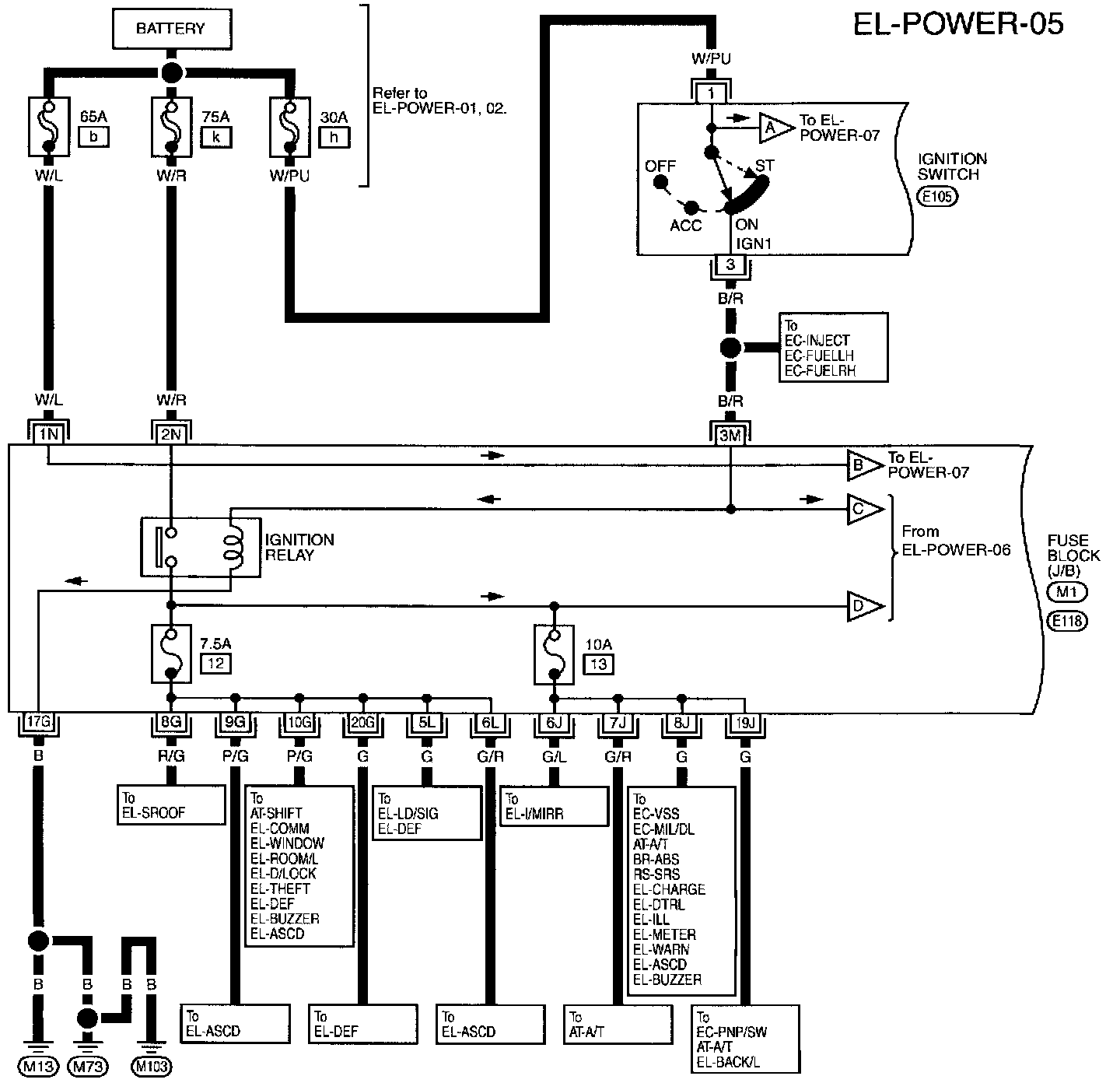

(Part 3 Of 3)
Lighting Switch
Fuse Block (J/B)
Fuse and Fusible Link Box

Circuit Diagrams











Circuit Connectors

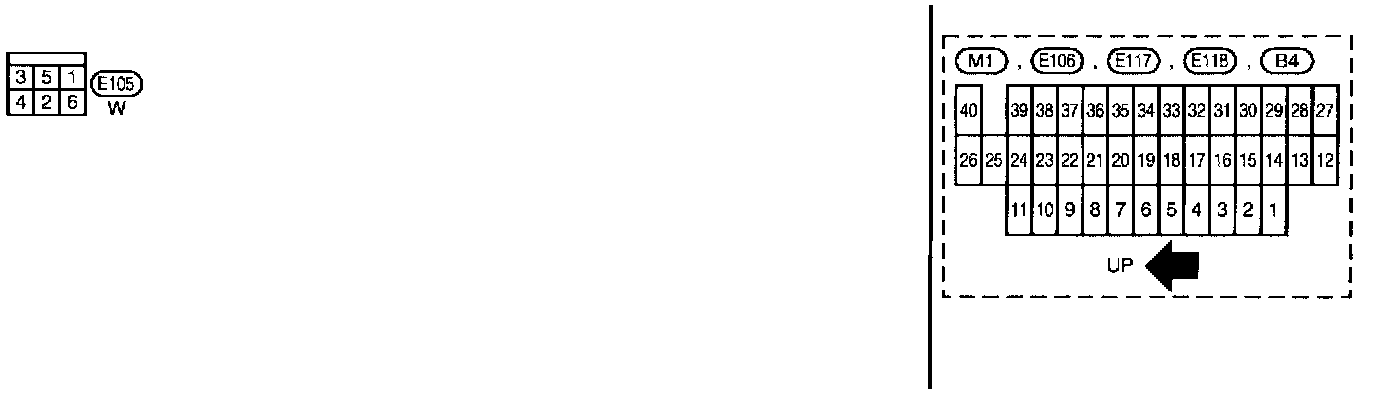

B3, B4, E106, E117, E119, E120, M1 Fuse Block - Junction Box (J/B) - Terminal Arrangement


Accessory Power Supply - Ignition Switch In "ACC" and "ON"




Fuse Block (J/B)
Ignition Switch

Circuit Diagrams





Circuit Connectors

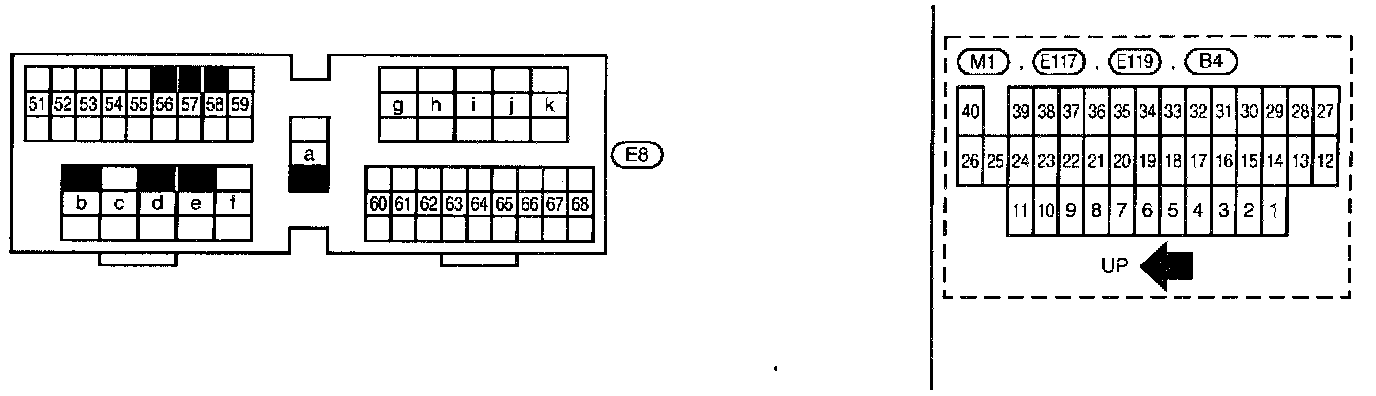

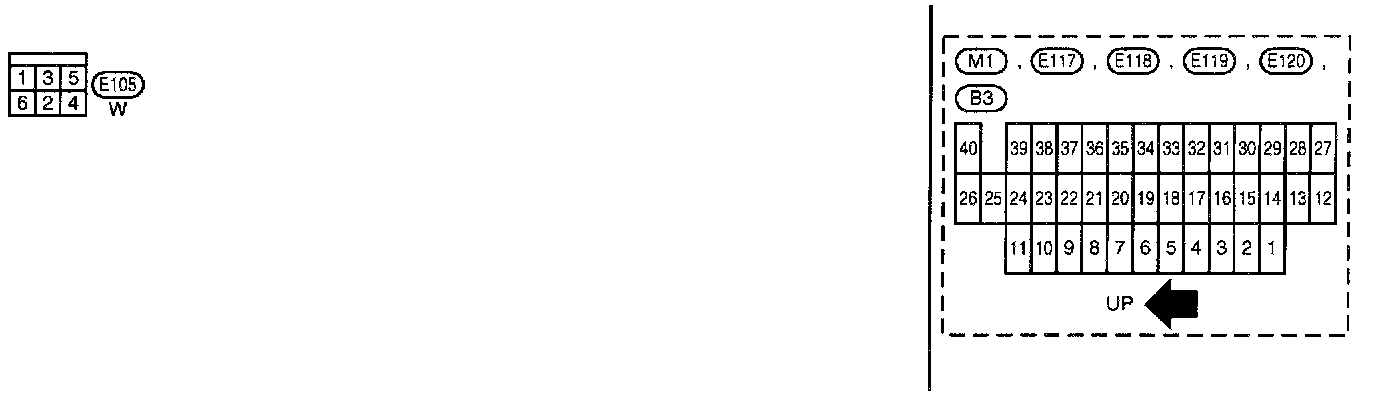

B3, E117, E118, E119, E120, M1 Fuse Block - Junction Box (J/B) - Terminal Arrangement

Ignition Power Supply - Ignition Switch In "ON" and/or "START"




Fuse Block (J/B)
Ignition Switch




Fuse Block (J/B)




Fuse Block (J/B)
Ignition Switch

Circuit Diagrams







Circuit Connectors

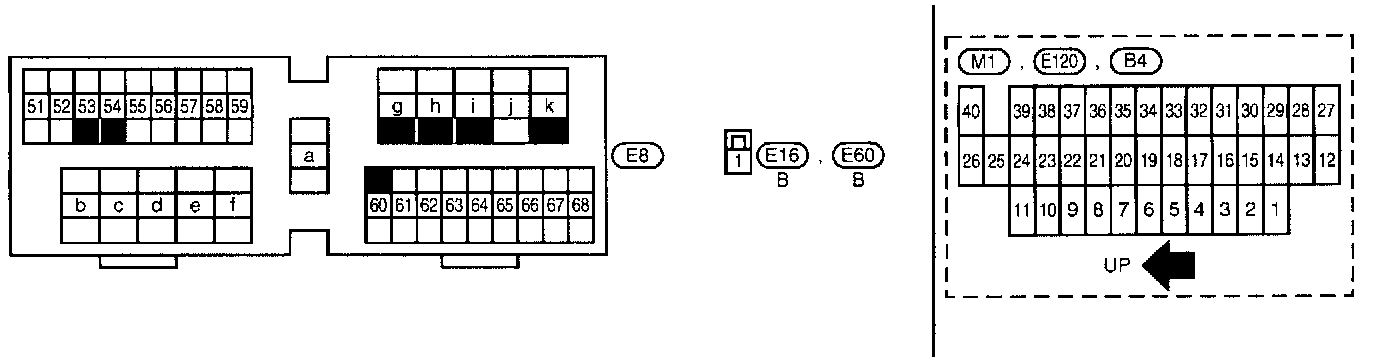

B3, B4, E106, E117, E118, M1 Fuse Block - Junction Box (J/B) - Terminal Arrangement
