Electrical Diagrams
M/T Models:

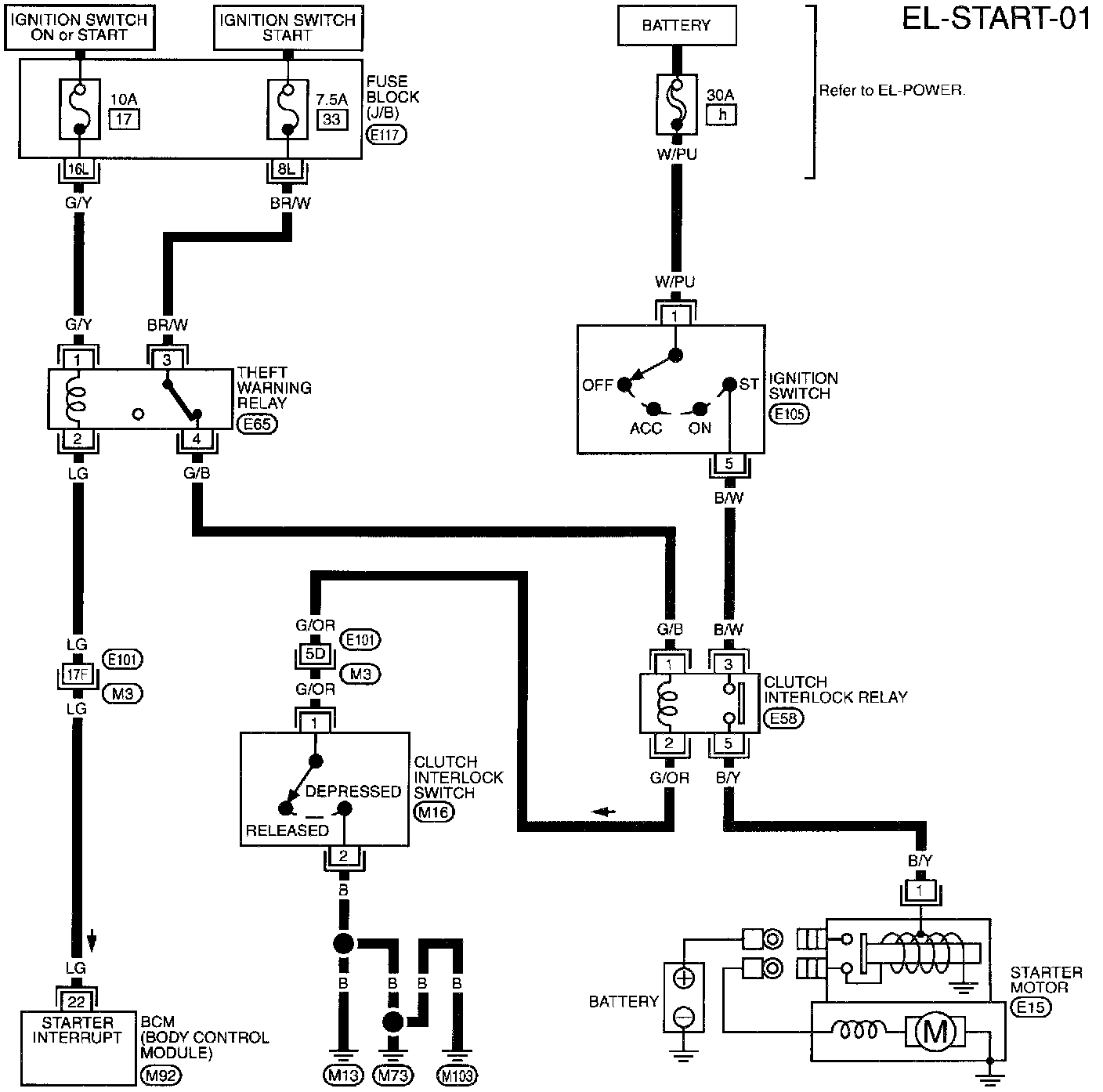

Circuit Diagram
M/T Models:

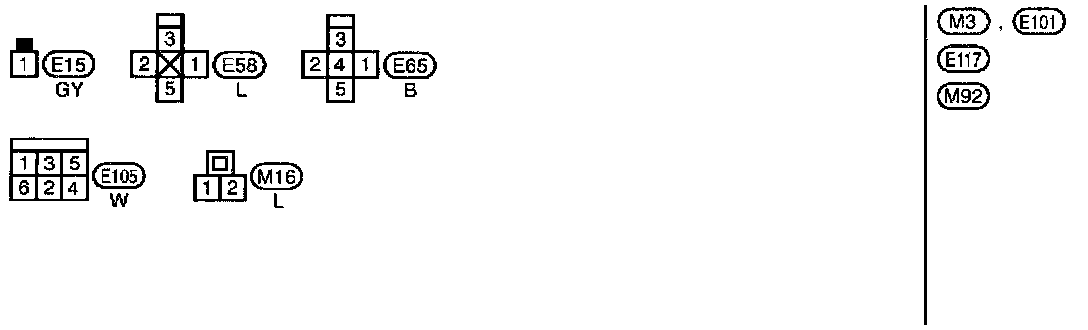

Circuit Connectors
A/T Models:

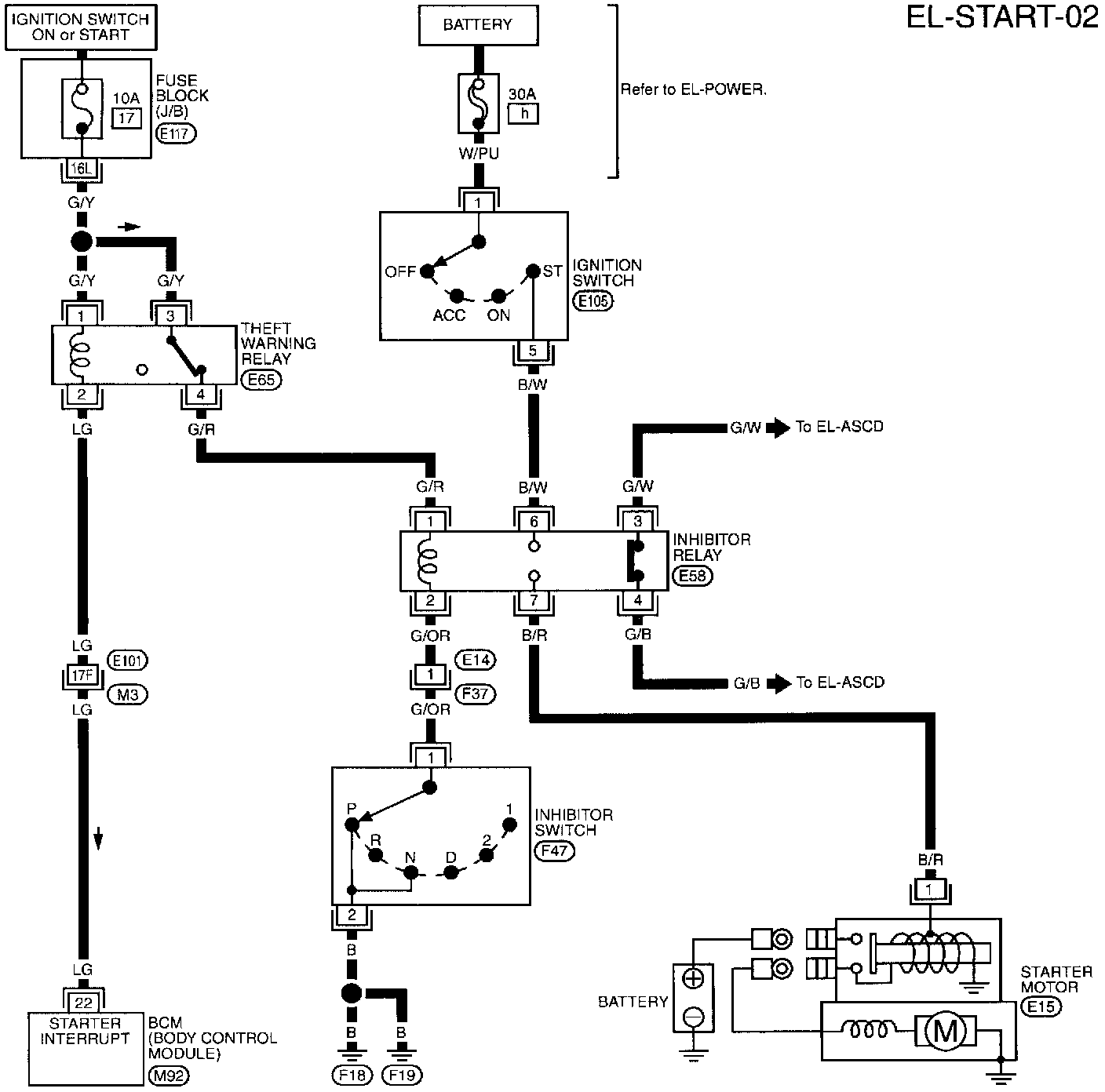

Circuit Diagram
A/T Models:

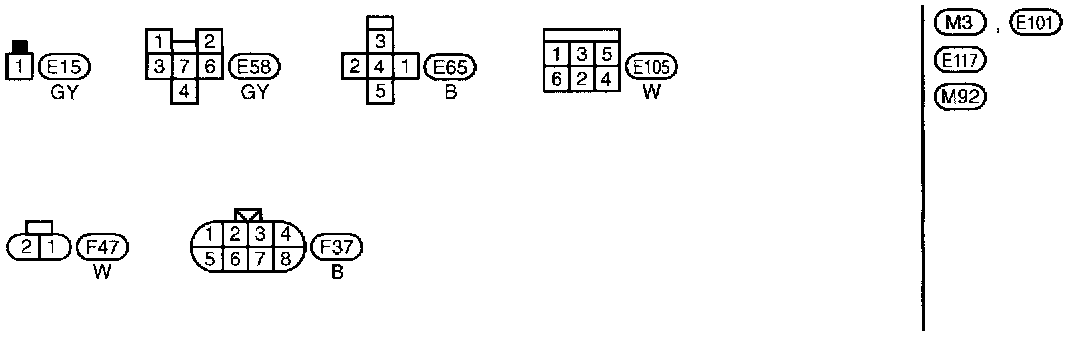

Circuit Connector
E101, M3 Body, Engine Room, Main Harness Terminal Arrangement
E117 Fuse Block - Junction Box (J/B) - Terminal Arrangement
M92 Electrical Units - Terminal Arrangements
