Shift Mechanism

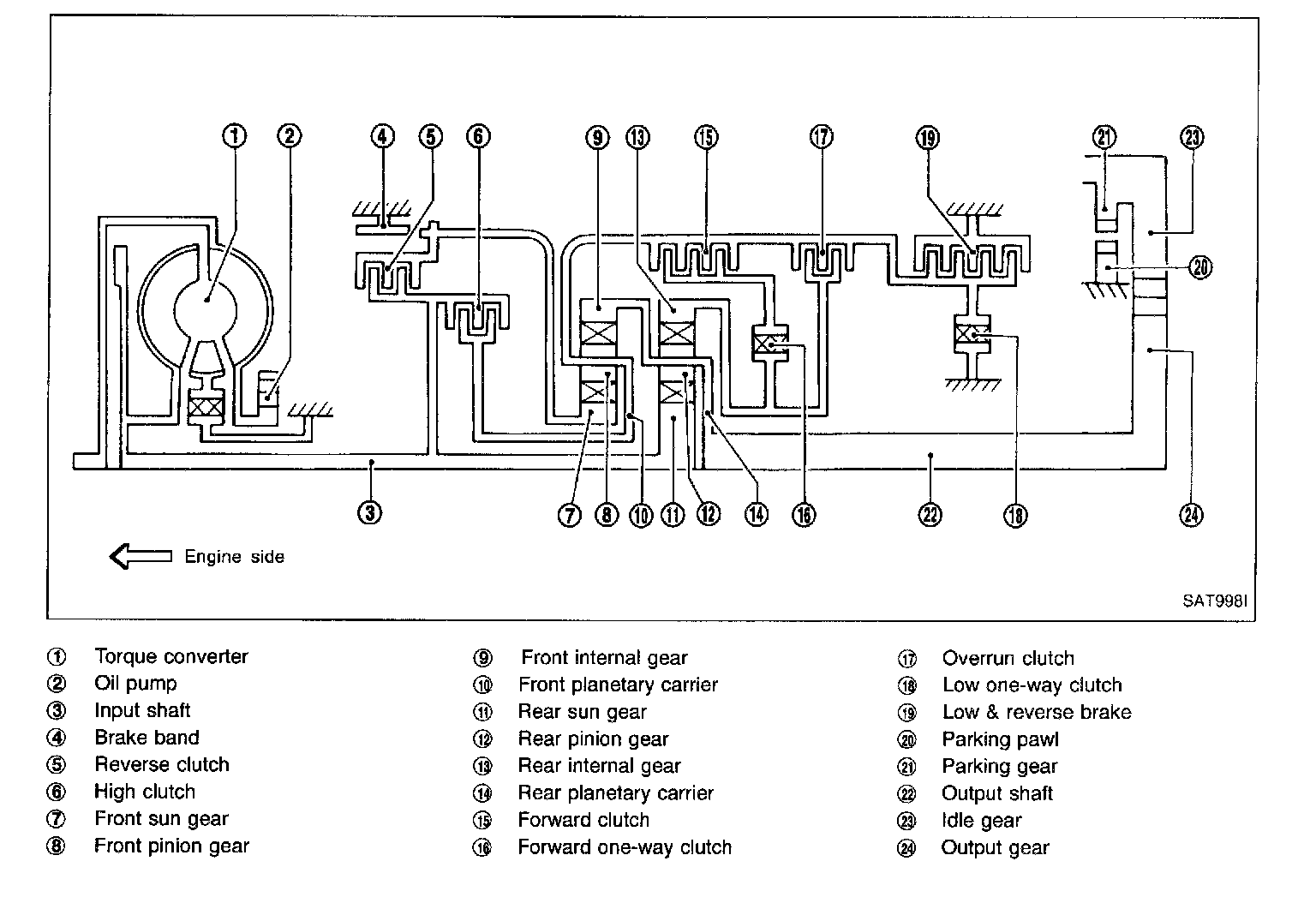

CONSTRUCTION





POWER TRANSMISSION
"N" AND "P" POSITIONS
- "N" position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.
- "P" position

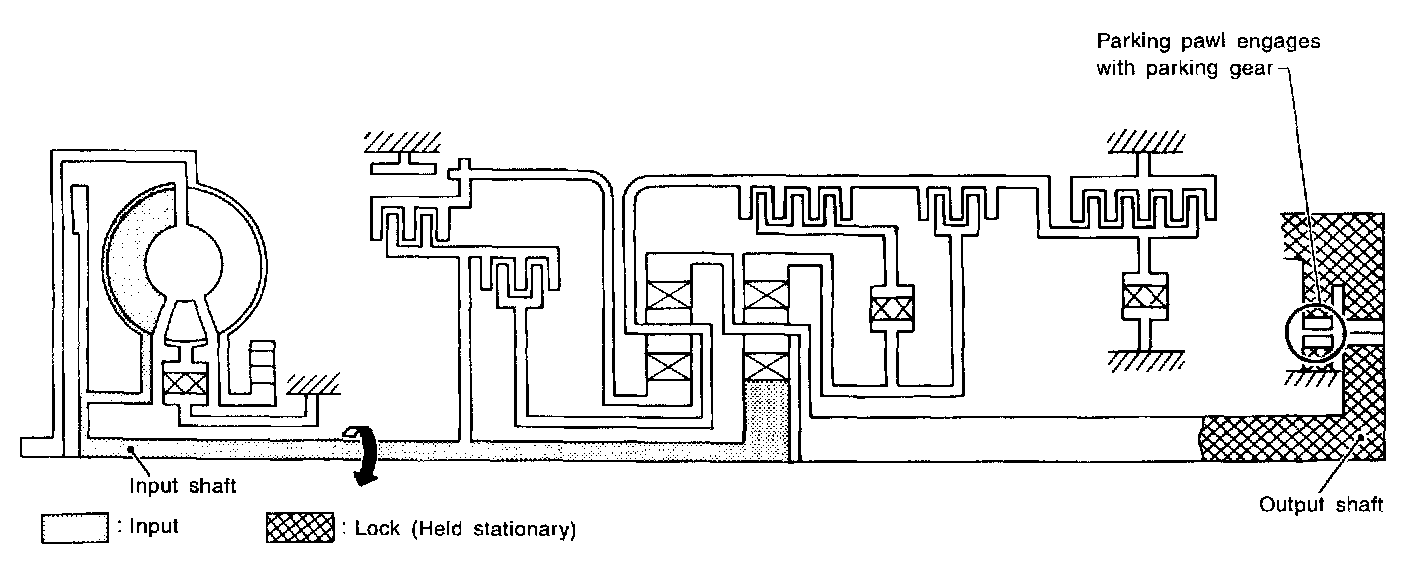

Similar to the "N" position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so that the power train is locked.

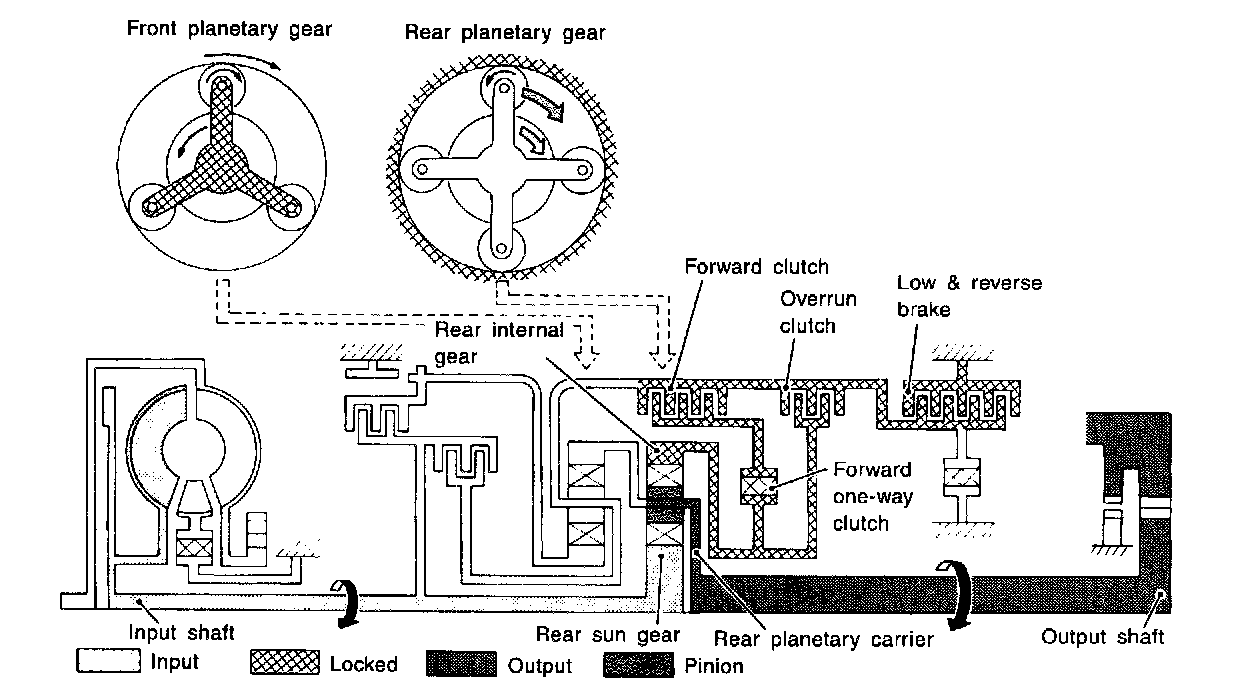

"1-1" POSITION

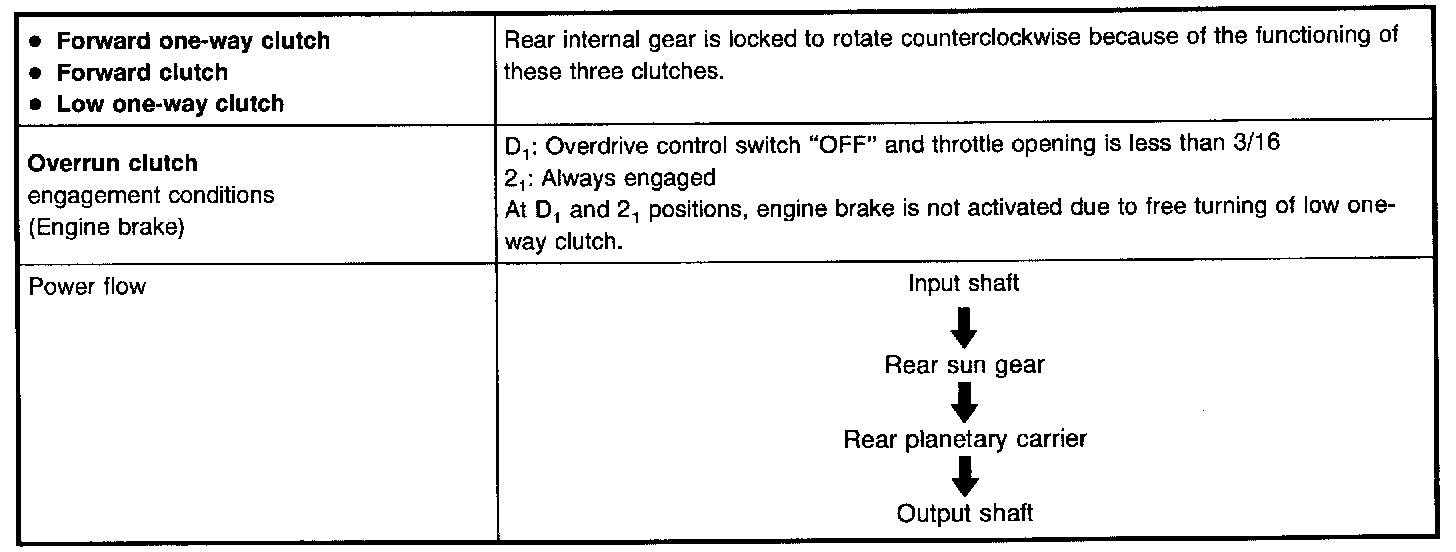

"D-1" AND "2-1" POSITIONS

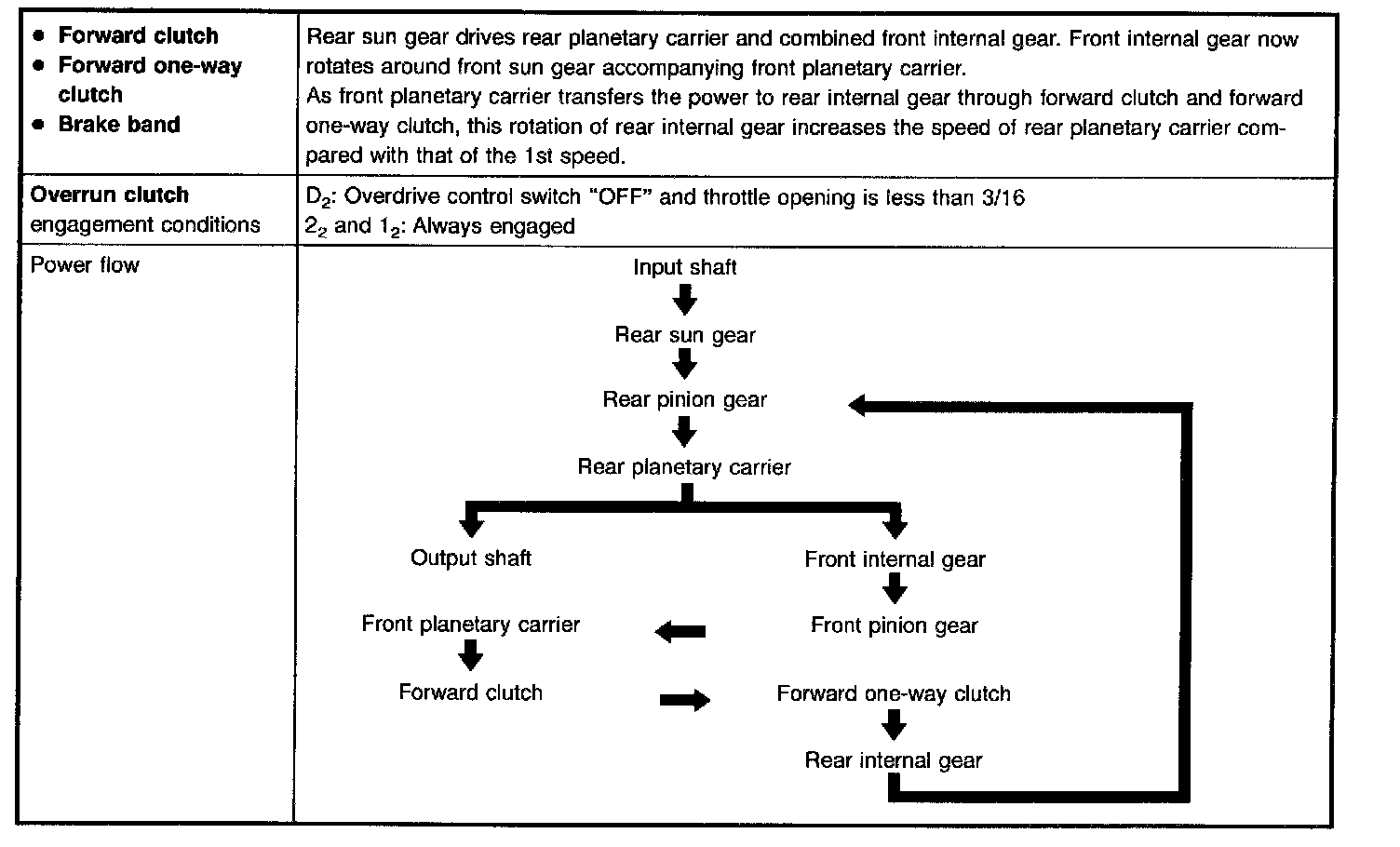

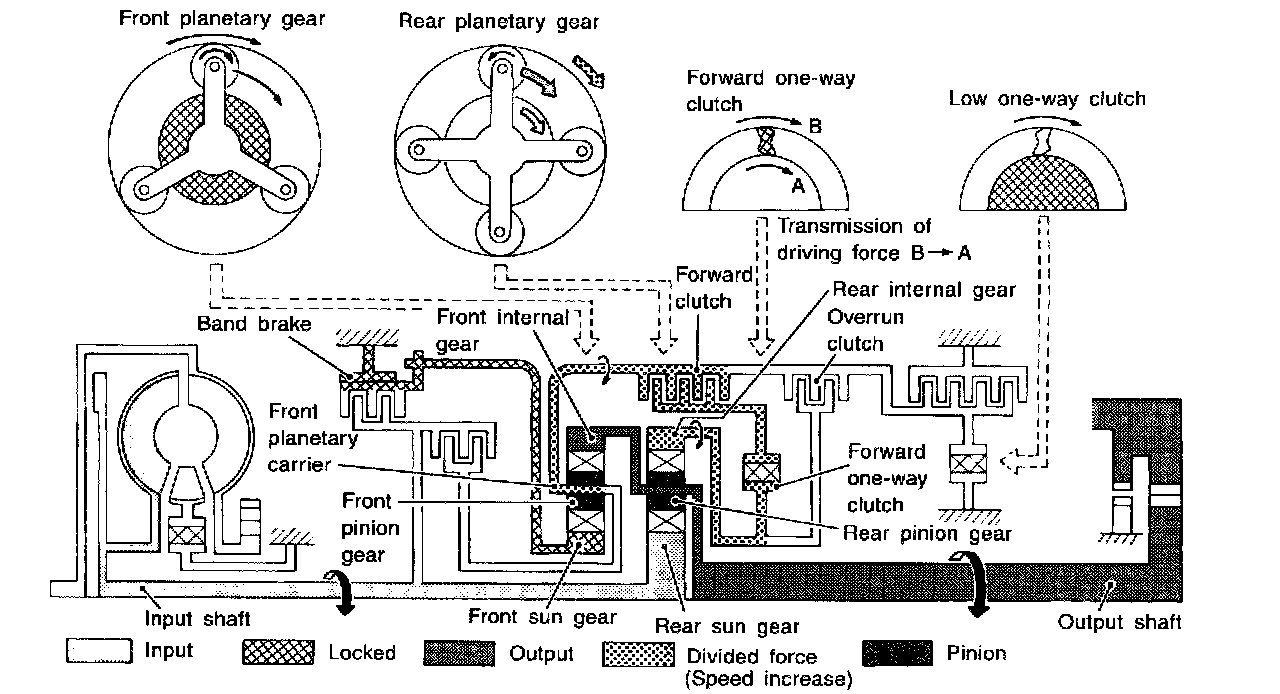

"D-2", "2-2" AND "1-2" POSITIONS

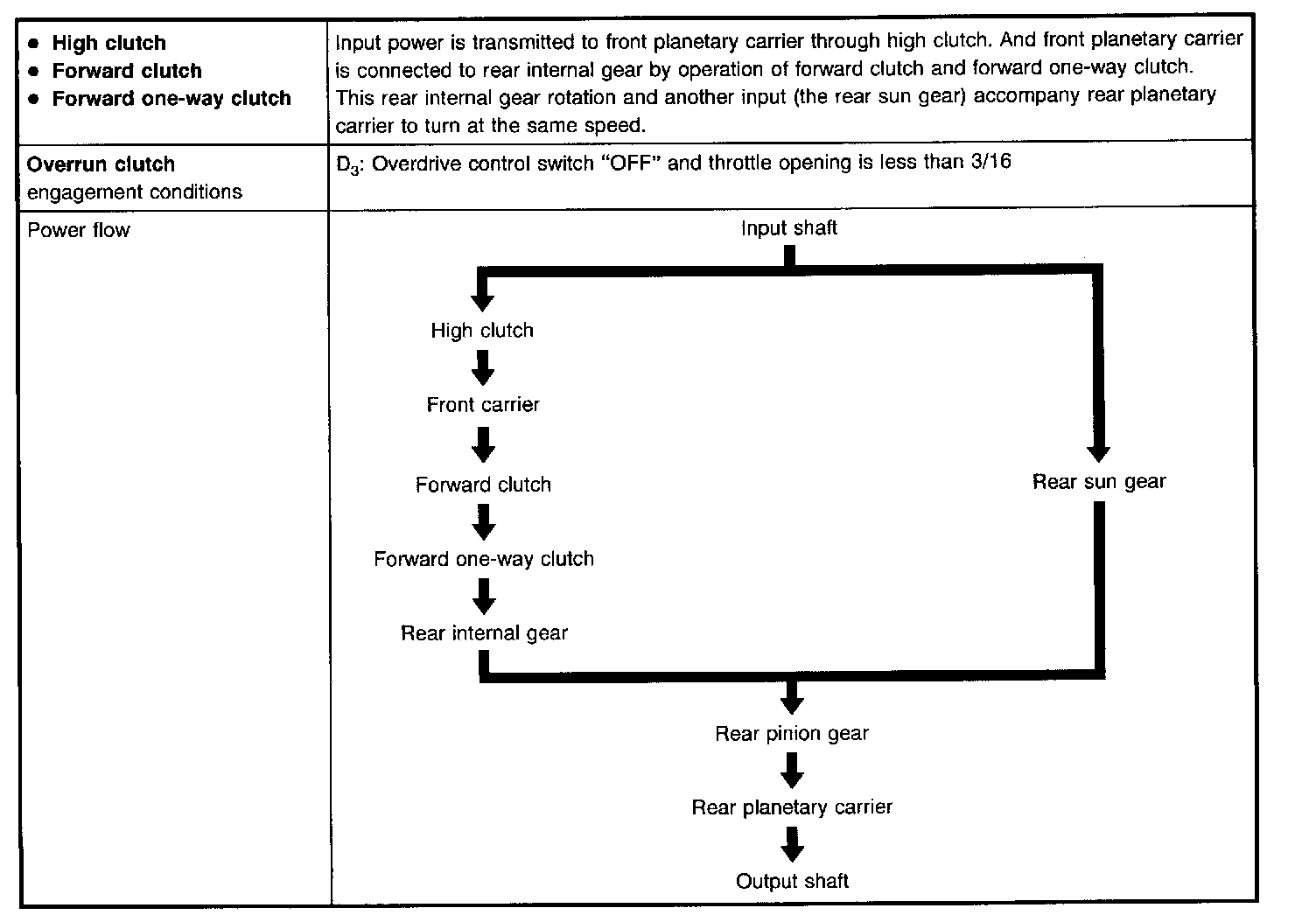

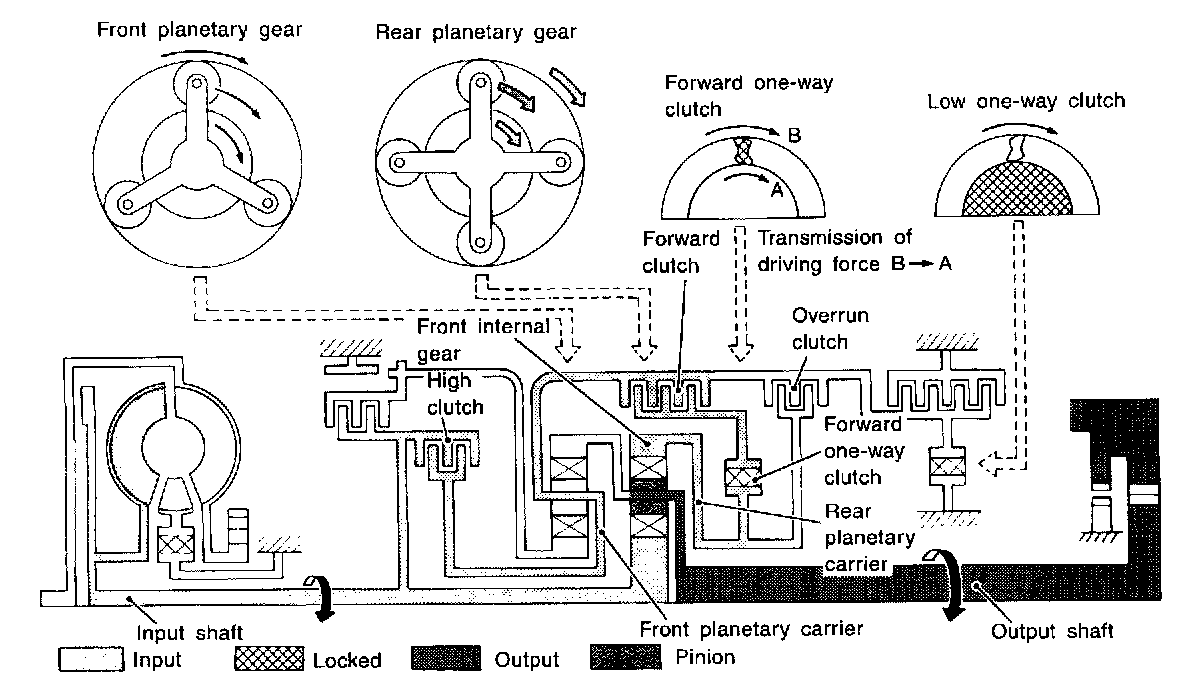

"D-3" POSITION

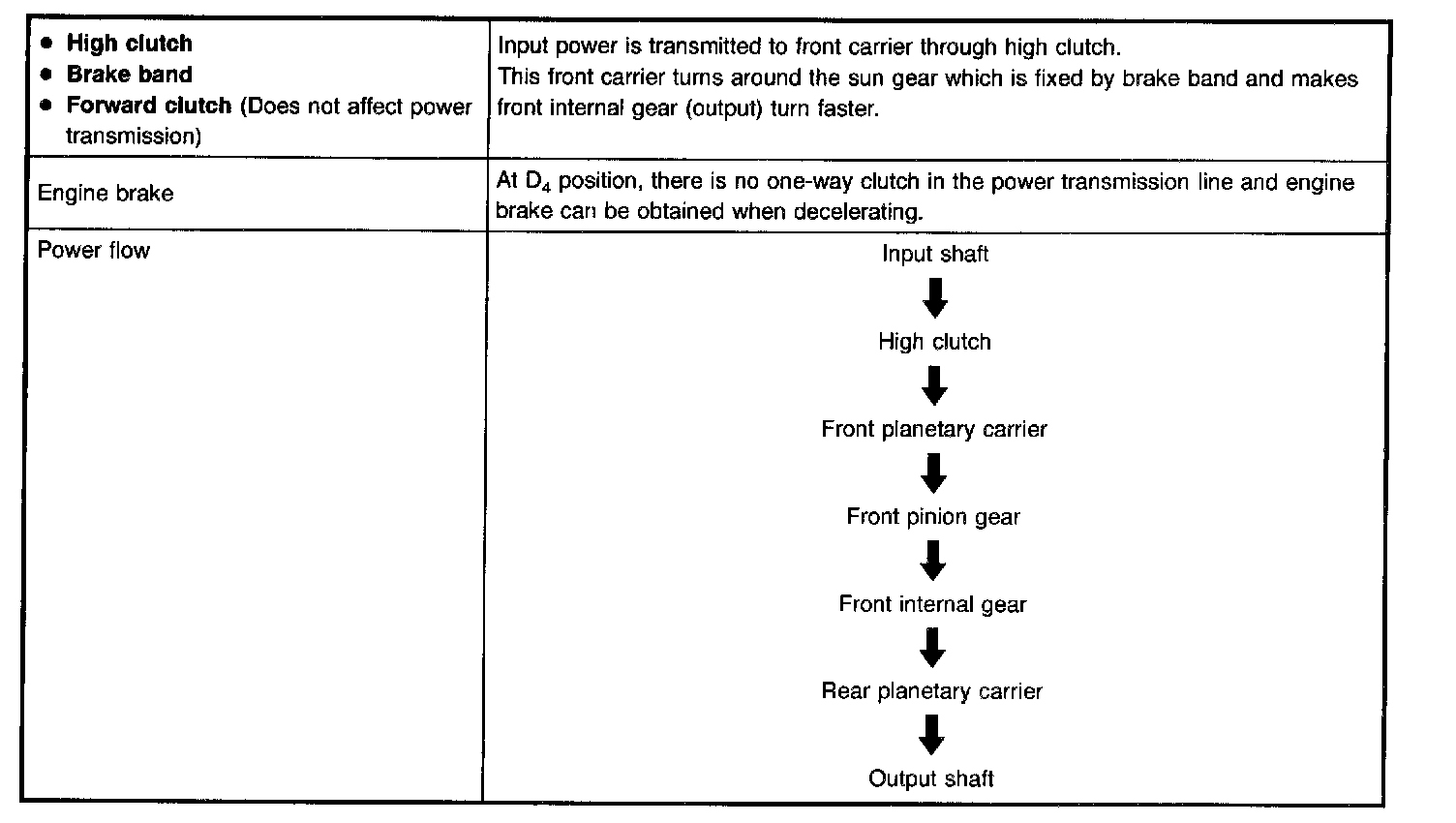

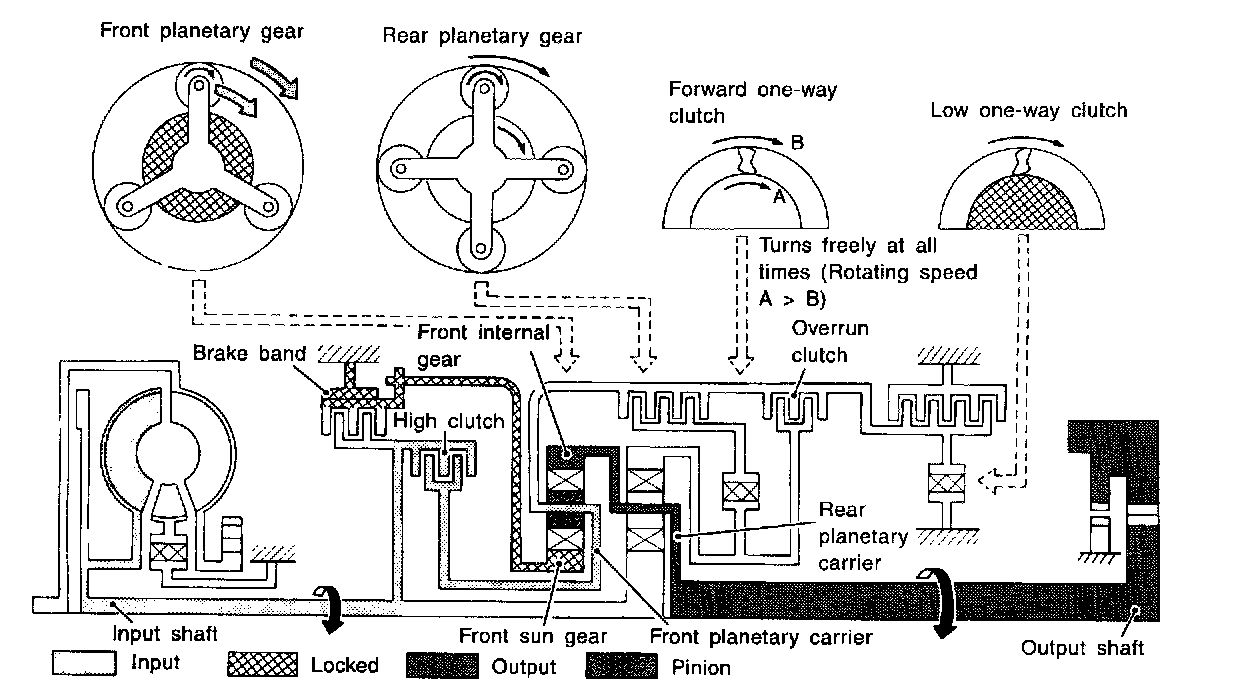

"D-4" (OD) POSITION

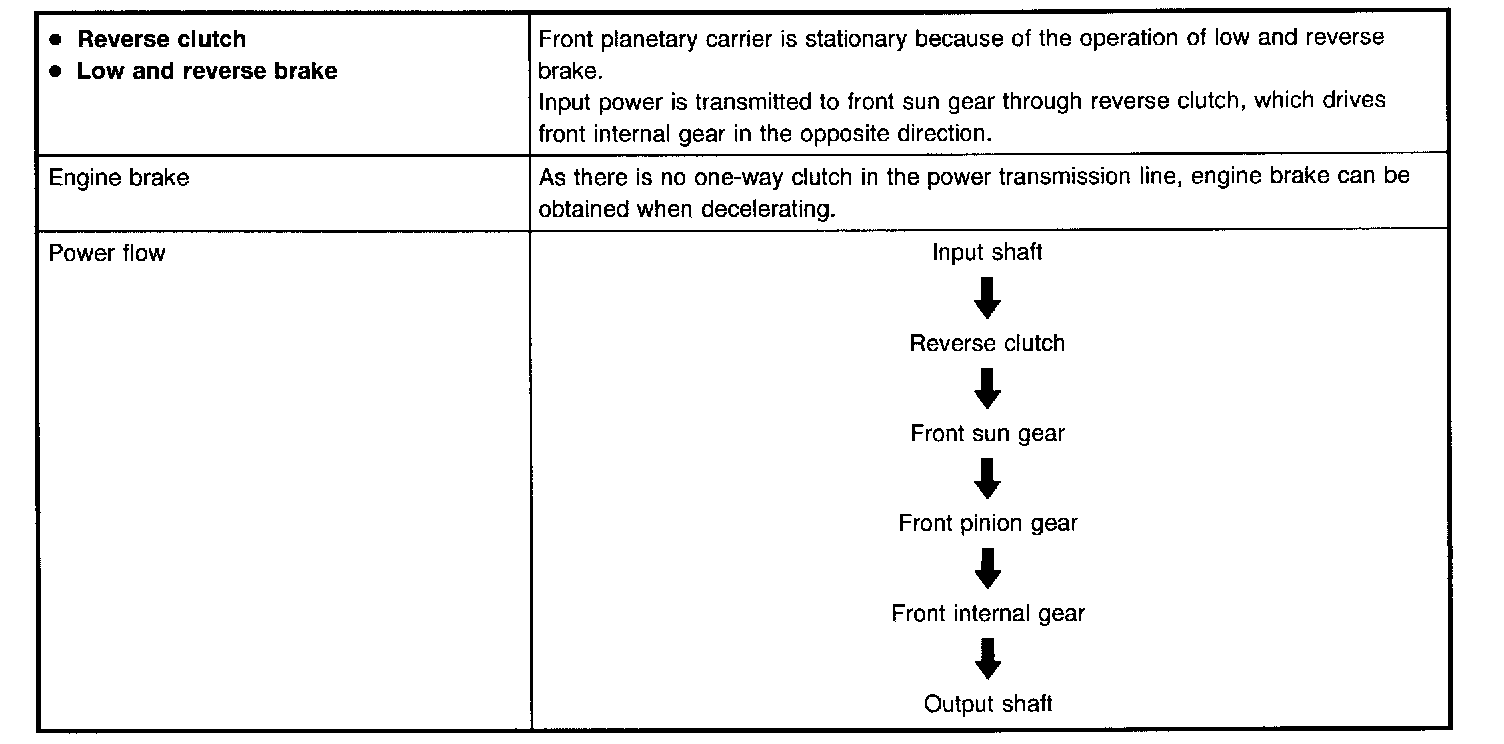

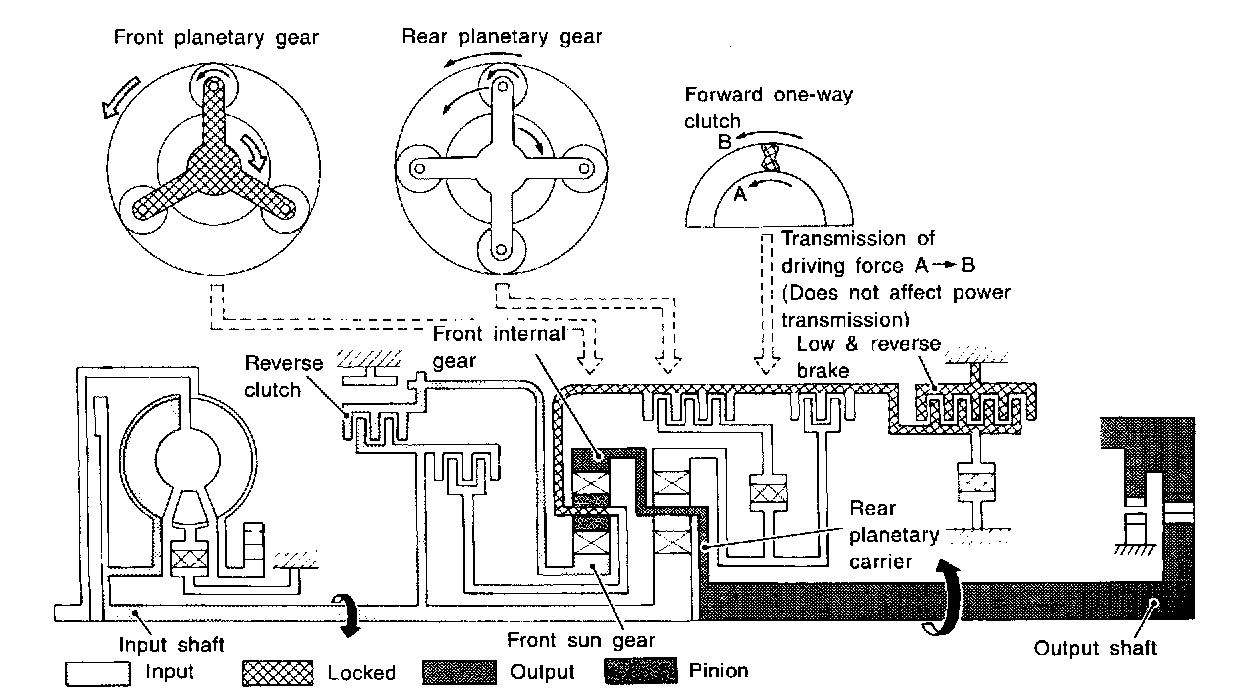

"R" POSITION

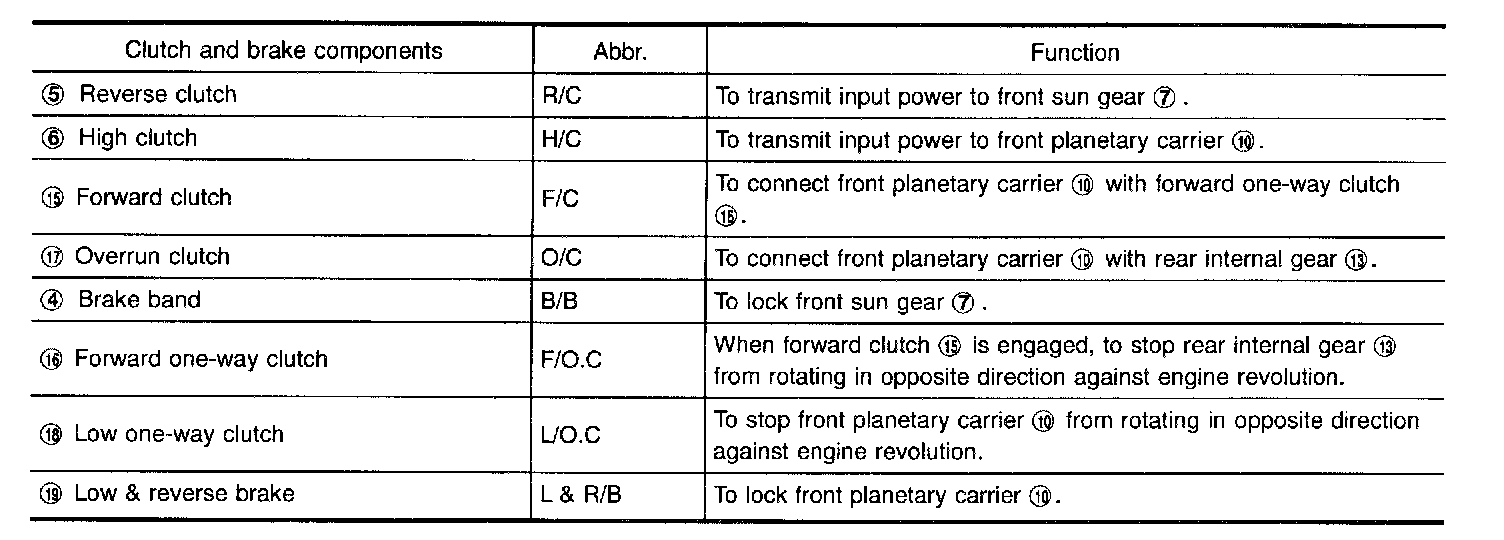

FUNCTION OF CLUTCH AND BRAKE

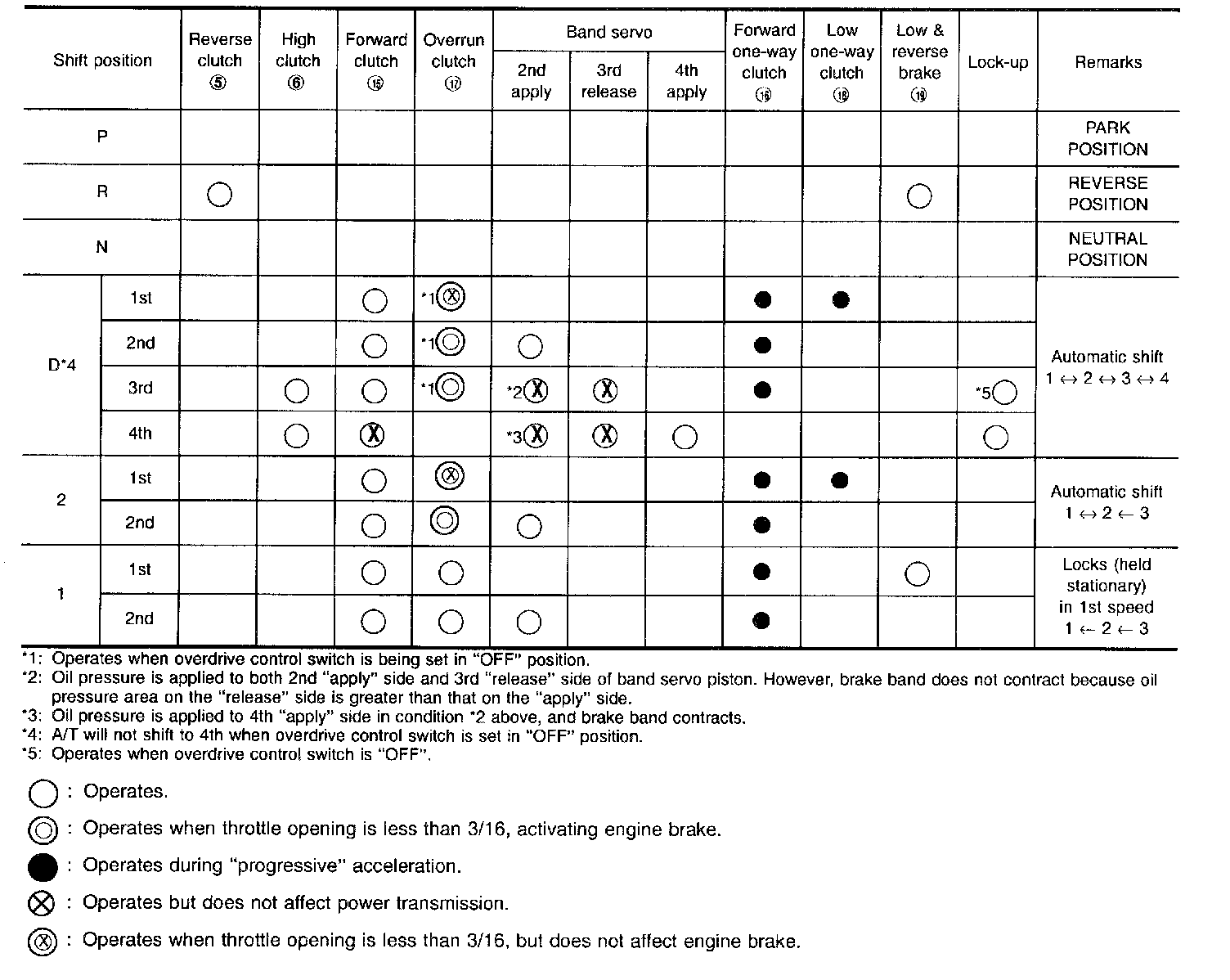

CLUTCH AND BRAKE CHART
