Reading and Clearing Diagnostic Trouble Codes
CONSULT INSPECTION PROCEDURE
1. Turn off ignition switch.

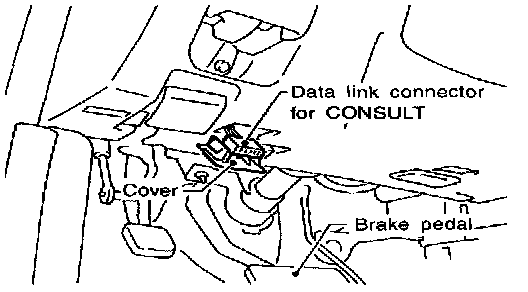

2. Connect "CONSULT" to Data link connector for CONSULT.
3. Insert NATS program card into CONSULT
<-: Program card
NATS-E960U
4. Turn on ignition switch.

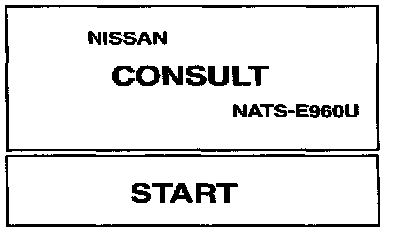

5. Touch "START".
6. Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT Operation Manual, NATS.

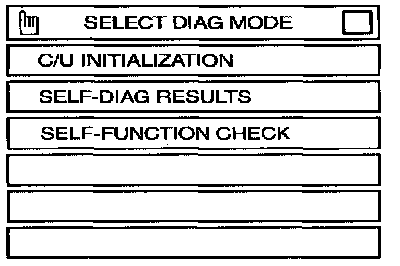

Consult Diagnostic Test Mode Function

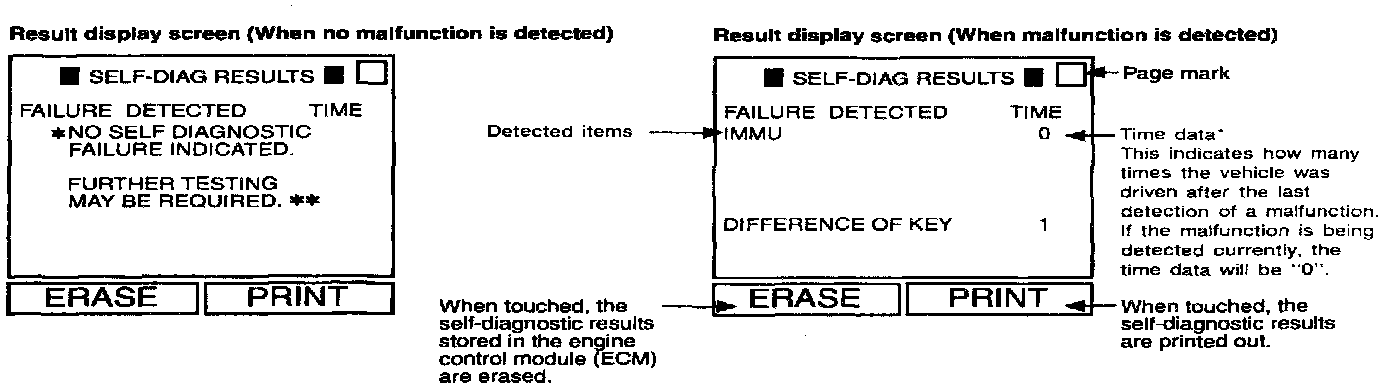

How to Read Self-Diagnostic Results
*.If trip number is more than 1, MIL does not blink.

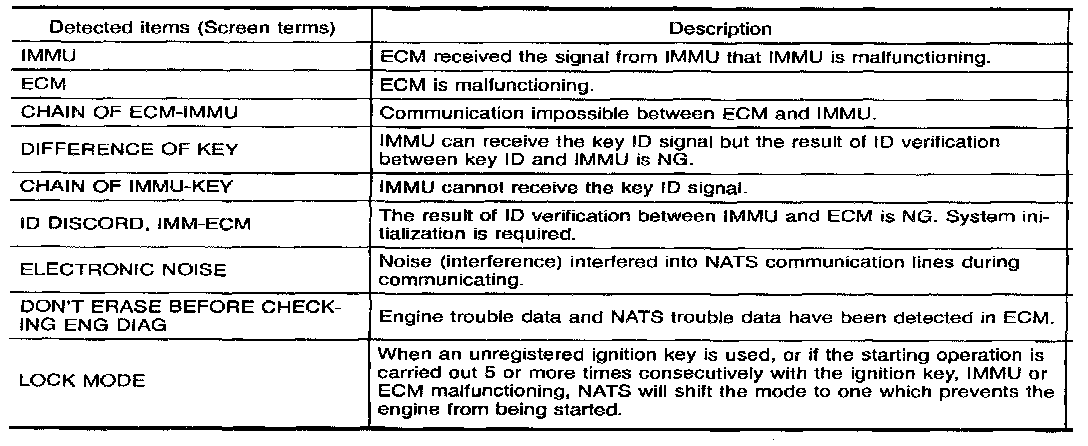

Self-Diagnostic Results Item Chart
Trouble Diagnoses
Work Flow

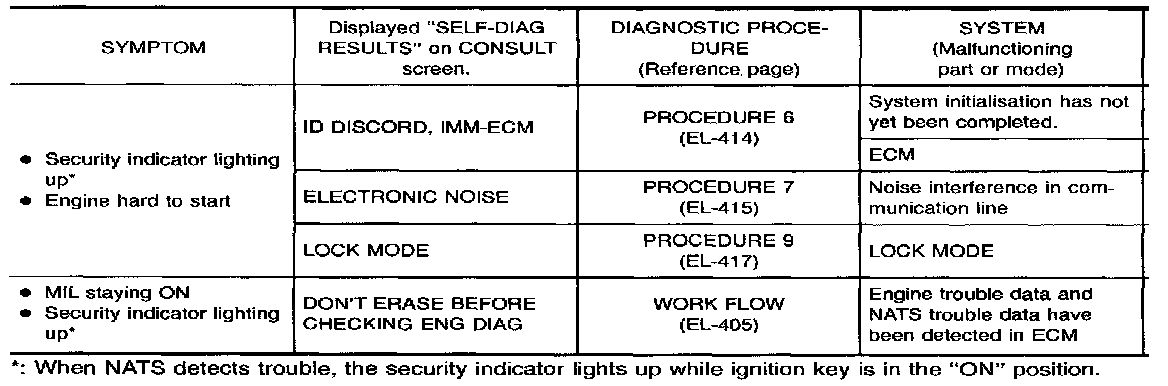

Symptom Matrix Chart 1 (Self Diagnosis related item)
*: When NATS detects trouble, the security indicator lights up while ignition key is in the "ON" position.
Symptom Matrix Chart 2 (Non Self Diagnosis related item)

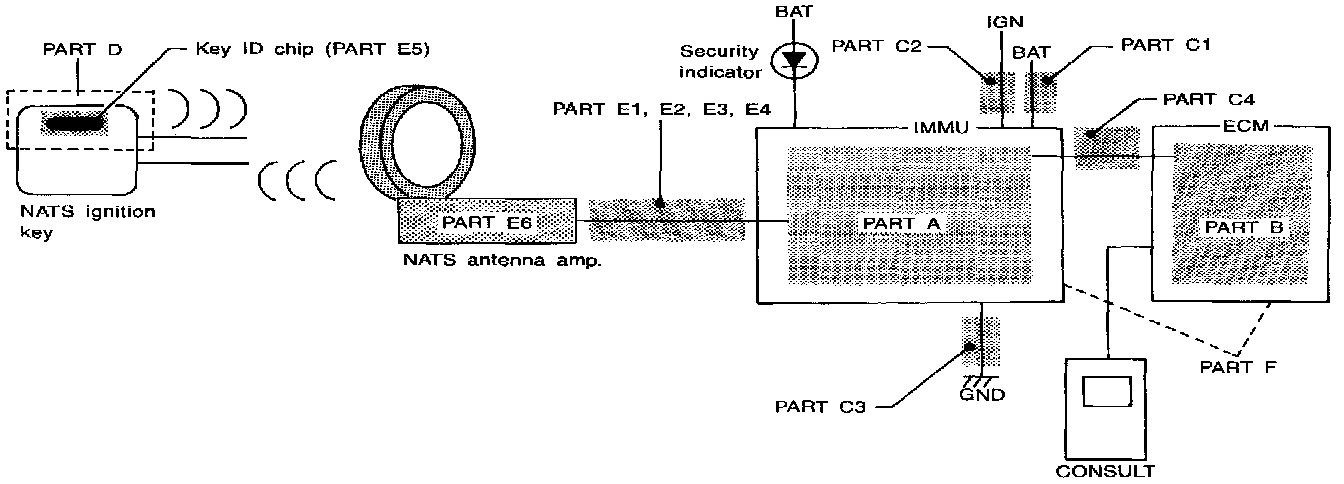

Diagnostic System Diagram

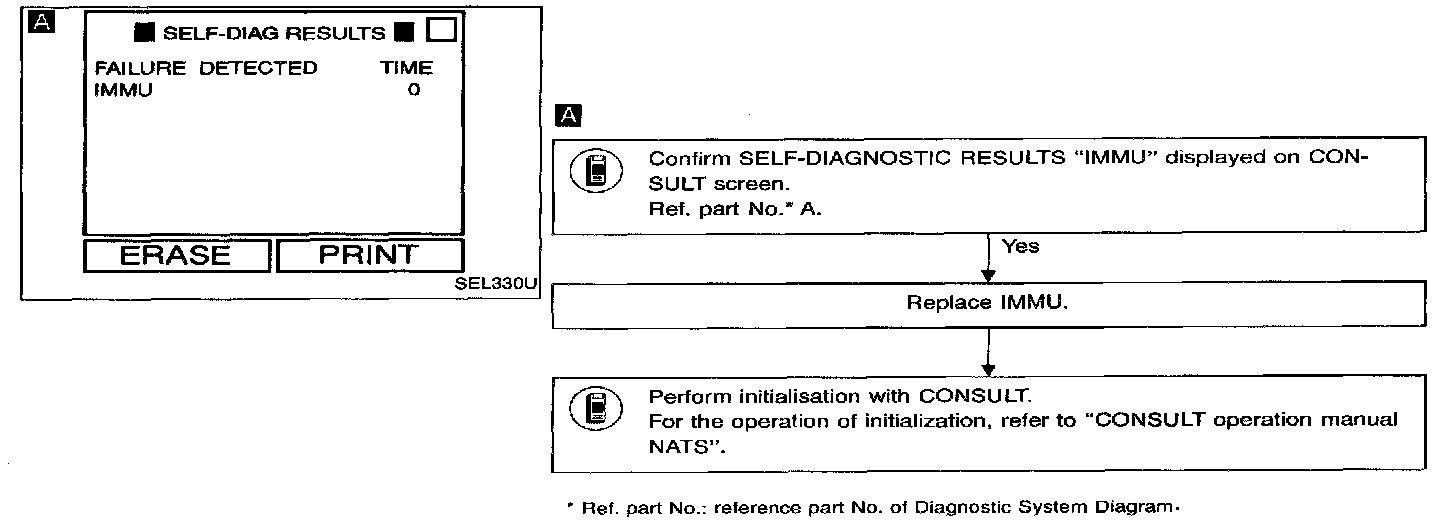

DIAGNOSTIC PROCEDURE 1 Self-diagnostic results: "IMMU" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 2 Self-diagnostic results: "ECM" displayed on CONSULT screen

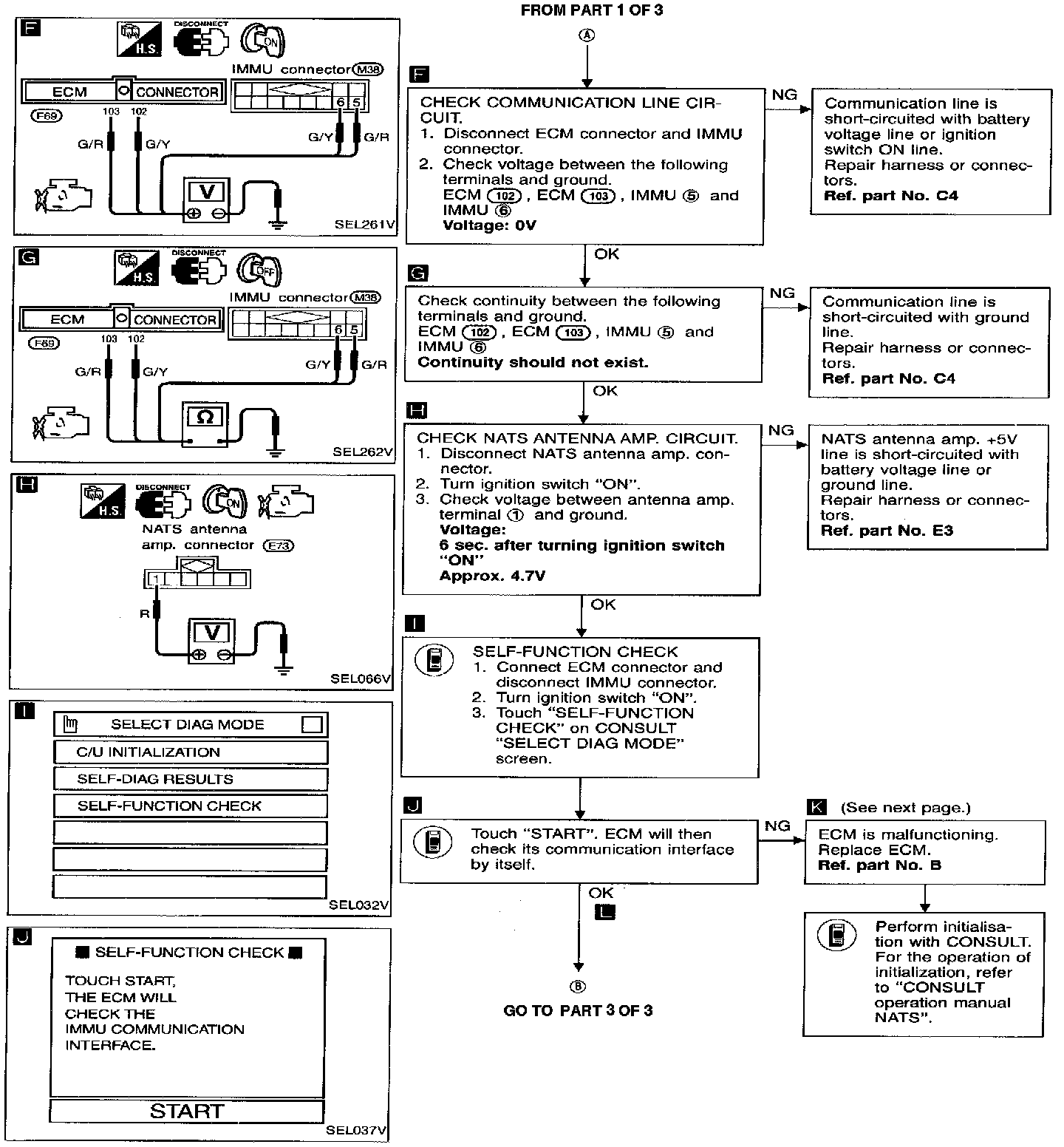

DIAGNOSTIC PROCEDURE 3 Self-diagnostic results: "CHAIN OF ECM-IMMU" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 3 Self-diagnostic results: "CHAIN OF ECM-IMMU" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 3 Self-diagnostic results: "CHAIN OF ECM-IMMU" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 4 Self-diagnostic results: "DIFFERENCE OF KEY" displayed on CONSULT screen

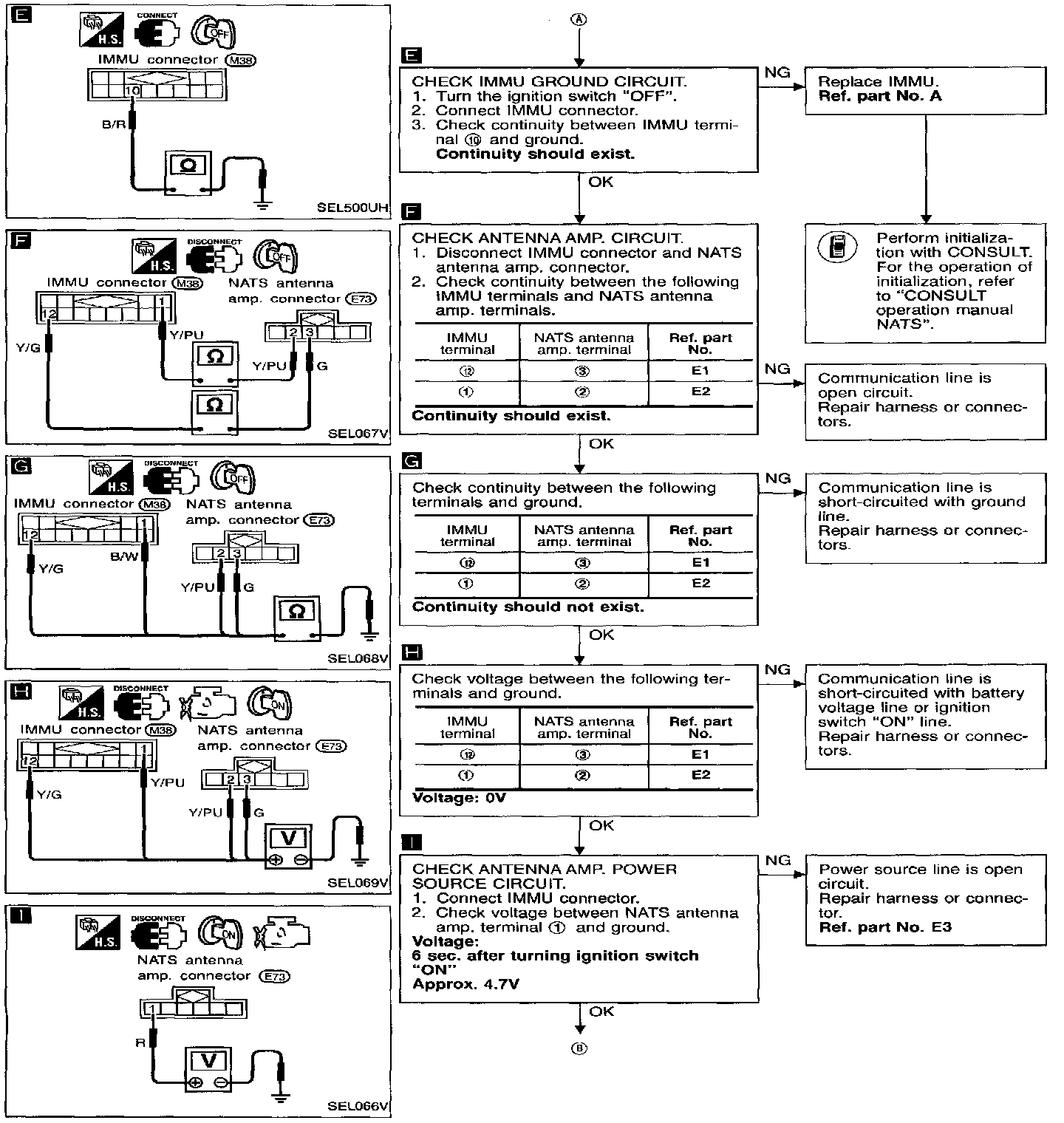

DIAGNOSTIC PROCEDURE 5 Self-diagnostic results: "CHAIN OF IMMU-KEY" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 5 Self-diagnostic results: "CHAIN OF IMMU-KEY" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 5 Self-diagnostic results: "CHAIN OF IMMU-KEY" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 6 Self-diagnostic results: "ID DISCORD, IMM-ECM" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 7 Self-diagnostic results: "ELECTRONIC NOISE" displayed on CONSULT screen
DIAGNOSTIC PROCEDURE 8 "SECURITY IND. DOES NOT LIGHT UP"
DIAGNOSTIC PROCEDURE 9 Self-diagnostic results: "LOCK MODE" displayed on CONSULT screen
