Electrical Diagrams

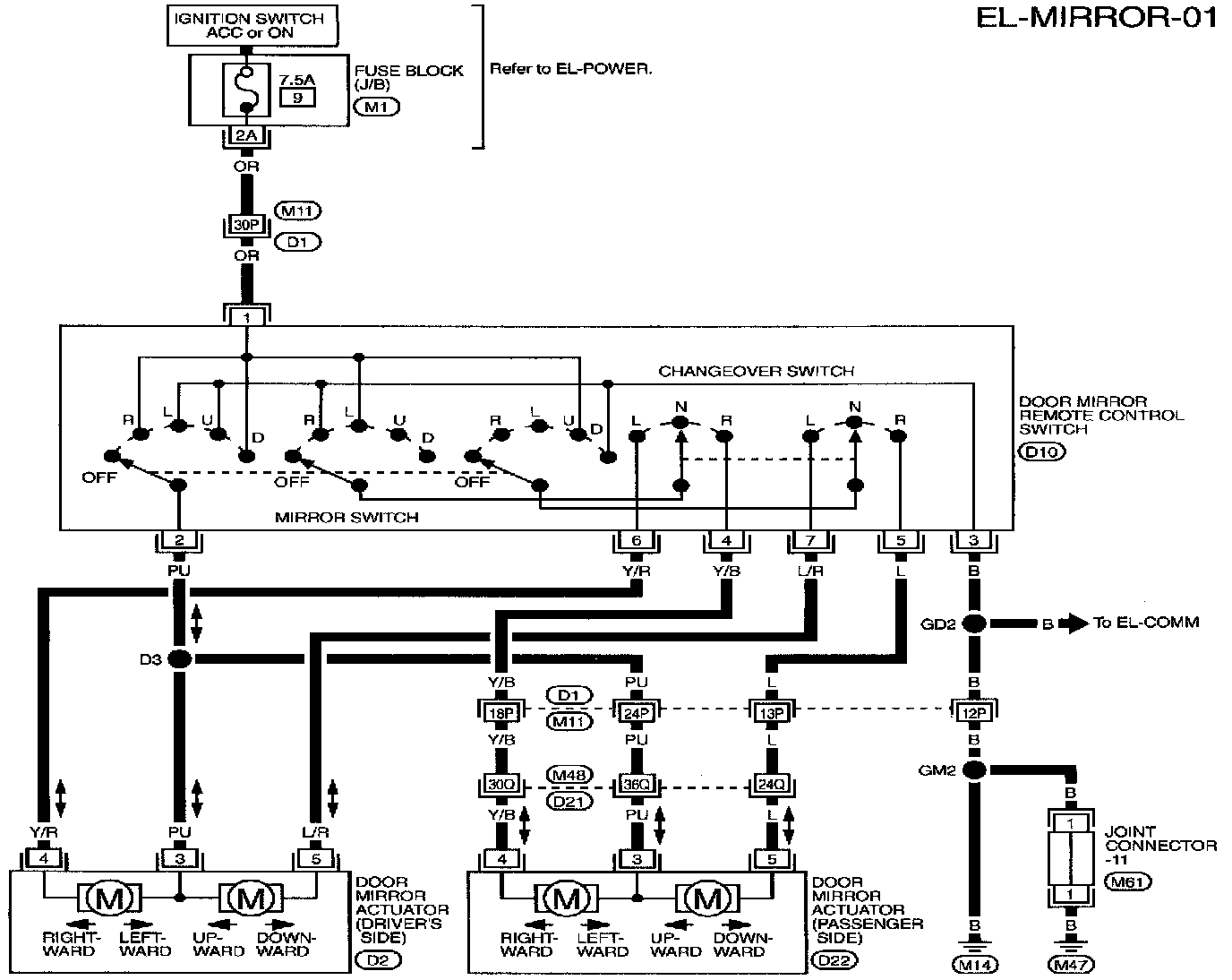

Circuit Diagrams

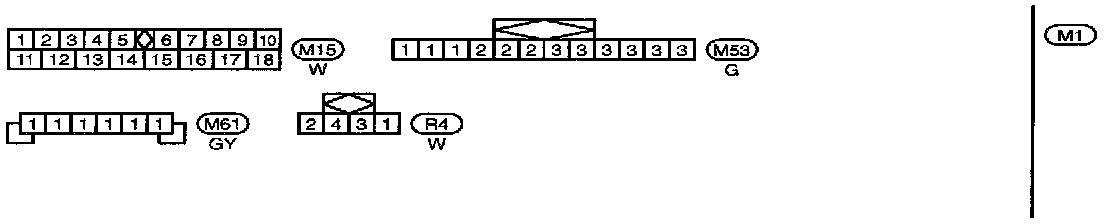

Circuit Connectors





D1, D21, M11, M48 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





M1 - Fuse Block Junction Box - Terminal Arrangement





M1 - Fuse Block Junction Box - Terminal Arrangement
