Electrical Diagrams

Seat





Schematic




(Part 1 of 4)
Battery
Circuit Breaker
Joint Connector 12
Power Seat Switch
Reclining Motor
Sliding Motor




(Part 2 of 4)
Joint Connector 17

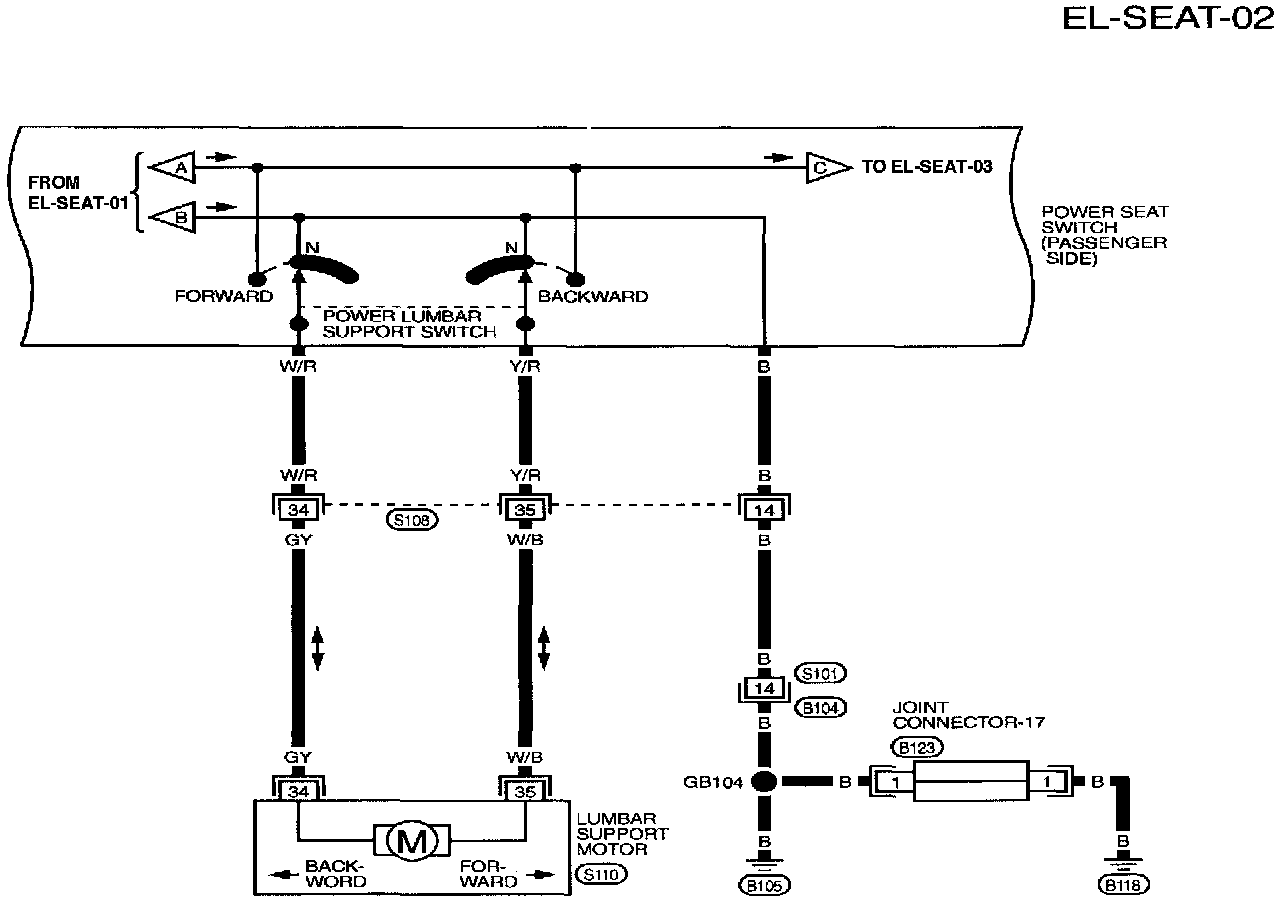

Lumbar Support Motor
Power Seat Switch




(Part 3 of 4)
Joint Connector 17
Lifting Motor
Power Seat Switch




(Part 4 of 4)
Joint Connector 17
Lifting Motor

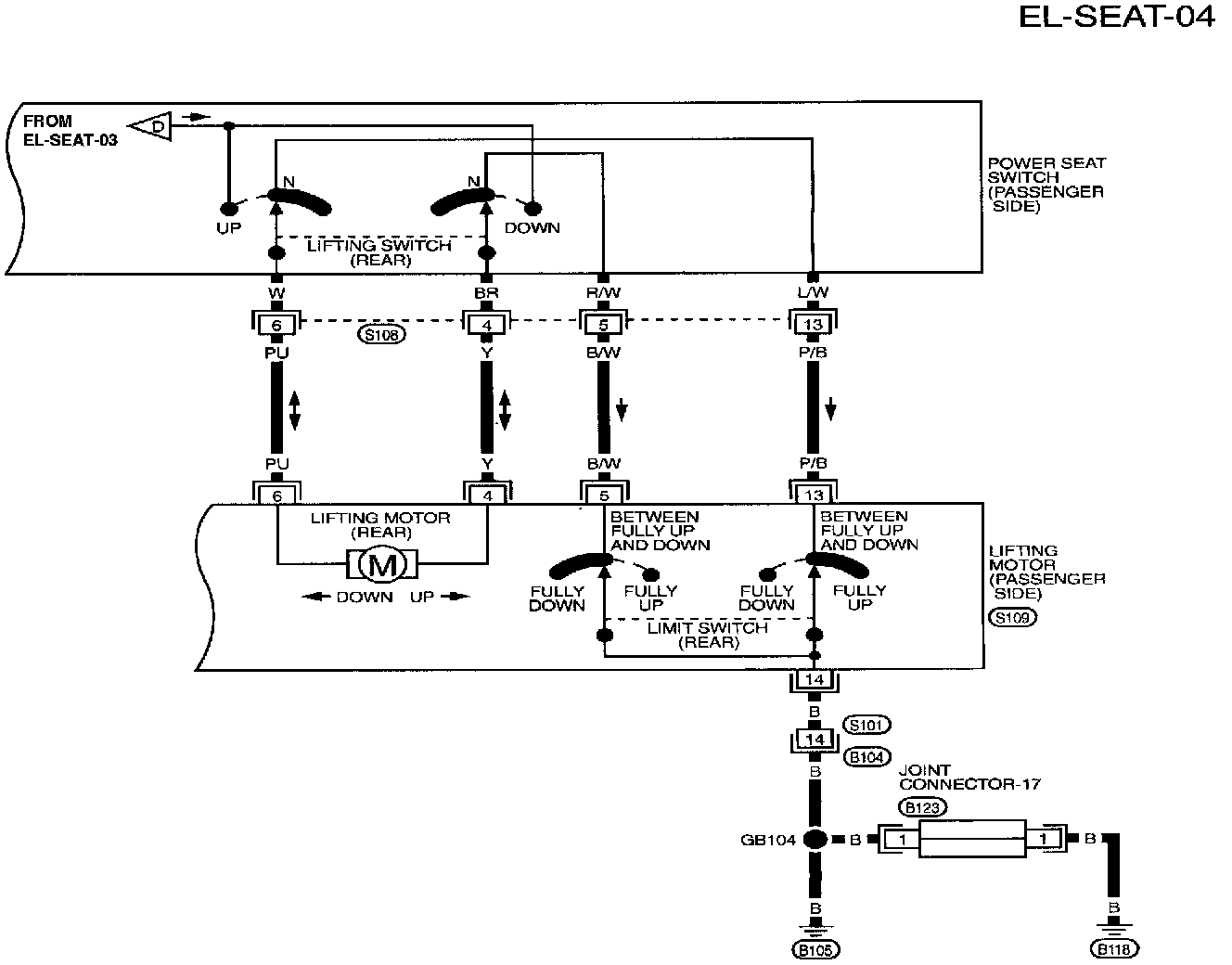

Power Seat Switch

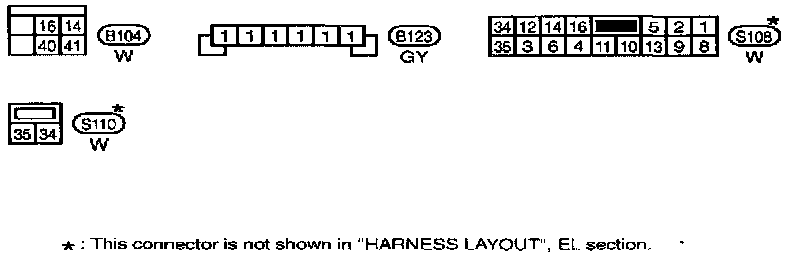

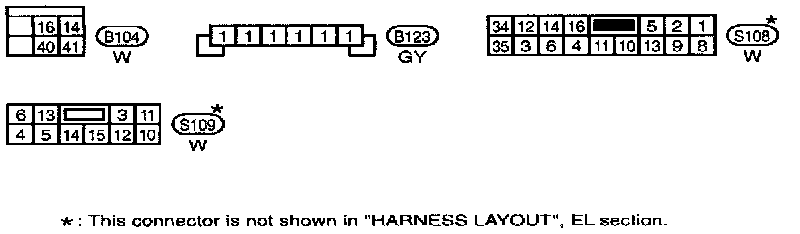

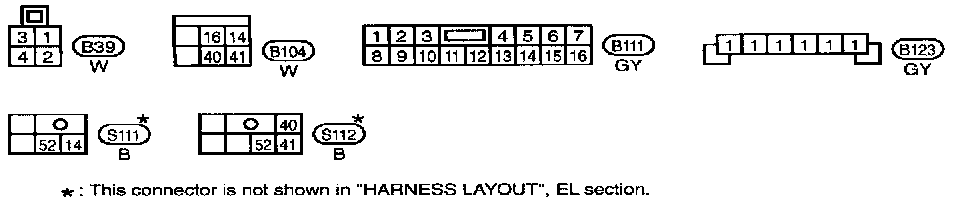

Circuit Connectors





B3, E66, M4, M12 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





B101, M50 - Super Multiple Junction - Terminal Arrangement

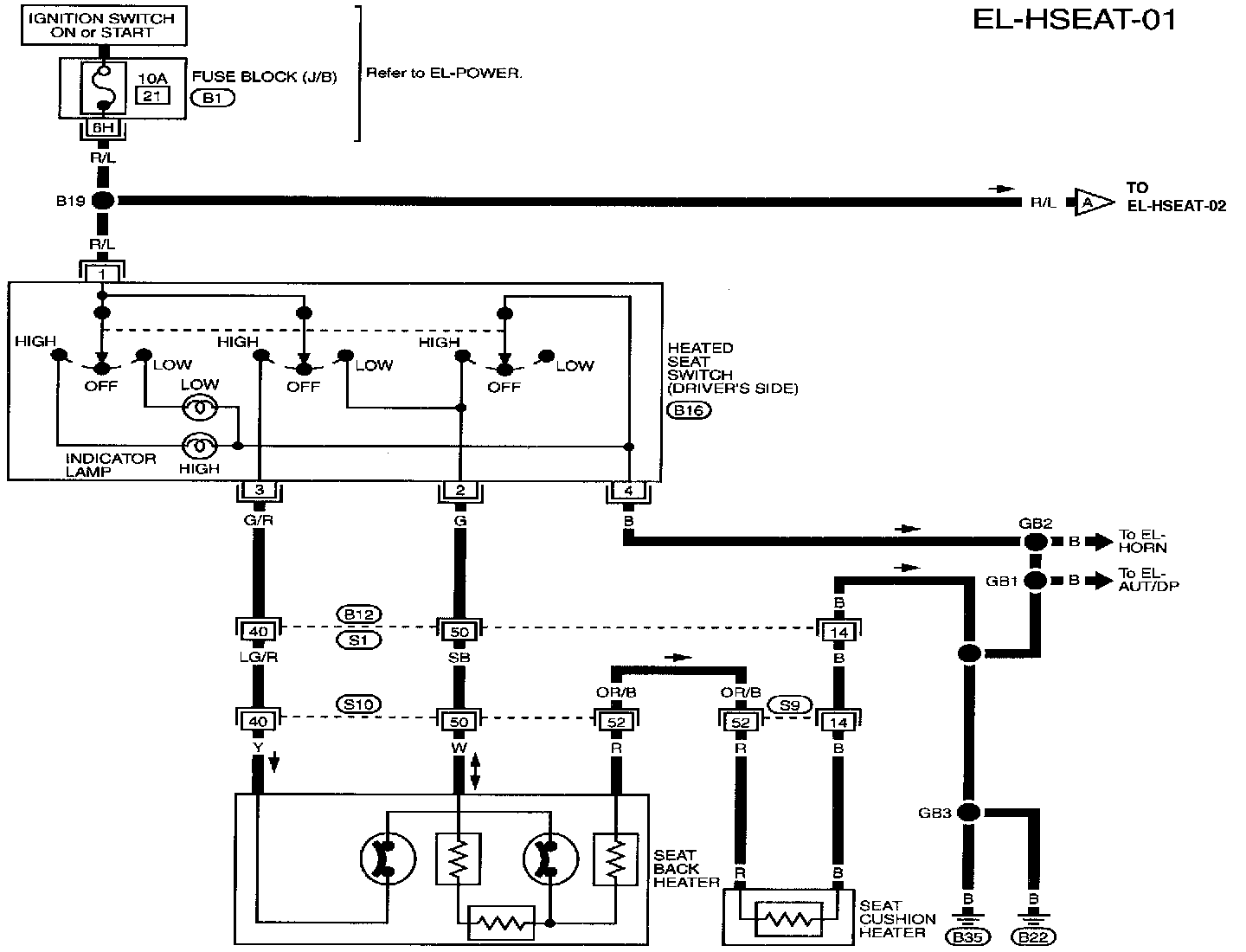

HSeat









Circuit Diagrams








Circuit Connectors

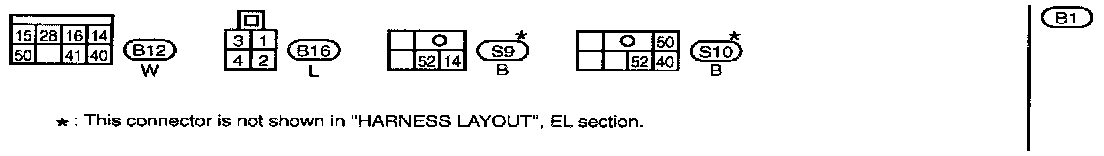

B1 - Fuse Block Junction Box - Terminal Arrangement
