Component Tests and General Diagnostics

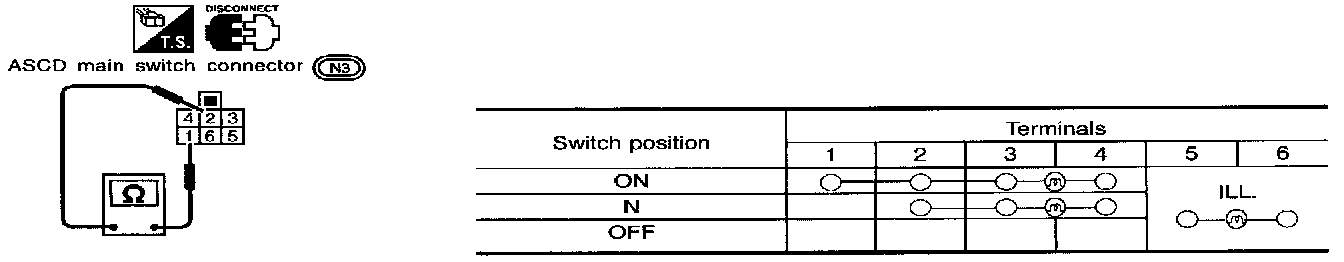

ASCD Main Switch



Check continuity between terminals by pushing switch to each position

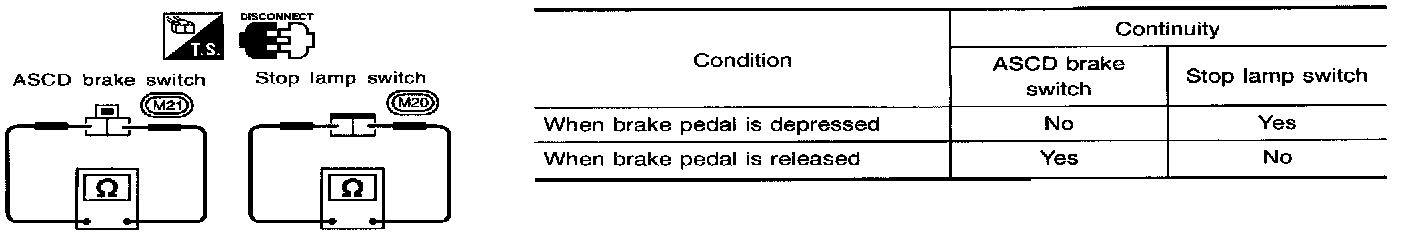

ASCD Brake Switch and Stop Lamp Switch



Check each switch after adjusting brake pedal.

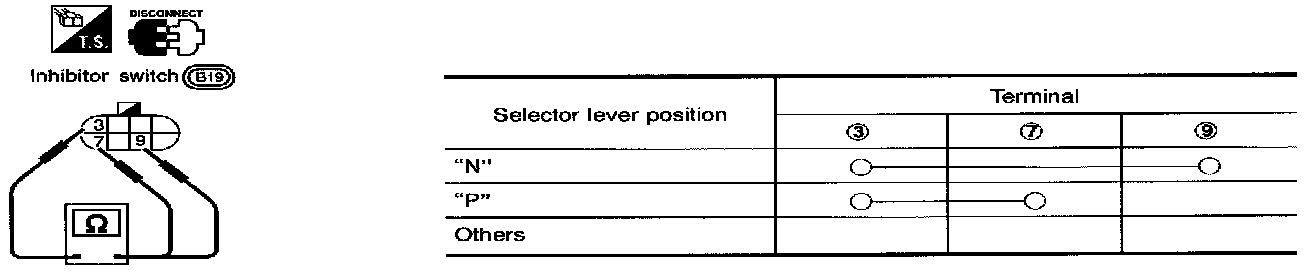

Inhibitor Switch
Check continuity between terminals by setting selector level to each position.




Diode
^ Check continuity using an ohmmeter.
^ Diode is functioning properly if test results are as shown in the figure at left.

NOTE: Specifications may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual for your tester.
