Theft Warning System-IVMS

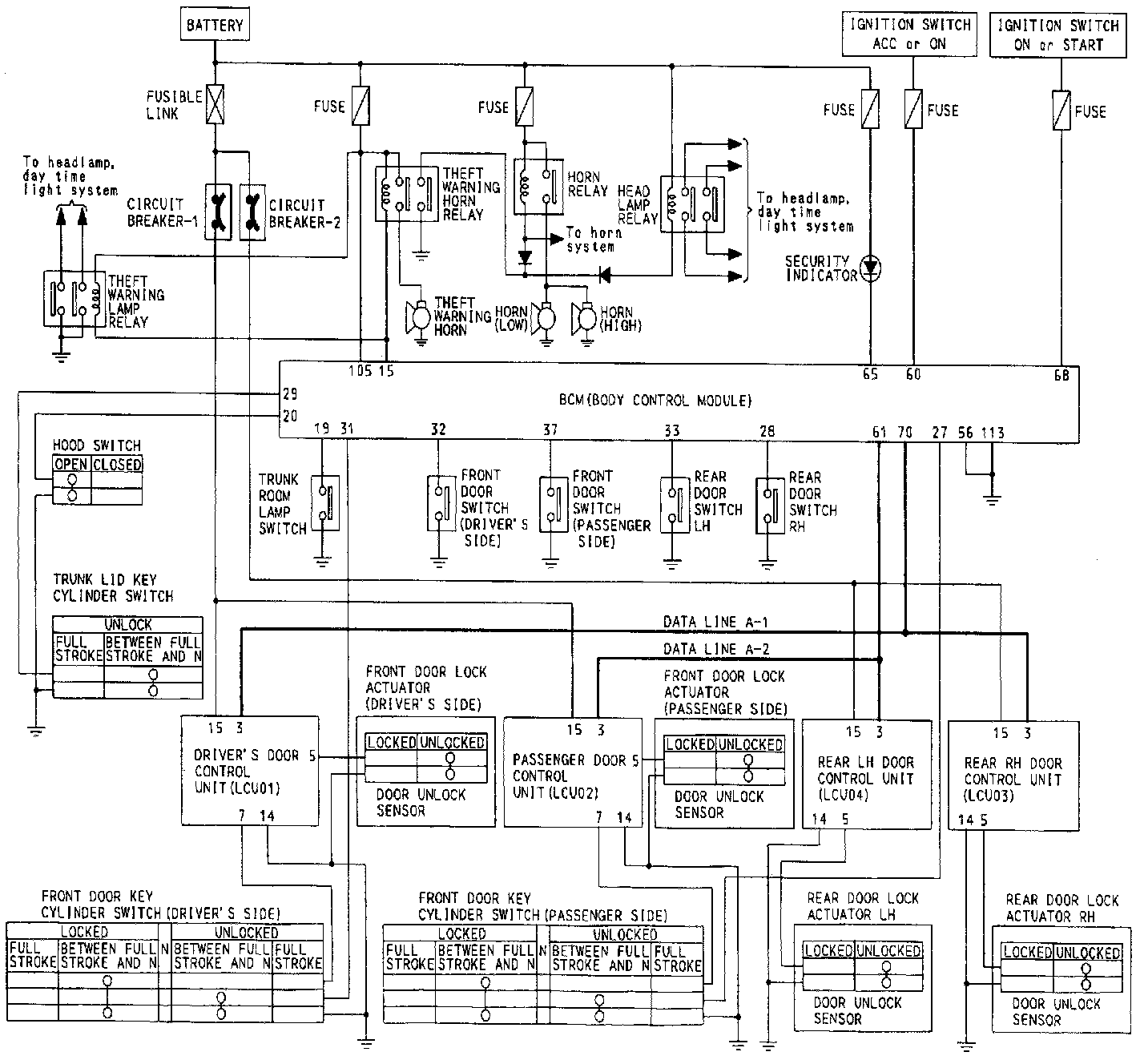

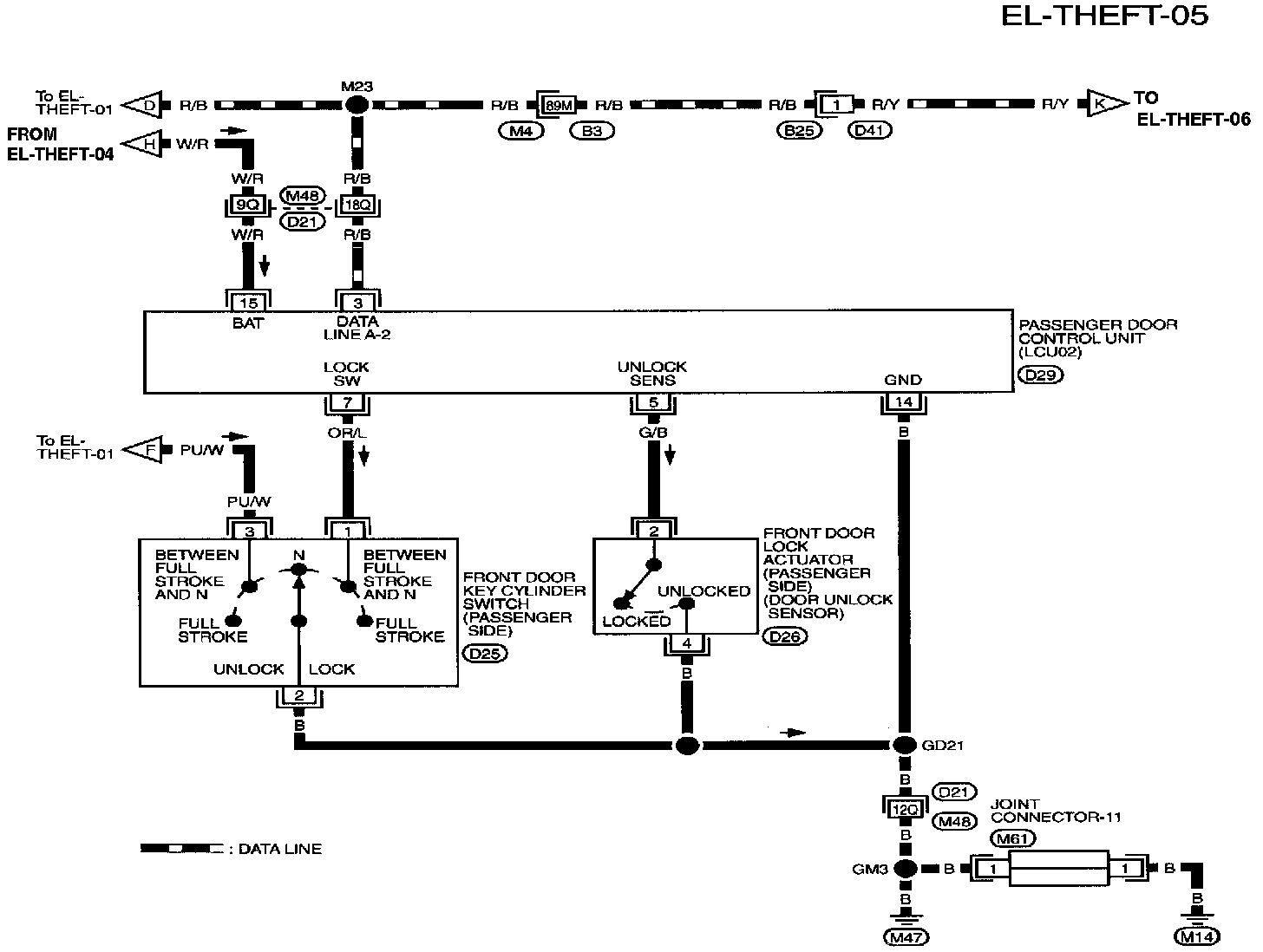

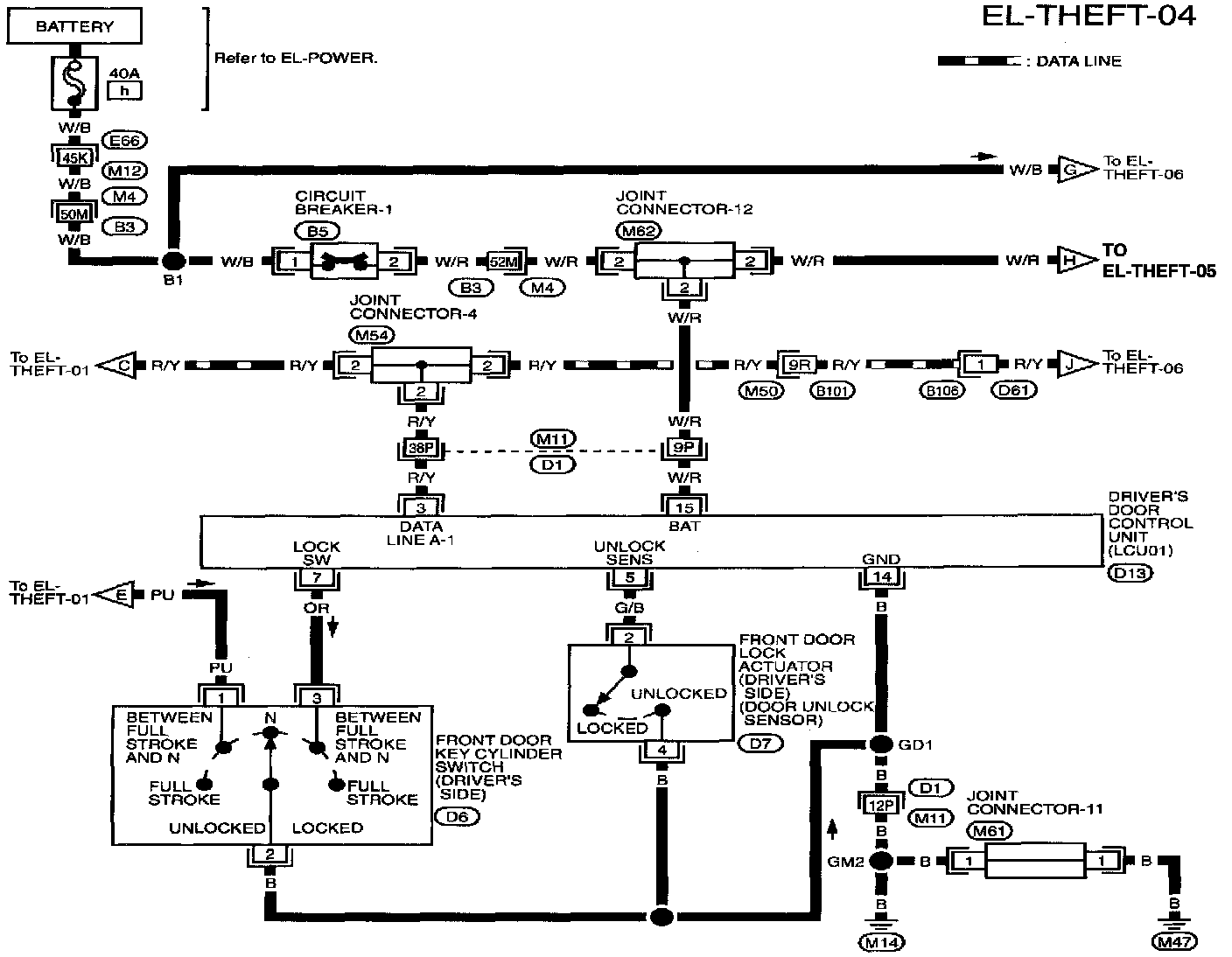

Schematic








(Part 1 of 8)
Battery
Body Control Module
Fuse Block (J/B)
Joint Connector 4, 11

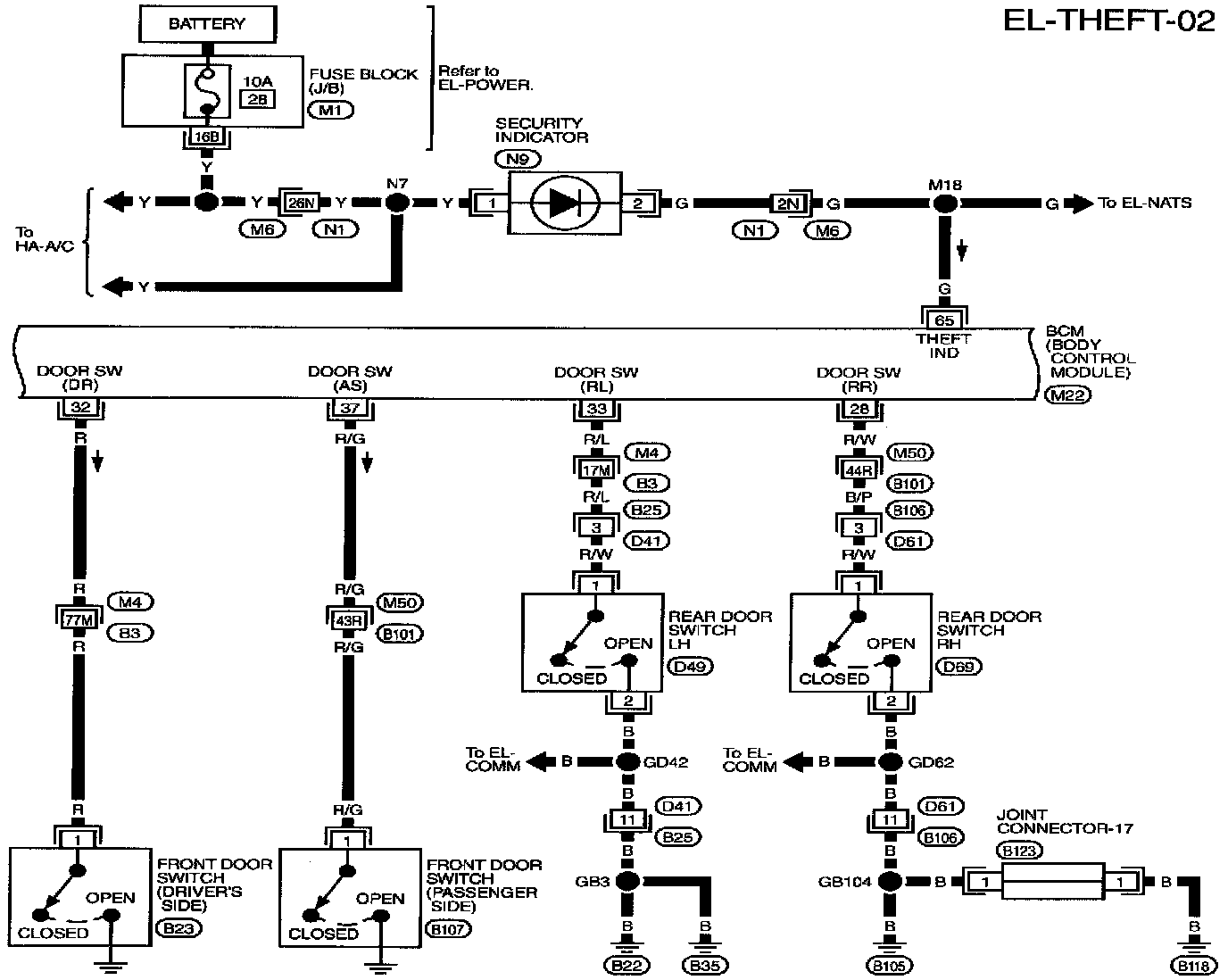

(Part 2 of 8)
Battery
Body Control Module
Fuse Block (J/B)
Front Door Switch
Joint Connector 17
Rear Door Switch
Security Indicator

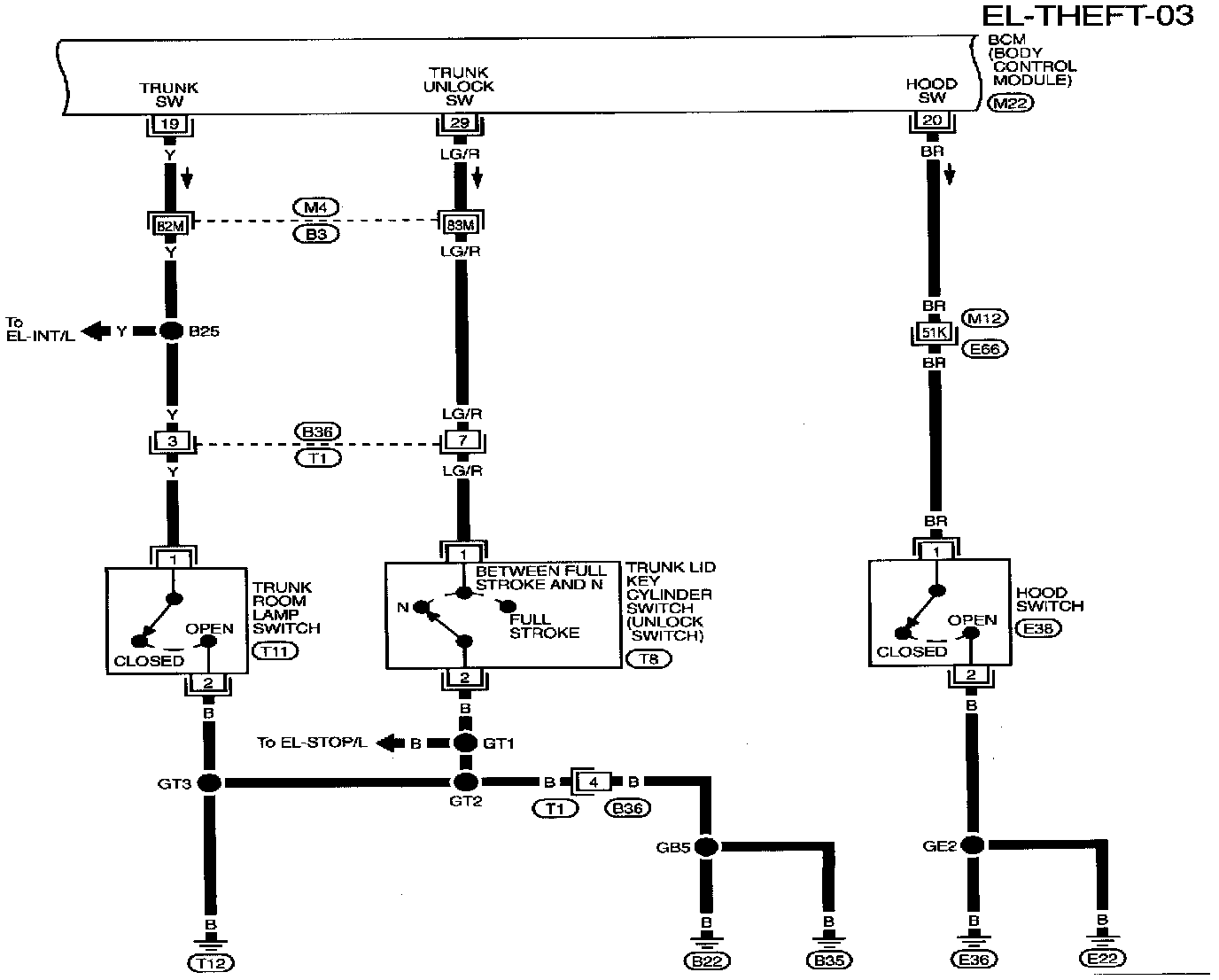

(Part 3 of 8)
Body Control Module
Hood Switch
Trunk Lid Key Cylinder Switch
Trunk Room Lamp Switch




(Part 4 of 8)
Battery
Driver's Door Control Unit
Front Door Key Cylinder Switch
Front Door Lock Actuator
Joint Connector 4, 11, 12




(Part 5 of 8)
Front Door Key Cylinder Switch
Front Door Lock Actuator
Joint Connector 11
Passenger Door Control Unit




(Part 6 of 8)
Joint Connector 12, 17
Rear Door Lock Actuator
Rear Door Control Unit

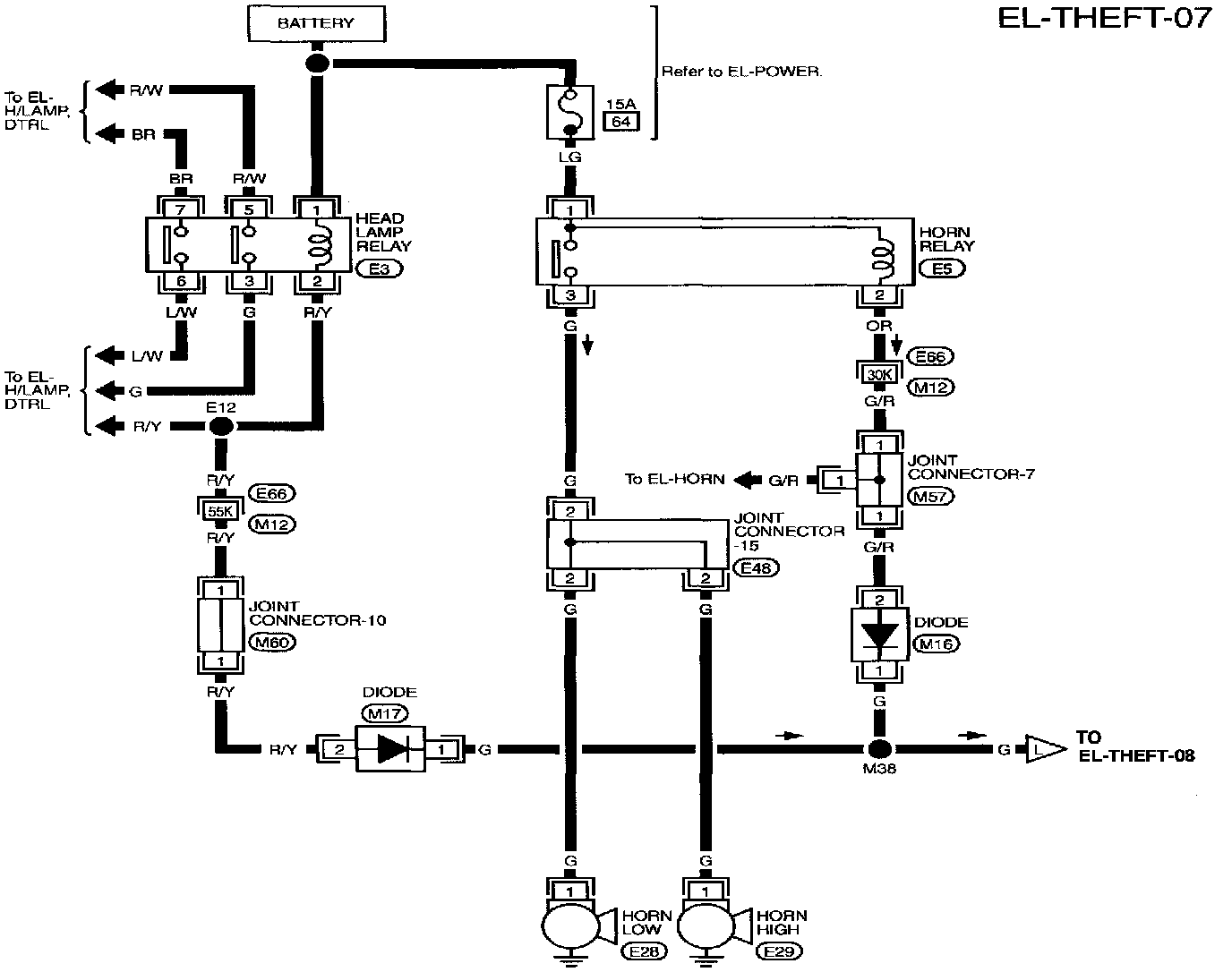

(Part 7 of 8)
Battery
Diode
Head Lamp Relay
Horn Relay
Joint Connector 7, 10, 15

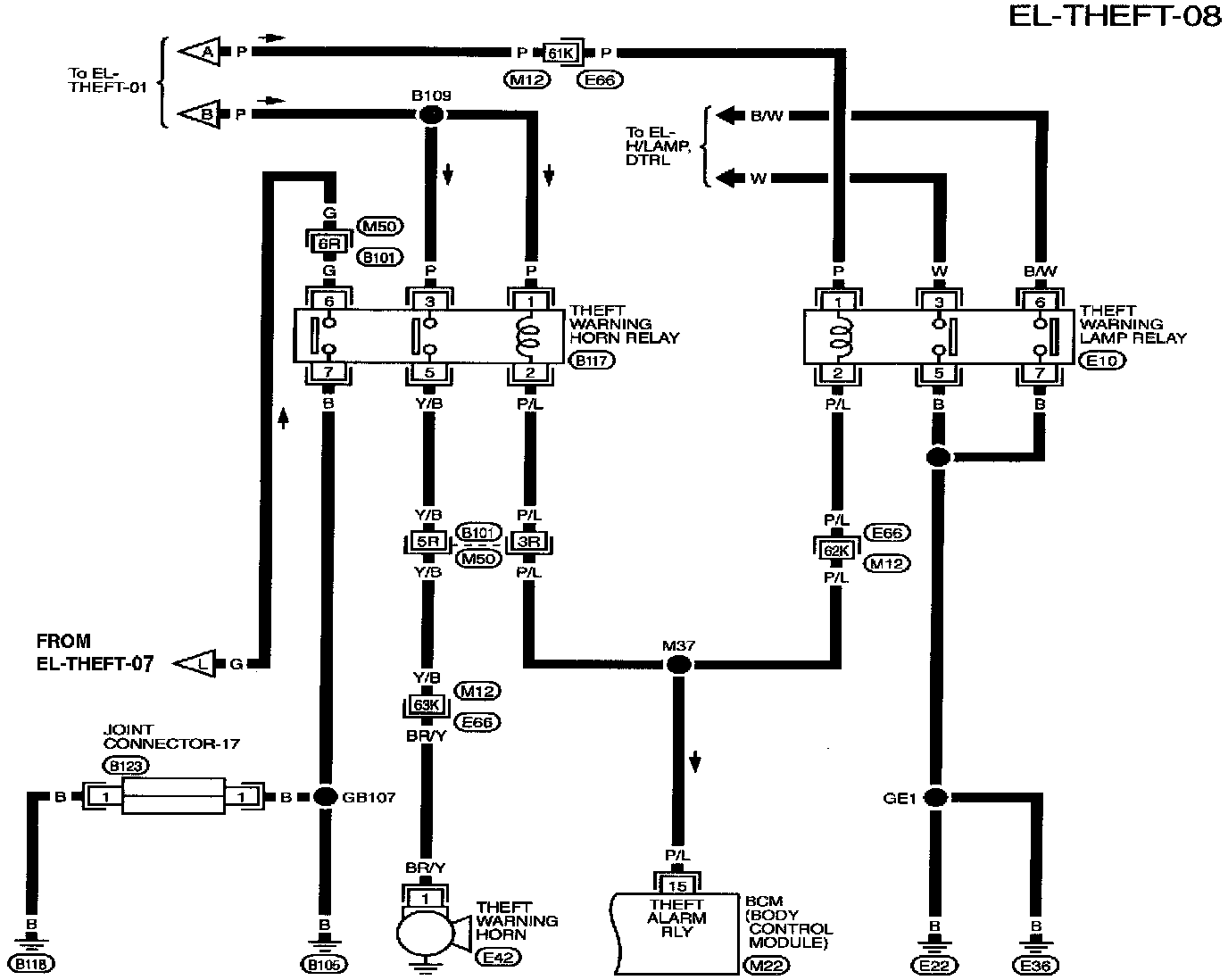

(Part 8 of 8)
Body Control Module
Joint Connector 17
Theft Warning Lamp Relay
Theft Warning Horn Relay

Circuit Diagrams


























Circuit Connectors

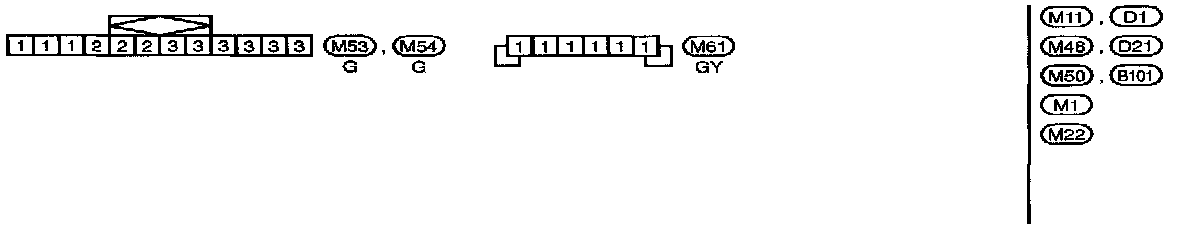

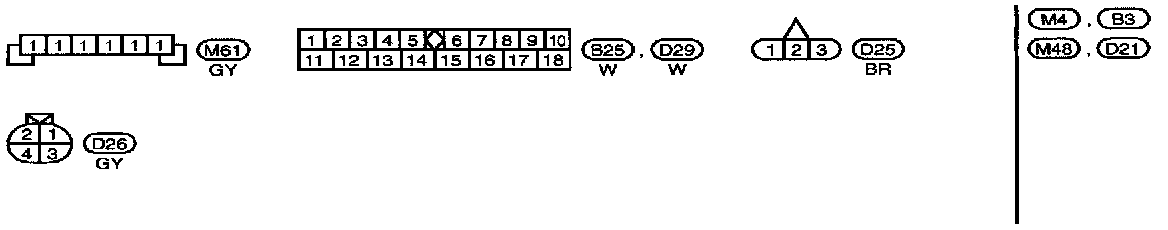

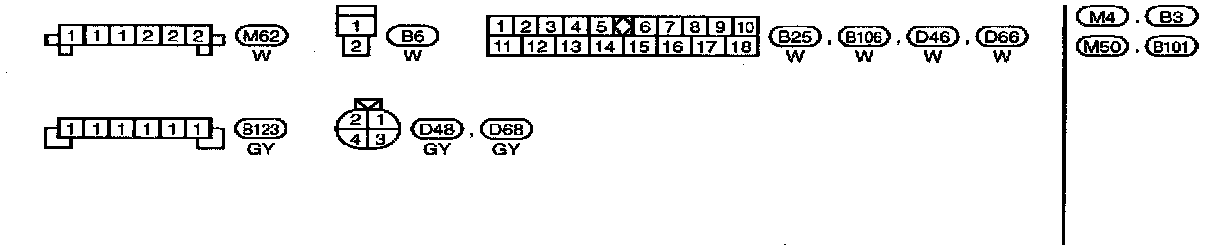

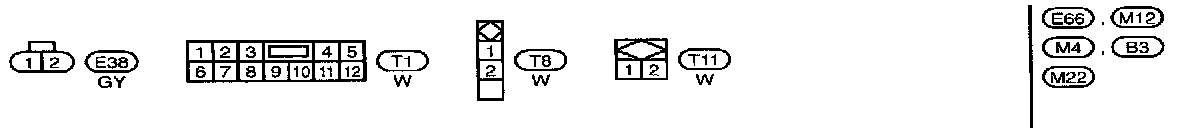

B3, D1, D21, E66, M4, M6, M11, M12, M48, N1 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





M22 - Electrical Units - Terminal Arrangement





B101, M50 - Super Multiple Junction - Terminal Arrangement





M1 - Fuse Block Junction Box - Terminal Arrangement
