Backup Lamp Switch

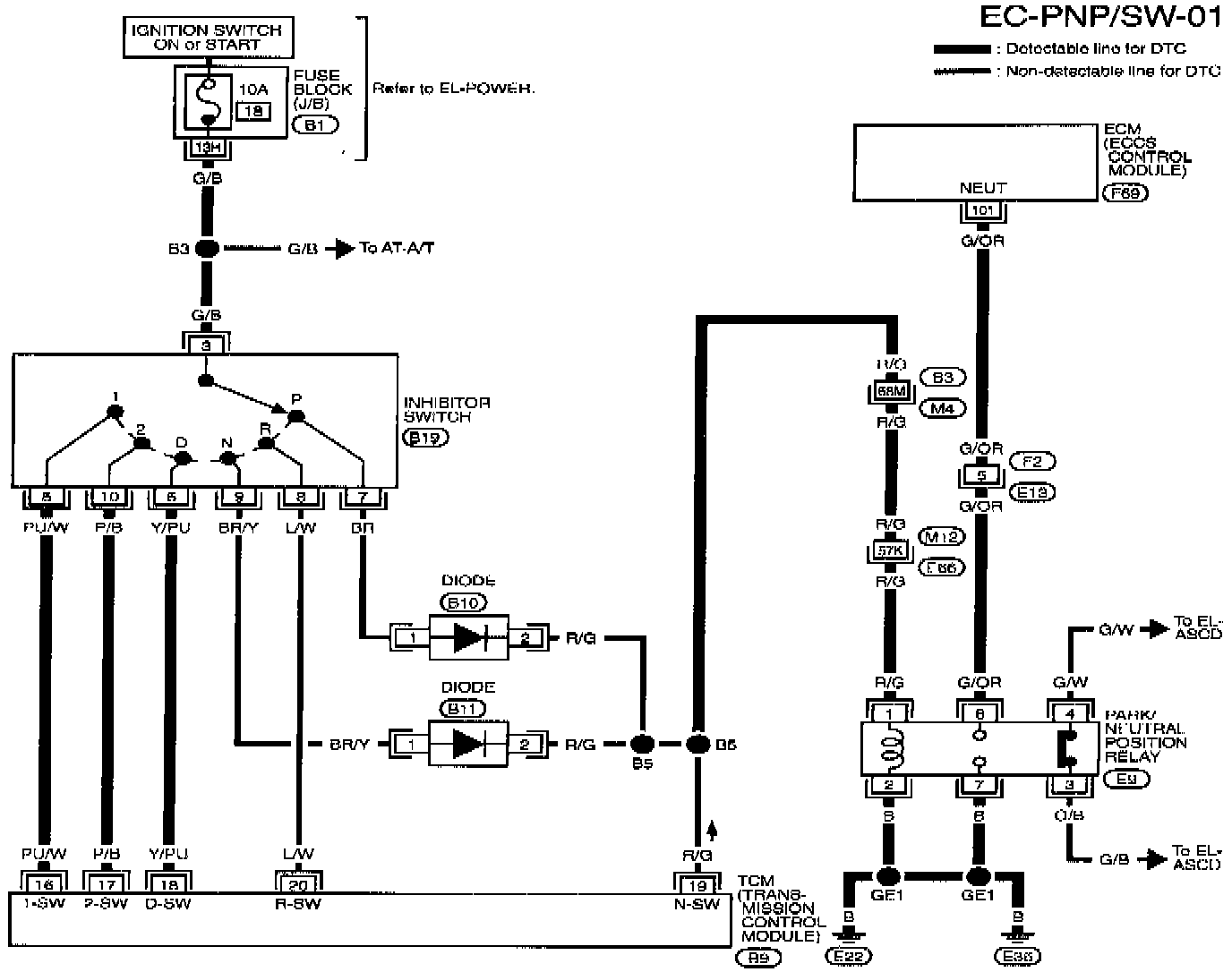

Circuit Diagrams

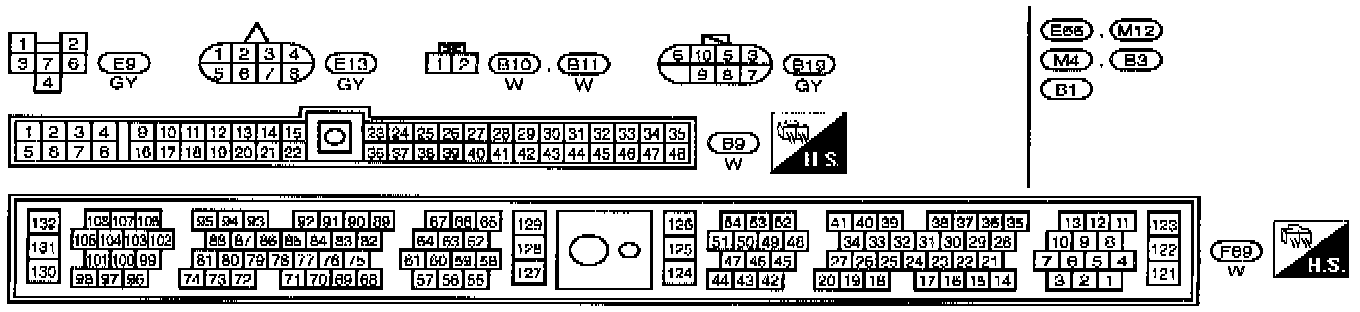

Circuit Connectors





B3, E66, M4, M12 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





B1 - Fuse Block Junction Box - Terminal Arrangement
