Fuel Door

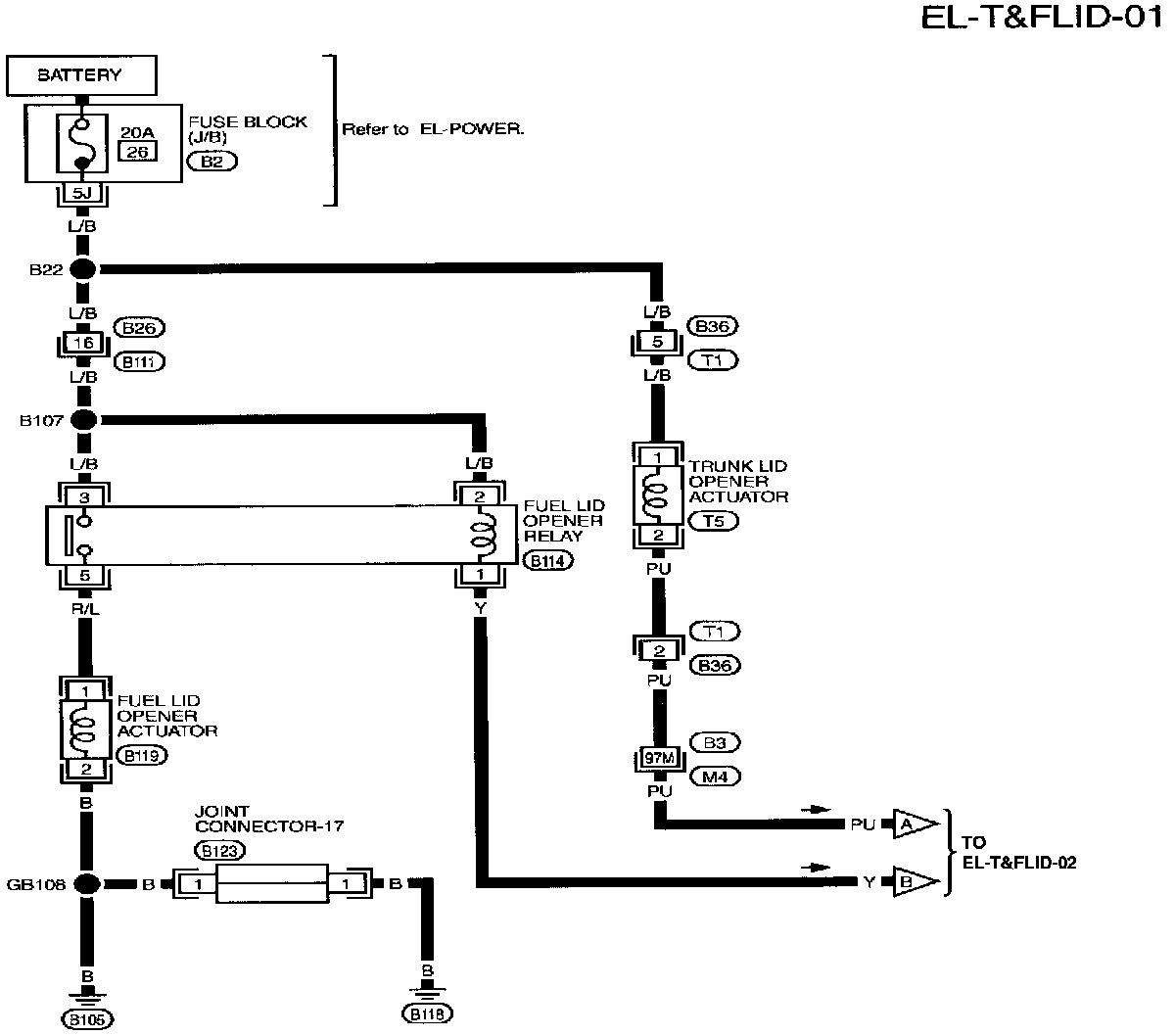

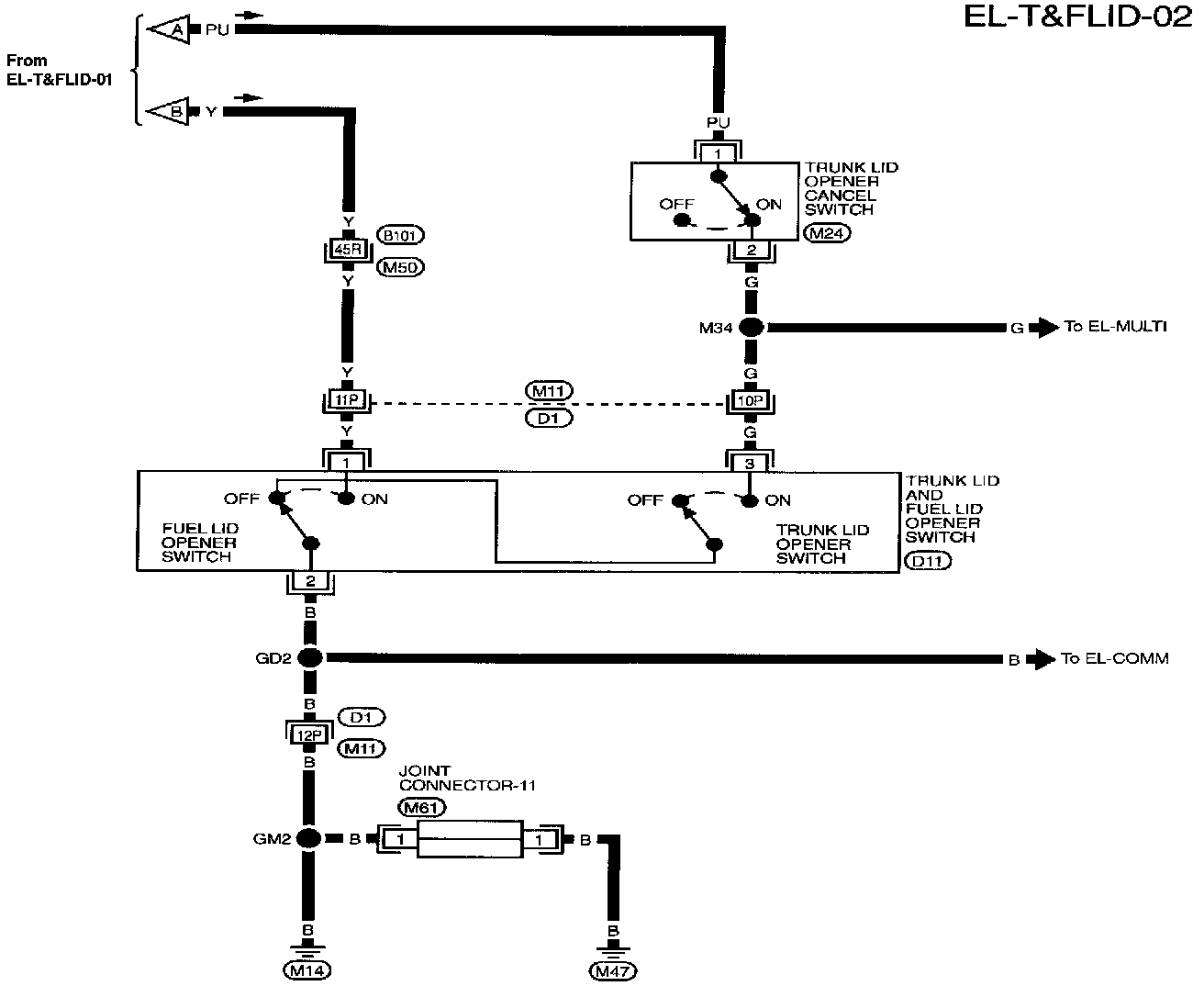

Circuit Diagrams

Circuit Connectors

B3, D1, M4, M11 - Body, Engine, Instrument, Main Harness - Terminal Arrangement

B101, M50 - Super Multiple Junction - Terminal Arrangement

B2 - Fuse Block Junction Box - Terminal Arrangement
