Keyless Entry

Schematic

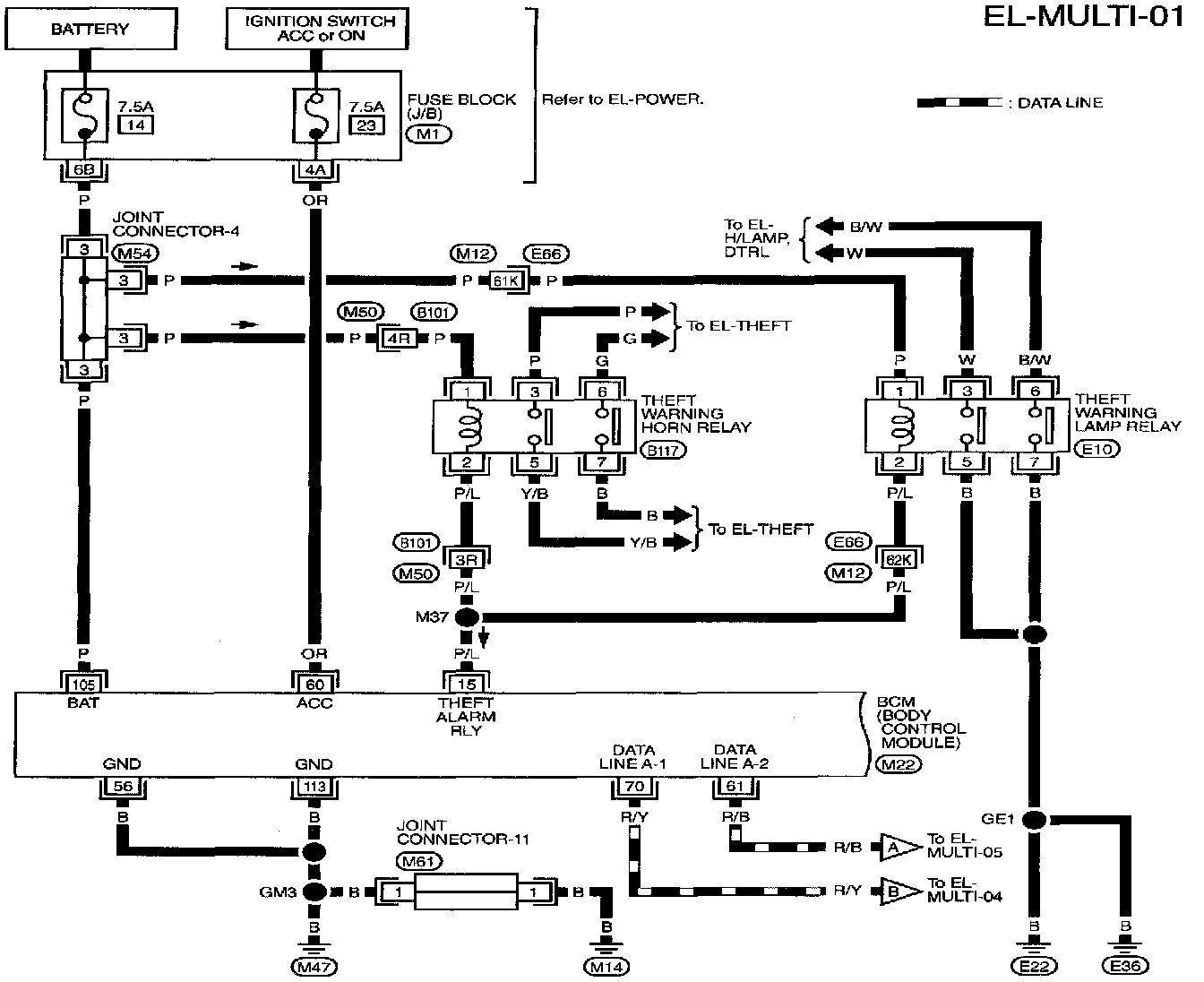

(Part 1 of 6)
Battery
Body Control Module
Fuse Block (J/B)
Joint Connector 4, 11
Theft Warning Horn Relay
Theft Warning Lamp Relay

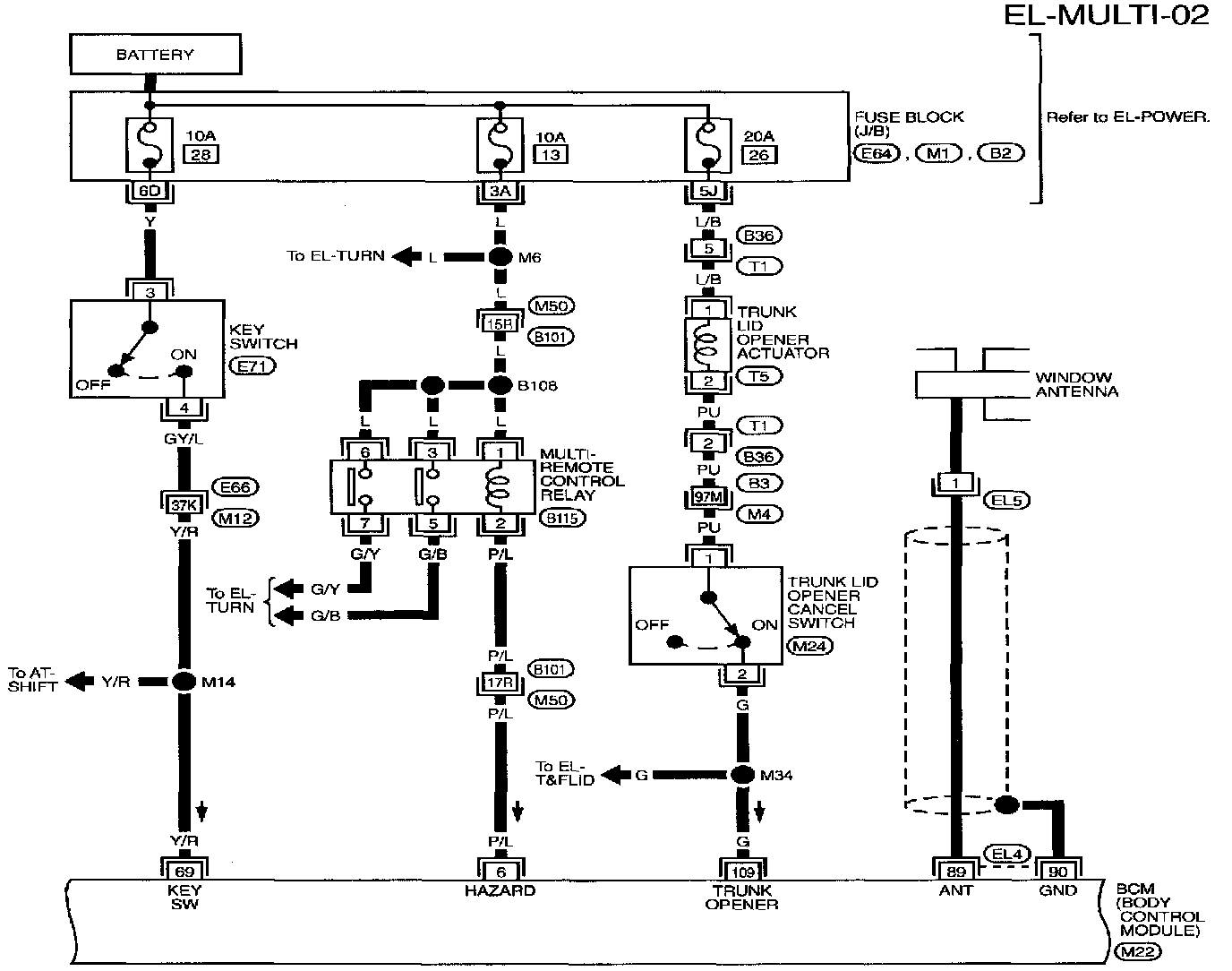

(Part 2 of 6)
Battery
Body Control Module
Fuse Block (J/B)
Key Switch
Multi-Remote Control Relay
Trunk Lid Opener Actuator
Trunk Lid Opener Cancel Switch
Window Antenna




(Part 3 of 6)
Body Control Module
Front Door Switch
Joint Connector 17
Rear Door Switch

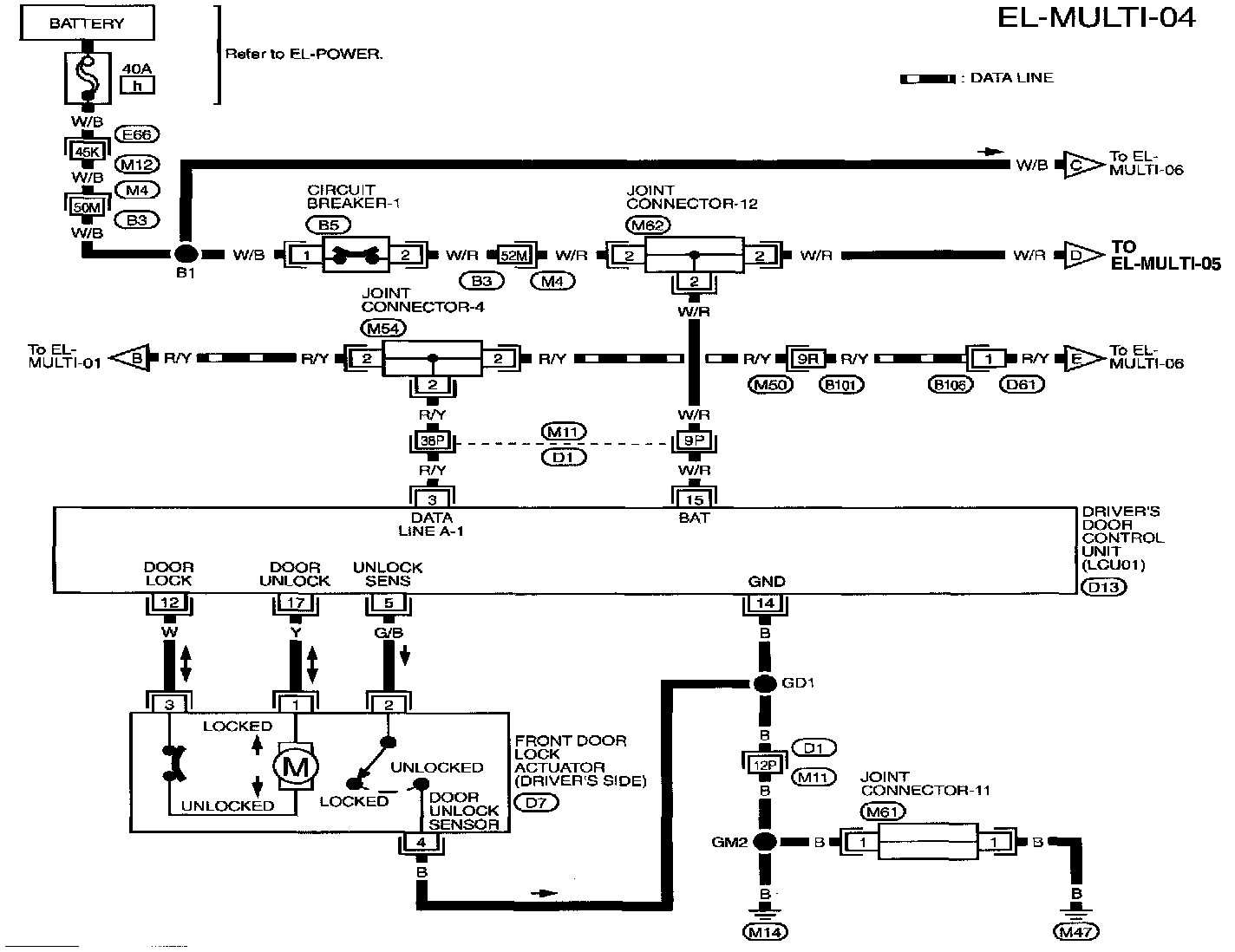

(Part 4 of 6)
Battery
Driver's Door Control Unit
Front Door Lock Actuator
Joint Connector 1, 4, 11, 12

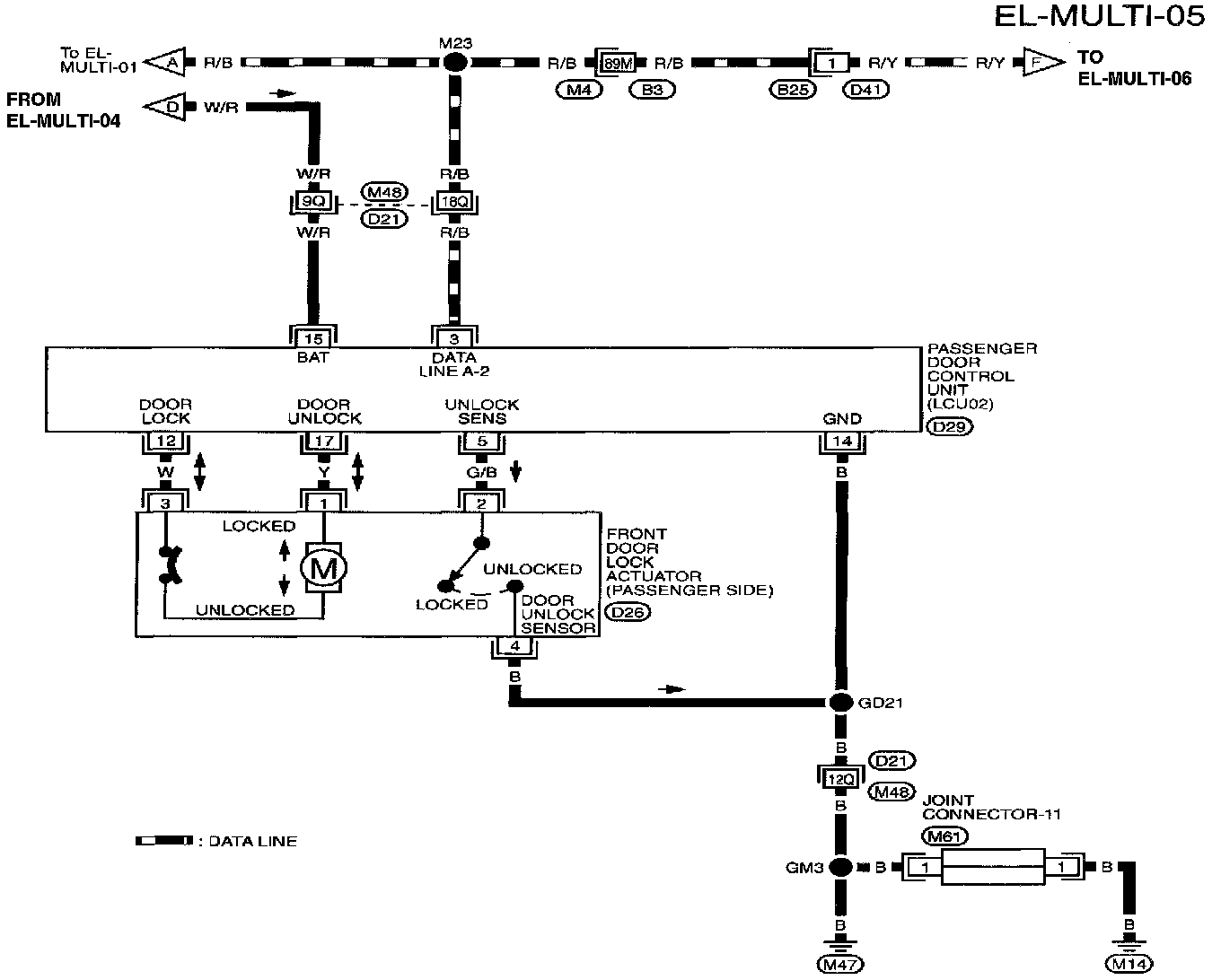

(Part 5 of 6)
Front Door Lock Actuator
Joint Connector 11
Passenger Door Control Unit




(Part 6 of 6)
Joint Connector 12, 17
Rear Door Lock Actuator
Rear Door Control Unit





















Circuit Connectors





B3, D1, D21, E66, M4, M11, M12, M48 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





M22 - Electrical Units - Terminal Arrangement





B101, M50 - Super Multiple Junction - Terminal Arrangement





B2, E64, M1 - Fuse Block Junction Box - Terminal Arrangement
