Power Locks

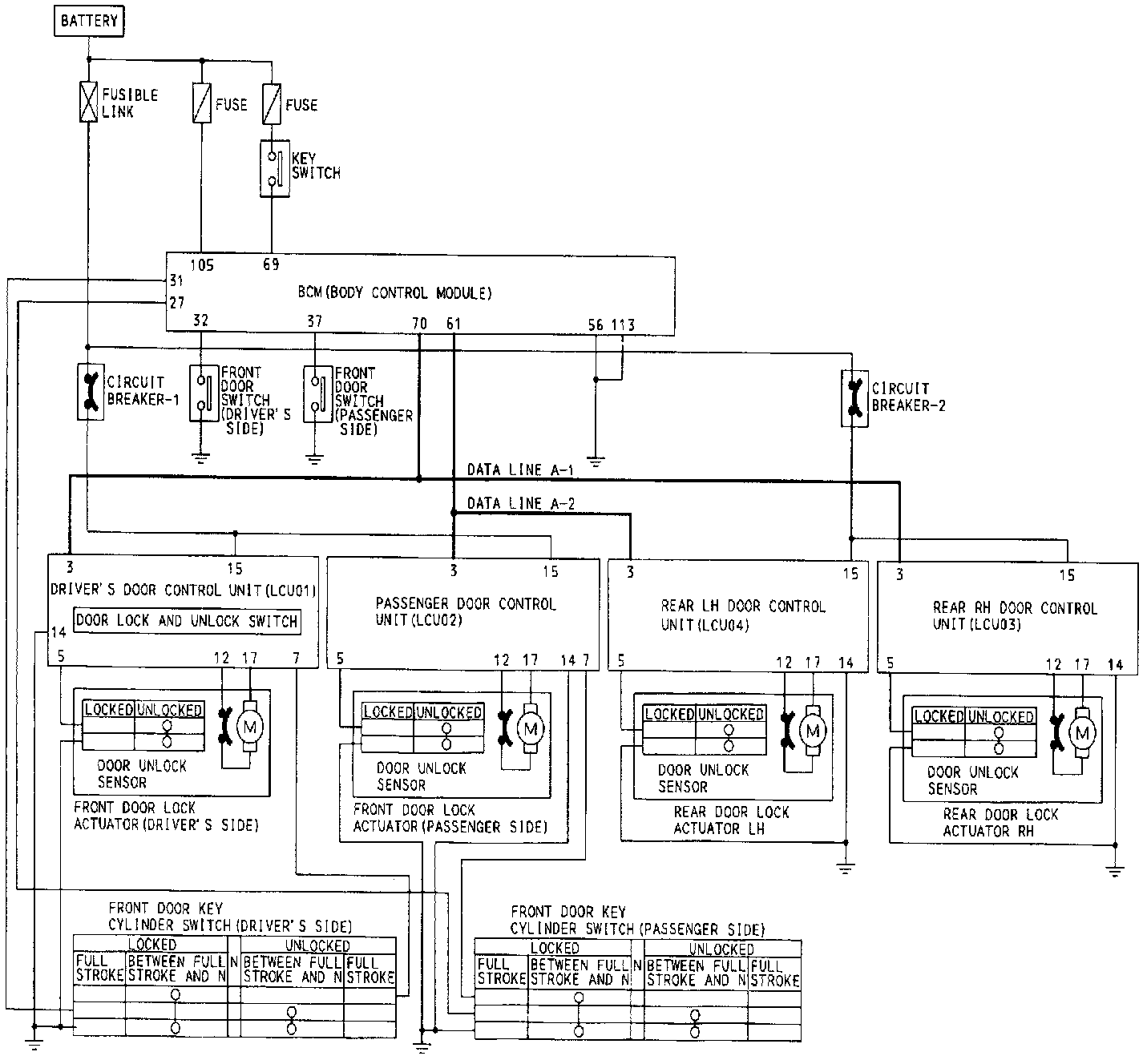

Schematic

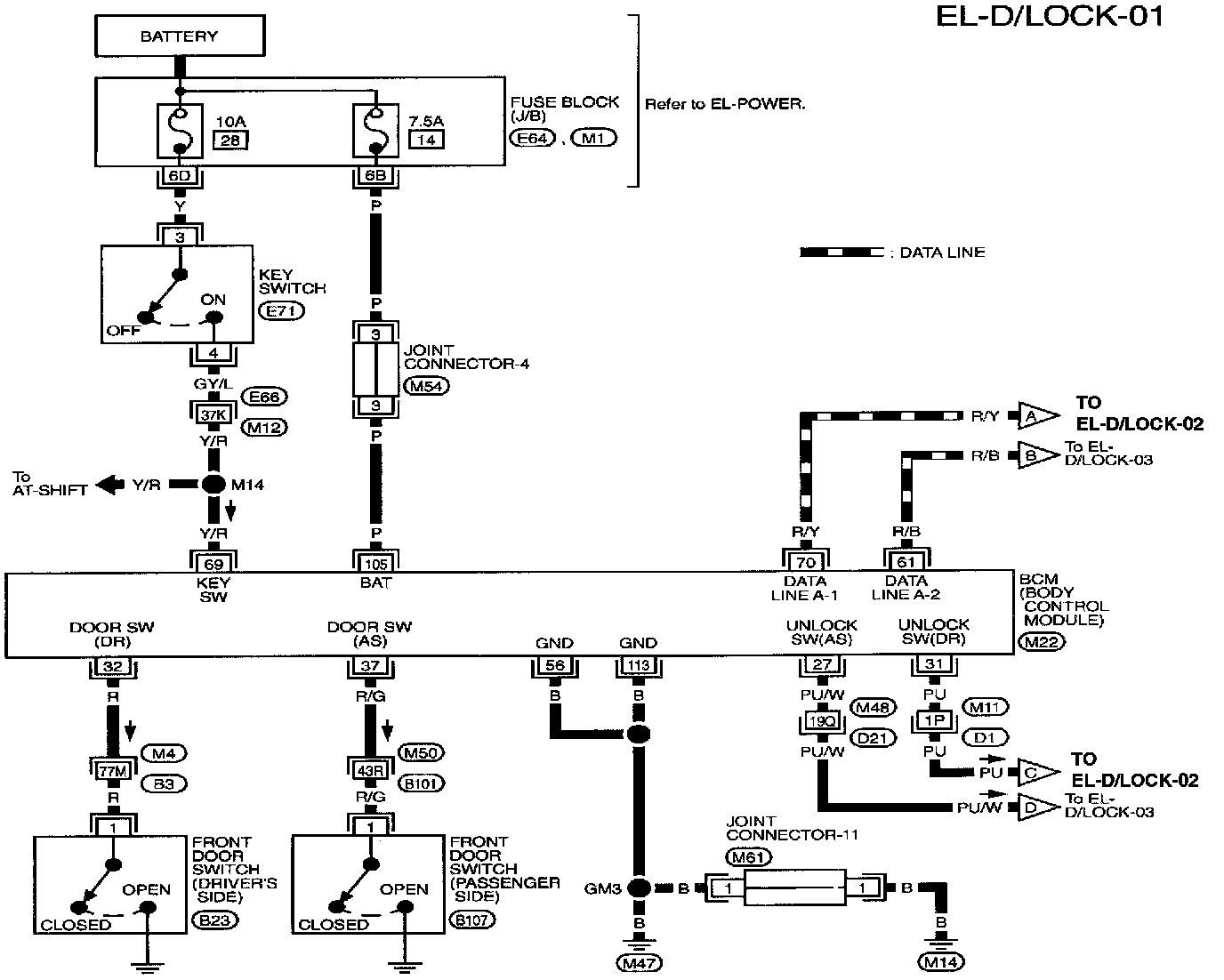

(Part 1 of 4)
Battery
Body Control Module
Front Door Switch
Fuse Block (J/B)
Joint Connector 4, 11

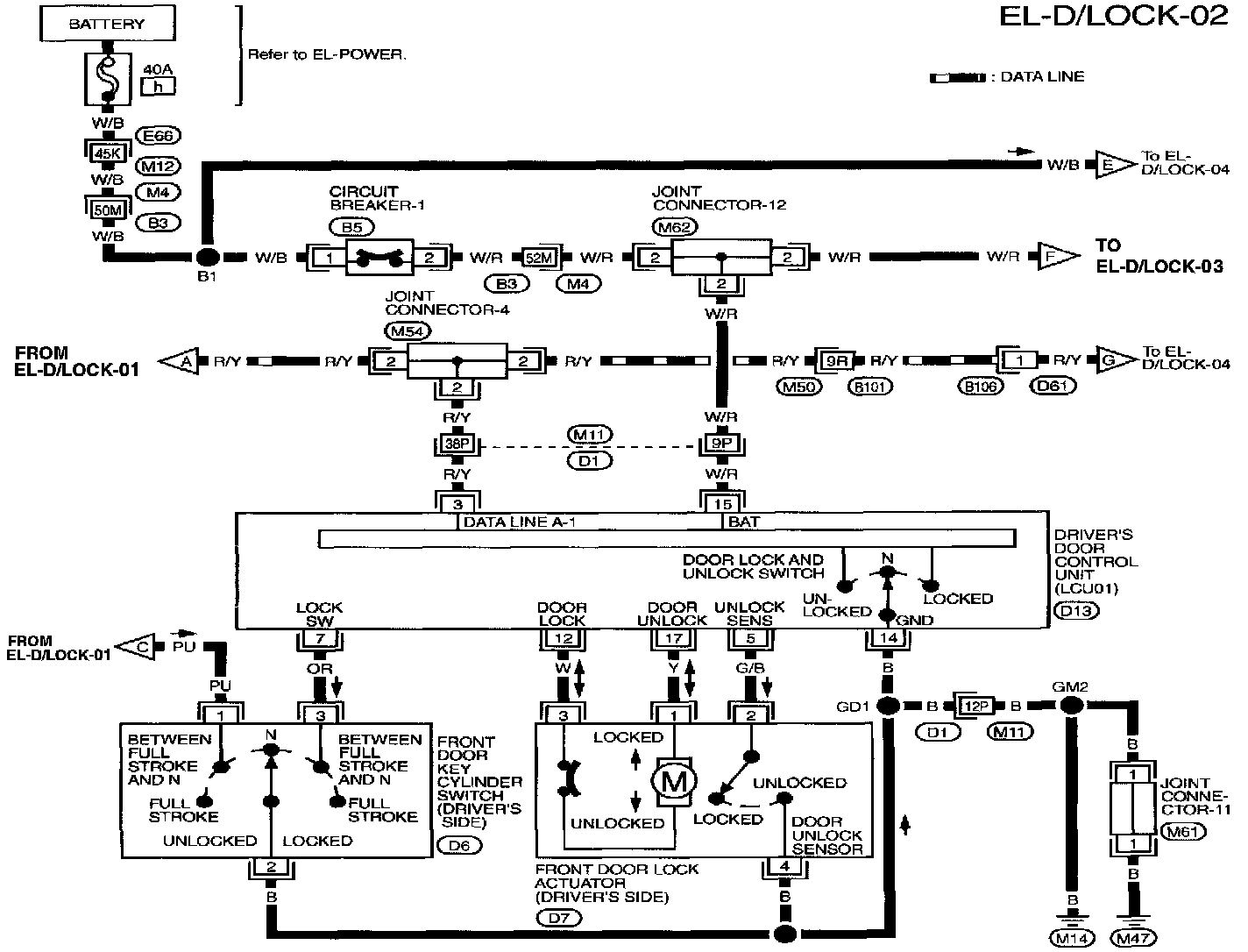

(Part 2 of 4)
Battery
Driver's Door Control Unit
Front Door Key Cylinder Switch
Front Door Lock Actuator
Joint Connector 1, 4, 11, 12




(Part 3 of 4)
Front Door Key Cylinder Switch
Front Door Lock Actuator
Joint Connector 11
Passenger Door Control Unit




(Part 4 of 4)
Joint Connector 12, 17
Rear Door Control Unit
Rear Door Lock Actuator

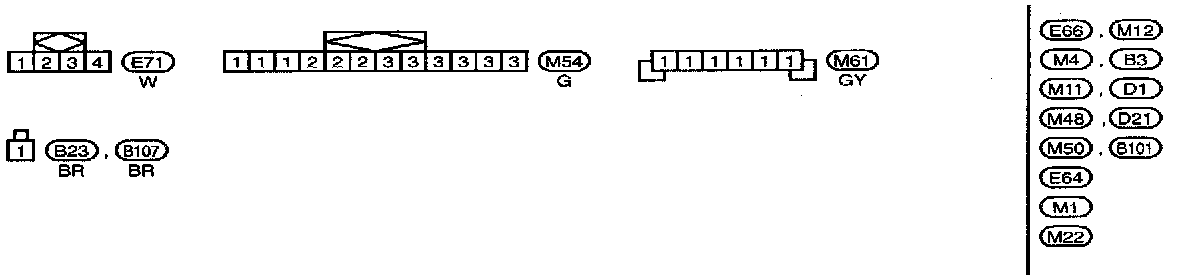

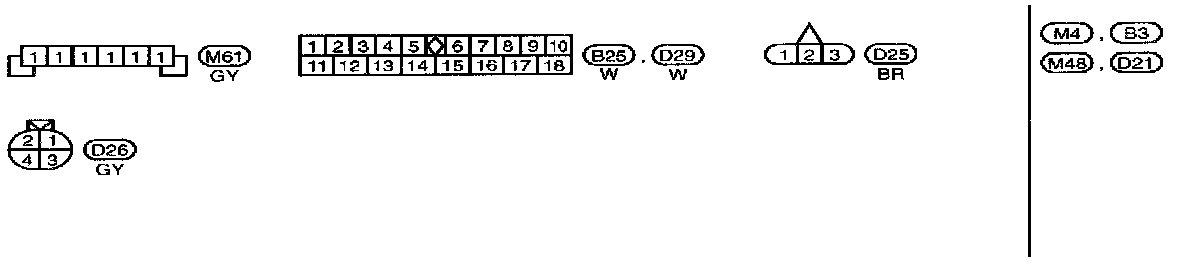

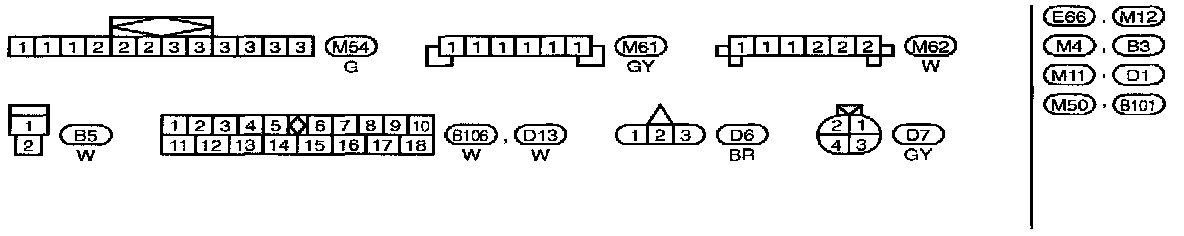

Circuit Connectors





B3, D1, D21, E66, M4, M11, M12, M48 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





M22 - Electrical Units - Terminal Arrangement





B101, M50 - Super Multiple Junction - Terminal Arrangement





E64, M1 - Fuse Block Junction Box - Terminal Arrangement
