System Diagram

Schematic








(Part 1 of 4)
Body Control Module
Data Link Connector
Fuse Block (J/B)
Joint Connector 2, 3, 4, 8, 11




(Part 2 of 4)
Battery
Driver's Door Control Unit
Joint Connector 4, 11, 12
Passenger Door Control Unit




(Part 3 of 4)
Circuit Breaker
Joint Connector 12, 17
Rear Door Control Unit

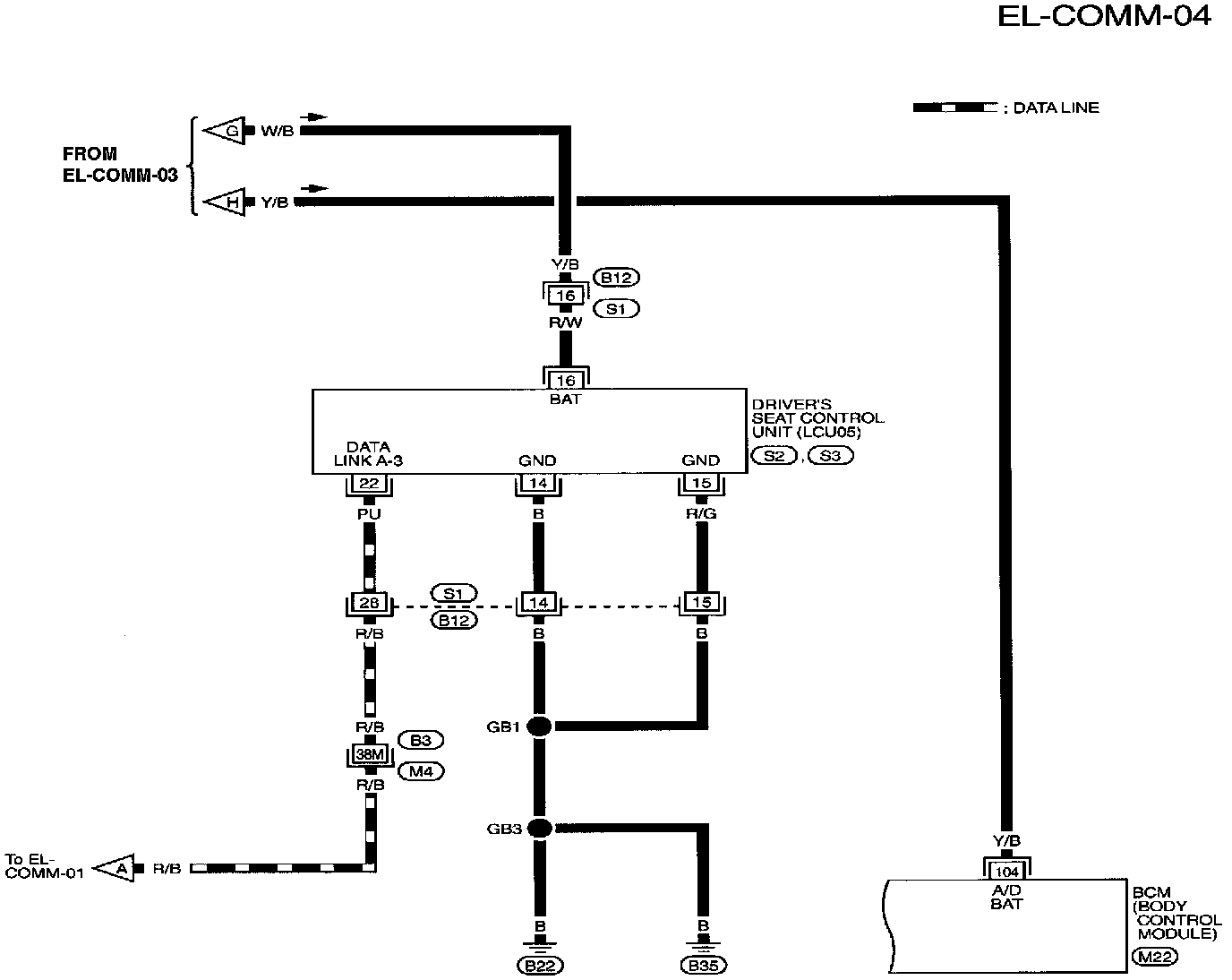

(Part 1 of 4)
Body Control Module
Driver's Seat Control Unit















Circuit Connectors





B3, D1, D21, E66, M4, M11, M12, M48 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





M22 - Electrical Units - Terminal Arrangement





B101, M50 - Super Multiple Junction - Terminal Arrangement





M1 - Fuse Block Junction Box - Terminal Arrangement
