Cruise Control

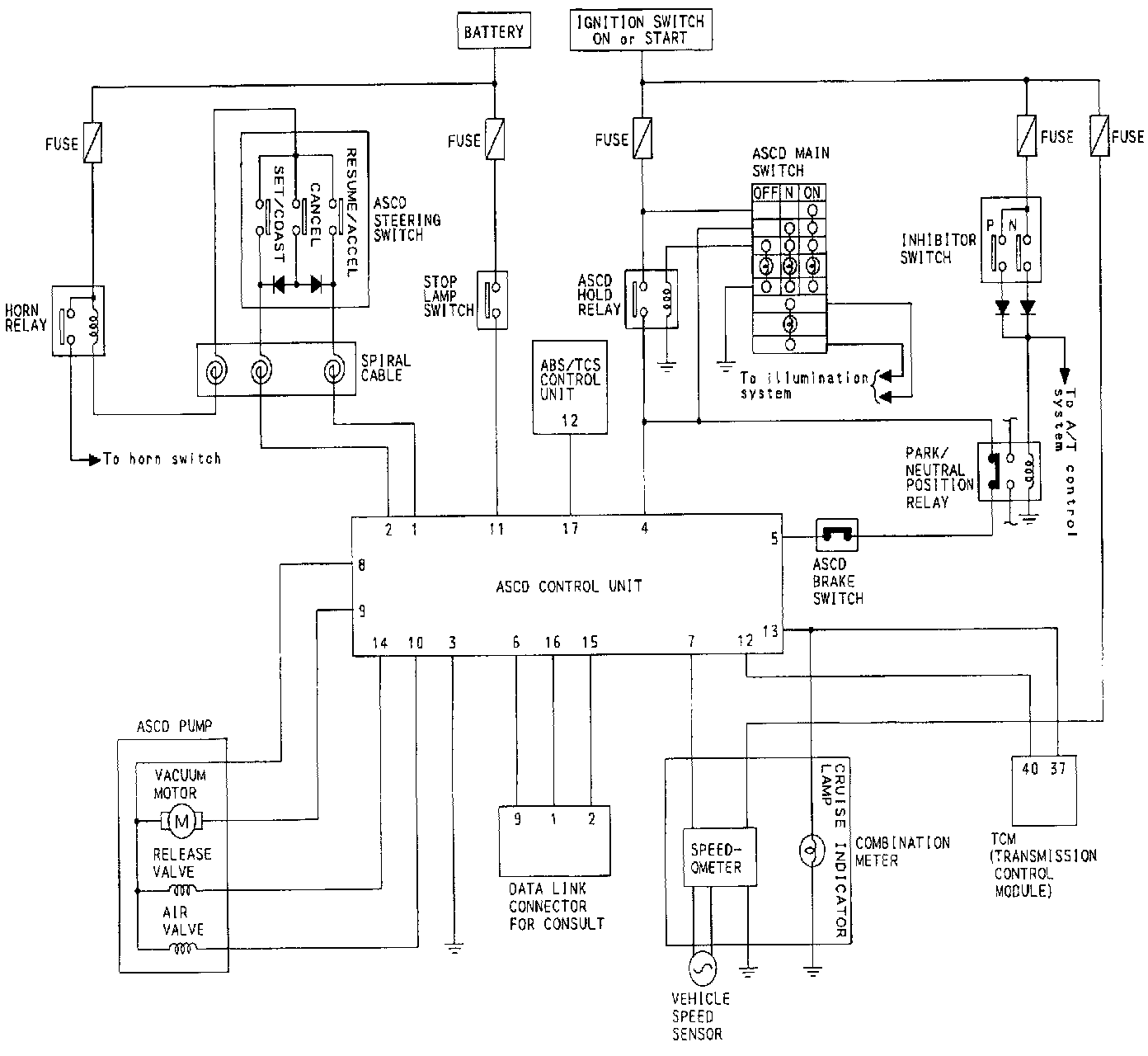

Schematic





(Part 1 of 5)

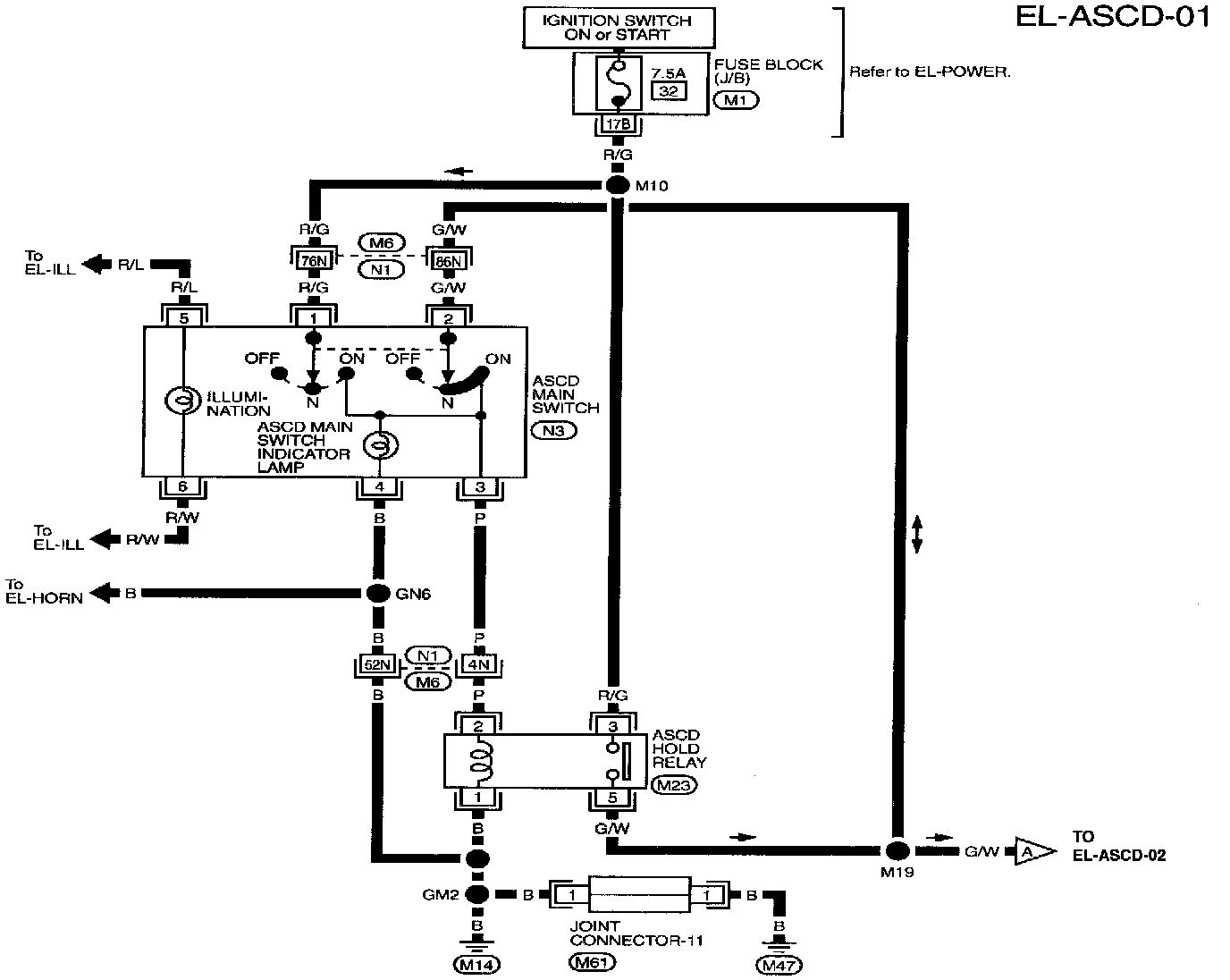

ASCD Hold Relay
ASCD Main Relay
Fuse Block (J/B)
Joint Connector 11




(Part 2 of 5)
ASCD Brake Switch
ASCD Control Unit
Diode
Fuse Block (J/B)
Inhibitor Switch
Park/Neutral Position Relay




(Part 3 of 5)
ASCD Control Unit
ASCD Steering Switch
Battery
Fuse Block (J/B)
Horn Relay
Joint Connector 1, 7
Spiral Cable
Stop Lamp Switch




(Part 4 of 5)
ABS/TCS Control Unit
ASCD Control Unit

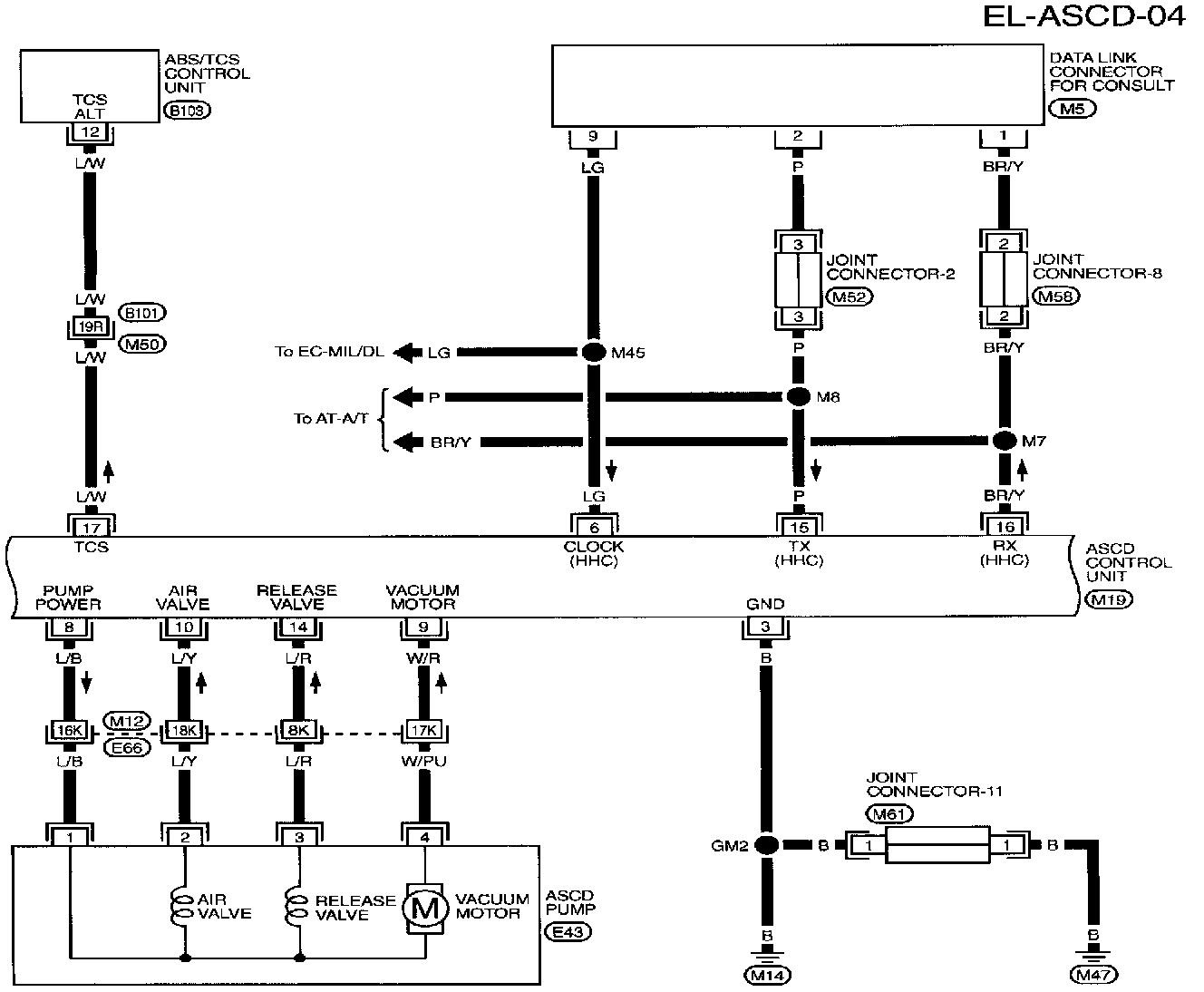

ASCD Pump
Data Link Connector
Joint Connector 2, 8, 11




(Part 5 of 5)
ASCD Control Unit
Combination Meter
Fuse Block (J/B)
Joint Connector 11
Transmission Control Module

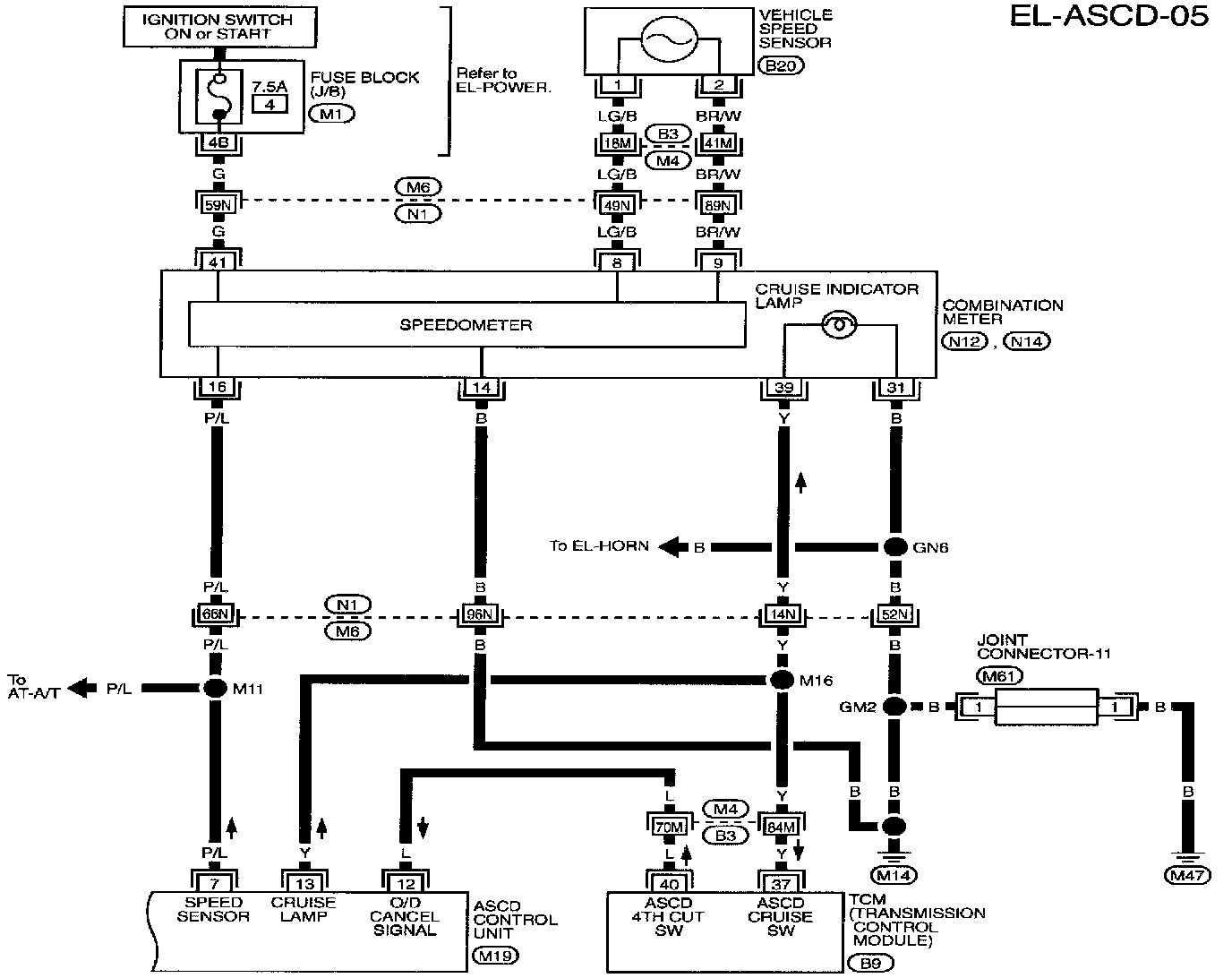

Vehicle Speed Sensor


















Circuit Connectors





B3, E66, M4, M6, M12, N1 - Body, Engine, Instrument, Main Harness - Terminal Arrangement





B9, B103 - Electrical Units - Terminal Arrangement





B101, M50 - Super Multiple Junction - Terminal Arrangement





B1, M1 - Fuse Block Junction Box - Terminal Arrangement
